Barite milling line for Saudi Arabia wells

Introduction

The oil and gas industry in Saudi Arabia, one of the world’s largest crude oil producers, relies heavily on high-quality drilling fluids to ensure safe and efficient well operations. Barite (barium sulfate, BaSO₄) is the most commonly used weighting agent in drilling muds, increasing the fluid density to counteract formation pressures and prevent blowouts. With Saudi Arabia’s ambitious Vision 2030 plan and sustained exploration activities, the demand for reliable barite powder with consistent fineness (typically 200–325 mesh, or 0.074–0.045 mm) has never been higher. Establishing a dedicated barite milling line that delivers high throughput, energy efficiency, and operational stability is critical for local and international drilling service companies operating in the Kingdom.

Challenges in Barite Processing for Well Applications

Barite ore, often with a Mohs hardness of 3–3.5 and high specific gravity of 4.2–4.5, presents unique milling challenges. Traditional grinding mills may suffer from rapid wear due to the abrasive nature of barite, high power consumption, and difficulty in achieving the required particle size distribution. Moreover, the arid climate and remote wellsite locations in Saudi Arabia demand equipment that is robust, easy to maintain, and capable of handling variable feed sizes (up to 50 mm). Dust control, low noise levels, and minimal footprint are also essential to comply with environmental regulations and site constraints.

Why Choose Shanghai Zenith Machinery Co., Ltd.?

Shanghai Zenith Machinery Co., Ltd. is a leading Chinese manufacturer specializing in ore grinding equipment, with extensive expertise in ultra-fine powder processing. The company’s research and development efforts have yielded state-of-the-art mills that combine crushing, grinding, classifying, and drying functions into compact, high-efficiency systems. With a proven track record in over 100 countries, Zenith offers tailored solutions for barite milling lines that meet the exacting standards of the oil well industry.

Recommended Products for Saudi Arabia Barite Milling

Based on the specific requirements of barite grinding for well applications, two Zenith mill models stand out for their performance, reliability, and cost-effectiveness:

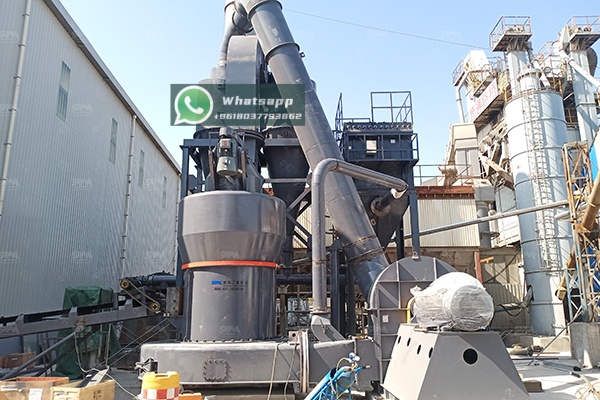

1. MTW Trapezium Grinding Mill

The MTW series is a patented trapezium mill known for its compact structure, long service life, and eco-friendly design. It can process barite with a maximum feed size of 50 mm and produce a final product as fine as 0.038 mm (400 mesh). Key parameters for recommended models include:

• MTW175G: Max feed 40 mm, capacity 9.5–25 t/h, main motor 160 kW, fan motor 200 kW.
• MTW215G: Max feed 50 mm, capacity 15–45 t/h, main motor 280 kW, fan motor 315 kW.

The trapezium-shaped grinding rollers and ring increase grinding efficiency and reduce energy consumption. For a typical Saudi barite milling line requiring a throughput of 15–20 t/h at 200 mesh, the MTW215G offers an ideal balance of capacity and fineness. Its enclosed system minimizes dust emission, making it suitable for desert environments.

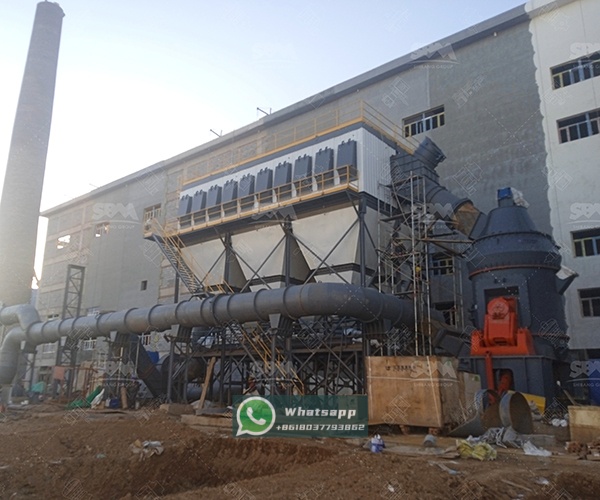

2. LM Vertical Grinding Mill

The LM vertical mill integrates crushing, grinding, drying, classifying, and material conveying into a single unit, occupying minimal space. It is especially advantageous for large-capacity barite processing (e.g., 30–50 t/h) and can handle feed sizes up to 50 mm. Recommended model for barite:

• LM280K: Plate diameter 2800 mm, capacity 50–170 t/h, output fineness 170–45 μm, main motor 1250 kW.

For smaller operations, the LM190K (capacity 23–68 t/h) is a practical choice. The vertical mill design ensures uniform particle size distribution, low operating noise, and easy maintenance. Its built-in classifier allows precise adjustment of final fineness, which is critical for drilling mud quality.

Integrated Barite Milling Line Design

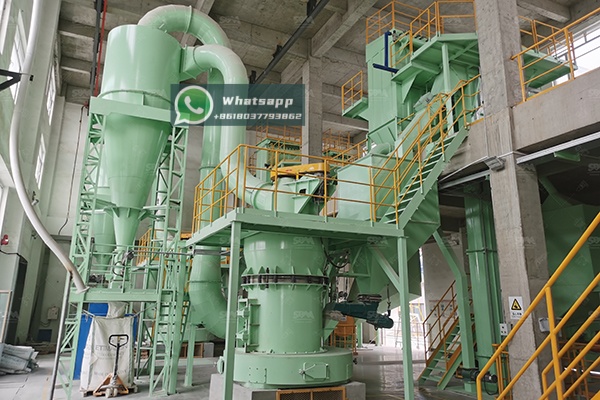

A complete barite milling line from Zenith typically includes a jaw crusher for primary crushing, a bucket elevator, a vibrating feeder, the grinding mill (MTW or LM series), a bag filter for dust collection, a screw conveyor or pneumatic system for finished powder transport, and a control panel. For Saudi Arabia wells, we recommend the following configuration:

• Primary crushing: Jaw crusher (PE-600×900) to reduce run-of-mine barite to <50 mm.
• Grinding: MTW215G or LM190K mill with integrated classifier.
• Dust collection: High-efficiency pulse bag filter to meet environmental standards.
• Storage: Silo with moisture-proof design to prevent caking in humid conditions.

This line can produce barite powder with a specific gravity of 4.2 g/cm³ and a residue on 200 mesh less than 3%, complying with API 13A specifications. The total power consumption is optimized through the use of variable-frequency drives and efficient motors.

Operational Advantages for Saudi Arabia

Zenith’s mills are engineered for durability in harsh environments. Key benefits for Saudi well operators include:

• High wear resistance: Grinding parts made of high-chromium alloy ensure long life when grinding abrasive barite.
• Low maintenance: Automatic lubrication system and easy-access doors reduce downtime.
• Energy savings: Up to 30% lower power consumption compared to traditional ball mills, reducing operational costs.
• Remote monitoring: Optional PLC control supports remote operation and data logging, ideal for unmanned desert sites.

Furthermore, Zenith provides on-site installation supervision and training for local operators, ensuring a smooth commissioning process.

Conclusion

Establishing a reliable barite milling line for Saudi Arabia wells is a strategic investment that directly impacts drilling efficiency and safety. Shanghai Zenith Machinery Co., Ltd. offers world-class grinding solutions, with the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill being the top choices for barite powder production. Backed by comprehensive technical support and a proven track record, Zenith is the partner of choice for oil and gas companies seeking high-quality, cost-effective milling equipment. For a tailored proposal and detailed quotation, contact Zenith’s team today.
