Phosphate milling line for Egypt agricultural use

Introduction

Egypt’s agricultural sector heavily relies on phosphate-based fertilizers to enhance crop yields in its arid and semi-arid regions. With vast phosphate rock reserves located in the Western Desert and along the Red Sea coast, the country has become a global player in phosphate production. However, to meet the specific demands of agricultural applications—such as direct application as a soil conditioner or as a raw material for granular fertilizers—phosphate rock must be ground into a fine powder with controlled particle size distribution. This article presents a comprehensive phosphate milling line designed for Egyptian agricultural use, highlighting key equipment from Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding machinery.

Understanding Phosphate Rock and Agricultural Requirements

Phosphate rock (apatite) typically contains 25–35% P₂O₅, but its effectiveness as a fertilizer depends on its reactivity and fineness. For direct application, the rock must be ground to at least 80% passing 100 mesh (150 μm) or finer, with some formulations requiring 200–325 mesh. The moisture content should be below 6% to prevent clogging and ensure efficient grinding. In Egypt, where agricultural zones demand high-quality, cost-effective fertilizers, an integrated milling line must balance throughput, energy efficiency, and final product quality.

Overview of the Phosphate Milling Line

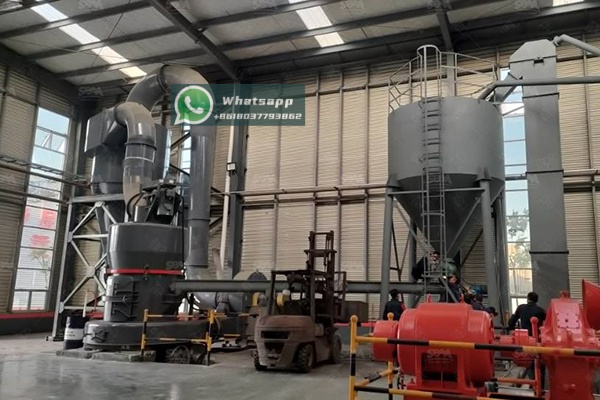

A typical phosphate milling line consists of several stages: primary crushing, secondary crushing, grinding, classification, and storage. Below is a recommended configuration tailored for Egyptian conditions, utilizing Shanghai Zenith’s advanced grinding mills.

Stage 1: Primary and Secondary Crushing

Run-of-mine phosphate ore (up to 600 mm) is first reduced to <50 mm using jaw crushers and cone crushers. Zenith offers robust crushers, but this article focuses on the grinding section. After crushing, the material is conveyed to a silo for temporary storage.

Stage 2: Grinding – The Core of the Line

For agricultural phosphate, two proven grinding routes are available: the Ball Mill system for coarse-to-medium grinding, or the LM Vertical Grinding Mill for higher efficiency and finer products. Given Egypt’s need for reliable, low-maintenance equipment, we recommend the LM Vertical Grinding Mill for its integrated drying, grinding, and classification functions, which reduce capital cost and floor space.

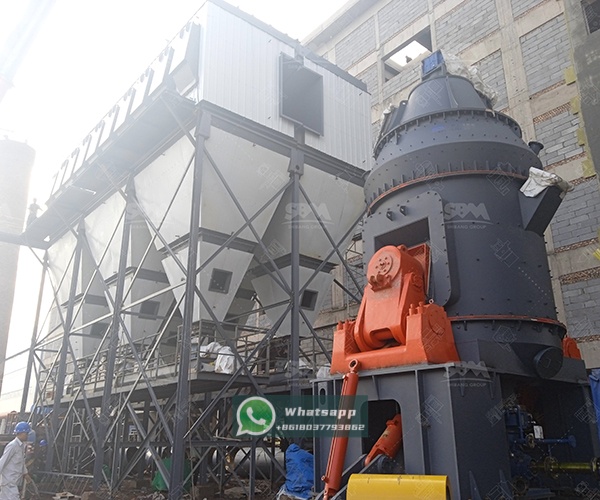

Shanghai Zenith’s LM130K Vertical Grinding Mill is an excellent choice for medium-capacity lines (10–28 t/h). It accepts feed sizes up to 38 mm and produces a final fineness of 170–40 μm (equivalent to 80–400 mesh). The mill’s hydraulic roller system ensures stable operation even with hard phosphate rock, while its built-in classifier guarantees precise particle size control. For larger capacities, the LM190K (23–68 t/h) or the LM280K (50–170 t/h) can be selected.

Alternatively, for plants requiring ultra-fine phosphate powder (e.g., for water-soluble fertilizers), the LUM Ultrafine Vertical Mill offers a product fineness of D97 < 5–30 μm. The LUM1632 model delivers 2.0–13.5 t/h, ideal for high-value agricultural phosphates. However, for standard agricultural use (80–200 mesh), the LM series is more economical.

Stage 3: Classification and Collection

Ground phosphate is separated by a high-efficiency dynamic classifier integrated into the vertical mill. Oversized particles are returned to the grinding zone, while fine powder is conveyed to a baghouse filter or cyclone collector. The collected product is then stored in silos or directly bagged for shipment.

Stage 4: Auxiliary Systems

A hot air generator may be included to dry the feed if moisture exceeds 6%. Zenith’s vertical mill can handle up to 12% moisture by utilizing hot air from the system. Additionally, a PLC control panel automates the entire line, reducing manual intervention—a crucial feature for remote locations in Egypt.

Why Choose Shanghai Zenith Machinery?

Shanghai Zenith Machinery Co., Ltd. has over 30 years of experience in grinding equipment, with a strong track record in the phosphate industry. Their mills are designed for high wear resistance, using chrome-molybdenum alloy rollers and liners that extend service life. The company’s after-sales service includes installation supervision and spare parts supply, ensuring minimal downtime.

For this application, we specifically recommend the LM130K Vertical Grinding Mill as the core grinding unit. Key advantages include:

• Energy Savings: 30–50% lower power consumption compared to ball mills.
• Compact Design: One machine replaces a ball mill + classifier + dryer system.
• Fineness Control: Quick adjustment via classifier speed, from 80 to 400 mesh.
• Low Maintenance: Automatic lubrication and easy roller replacement.

For customers requiring a more traditional but proven solution, the MTW Trapezium Grinding Mill (e.g., MTW175G, capacity 9.5–25 t/h) is also available. It features a unique trapezoidal grinding ring and roller design that improves efficiency and product fineness. The MTW series is widely used in phosphate grinding in North Africa and the Middle East.

Case Study: Hypothetical Egyptian Plant

Consider a plant in the Aswan region requiring 20 t/h of phosphate powder (80% passing 100 mesh). Using a single LM190K Vertical Mill (plate diameter 1900 mm, main motor 500 kW), the line would include a primary jaw crusher, a vibrating feeder, the LM mill, a bag filter, and a product silo. Total installed power: ~800 kW. Annual output: 160,000 tons of fertilizer-grade phosphate. The investment payback period is typically 2–3 years due to low operating costs.

Conclusion

Egypt’s agricultural future depends on efficient phosphate processing. A well-designed milling line using Shanghai Zenith’s advanced grinding mills ensures high yield, low energy consumption, and consistent product quality. Whether choosing the LM Vertical Mill for its integrated design or the MTW Trapezium Mill for its ruggedness, Zenith provides reliable solutions backed by decades of expertise. For a detailed quotation or technical consultation, contact Shanghai Zenith Machinery Co., Ltd.
