Cement clinker grinding mill for medium size factories in Turkey

Cement Clinker Grinding Mill for Medium Size Factories in Turkey

Turkey is one of the most dynamic cement and construction materials markets in the wider region. With a strong domestic construction sector, growing infrastructure investment, and export opportunities across neighboring markets, cement producers must pay close attention to production efficiency, product quality, and operating cost. For medium size cement factories in Turkey, clinker grinding is often the most energy-intensive and cost-sensitive stage of cement manufacturing. The grinding mill selected for clinker, gypsum, and supplementary cementitious materials directly affects power consumption, product fineness, plant availability, maintenance workload, and final cement quality. This article reviews the main technical and operational considerations for selecting a cement clinker grinding mill for medium size factories in Turkey and recommends suitable equipment from Shanghai Zenith Machinery Co., Ltd.

Why Clinker Grinding Deserves Close Attention in Turkey

Cement clinker is hard, abrasive, and relatively difficult to grind. In a typical cement plant, the clinker grinding circuit consumes a large share of total electrical energy. For medium size factories, the challenge is not only to achieve the required cement fineness, usually expressed as Blaine specific surface area or residue on a specified sieve, but also to do so with stable output, low specific power consumption, and high availability. Turkish cement producers often grind different product types, including ordinary Portland cement, composite cement, and blends containing limestone, pozzolana, fly ash, or slag. This product flexibility requires a grinding system that can handle variations in feed composition, moisture, and grindability without frequent operational problems.

In addition, environmental performance and workplace safety are increasingly important. Dust collection, noise control, enclosed material handling, and reliable automation are no longer optional features; they are essential parts of a modern grinding station. A well-selected grinding mill and complete grinding circuit can reduce energy waste, improve product consistency, and simplify maintenance planning. For medium size factories, the ideal solution should balance capital investment, installed power, footprint, spare parts availability, and long-term operating cost.

Selection Criteria for a Medium Size Clinker Grinding Line

Before choosing a cement clinker grinding mill, factory owners and project engineers should define the production targets and operating conditions clearly. The following criteria are particularly important for medium size cement factories in Turkey:

1. Required capacity: The grinding line should match the factory’s clinker supply, cement demand, and market peaks. A nominal capacity range should be confirmed together with the target fineness, because capacity changes with product fineness and material grindability.
2. Product fineness and quality: Cement performance depends on particle size distribution. The mill and separator system must provide stable fineness and consistent quality for different cement types.
3. Specific power consumption: Energy cost is a major part of cement production cost. Vertical mills and efficient grinding circuits can help reduce kWh per ton of cement.
4. Material moisture and drying: Clinker may contain residual moisture, and gypsum or supplementary materials can be wetter. A grinding system with integrated drying capability can simplify the process and improve stability.
5. Footprint and layout: Medium size factories often have limited space. Compact vertical mills and optimized material flow can reduce civil works and installation time.
6. Maintenance and spare parts: Wear parts, roller and table liner life, lubrication, and access for maintenance should be considered from the beginning. A clear spare parts strategy reduces downtime.
7. Environmental compliance: Dust collection, enclosed conveyors, low-noise operation, and reliable bag filters are necessary for compliance with Turkish environmental standards.

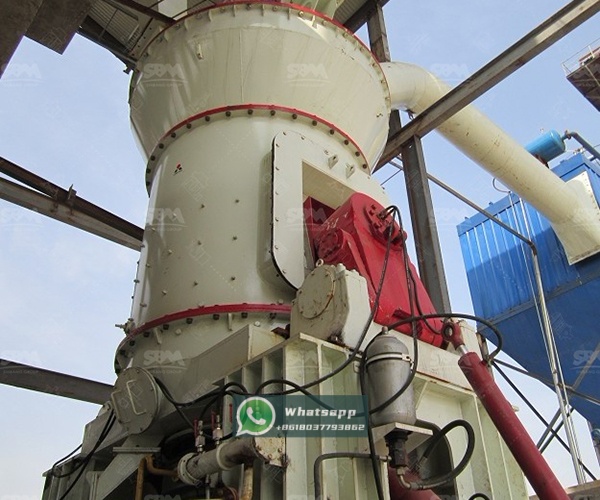

Recommended Product 1: LM Vertical Grinding Mill, Especially LM190K

Shanghai Zenith Machinery Co., Ltd. recommends the LM Vertical Grinding Mill as a strong primary solution for medium size cement clinker grinding applications in Turkey. The LM Vertical Grinding Mill integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. This integrated design offers a small occupational area, fine final powder production, and an eco-friendly production solution. For cement clinker grinding, the vertical mill can help reduce specific power consumption and provide stable product fineness when properly configured with the separator and process control system.

For medium size factories, the LM190K is a practical model to evaluate. It has a plate diameter of 1900 mm, a capacity range of 23–68 t/h, output fineness of 170–40 μm, maximum feed size below 45 mm, and a main motor of 500 kW. These parameters make it suitable for many medium scale cement grinding lines where the target capacity is in the range of tens of tons per hour, depending on final fineness, clinker grindability, and circuit design. The vertical mill layout is compact, which is beneficial for factories in Turkey that need to upgrade existing grinding stations or build new lines within limited space.

In operation, the LM Vertical Grinding Mill can be combined with reliable feeding, metal removal, dust collection, and automation systems. Online monitoring of mill vibration, roller pressure, separator speed, and product fineness helps operators maintain stable production. Because clinker is abrasive, wear protection and preventive maintenance are important. Shanghai Zenith Machinery can support customers with process selection, equipment configuration, and spare parts planning so that the grinding line achieves reliable long-term performance.

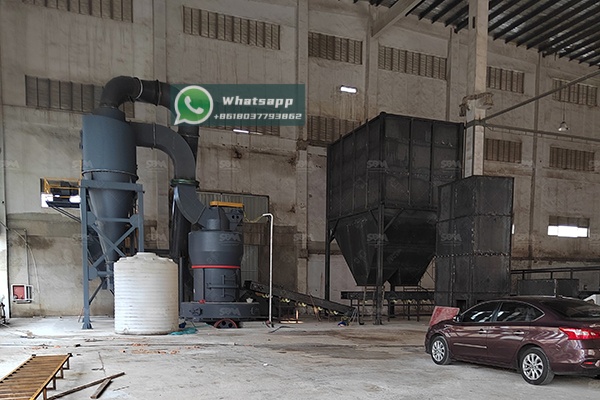

Recommended Product 2: MTW Trapezium Grinding Mill, Especially MTW175G

For cement factories that require product flexibility or have smaller batch production requirements, Shanghai Zenith Machinery also recommends the MTW Trapezium Grinding Mill. The MTW mill is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. For medium size factories, the MTW175G is a useful model to consider: maximum feed size below 40 mm, final size of 1.6–0.045 mm, capacity of 9.5–25 t/h, main motor of 160 kW, and fan motor of 200 kW.

The MTW Trapezium Grinding Mill can be applied to blended cement components, gypsum, limestone, pozzolana, and other supplementary materials. It is not necessarily intended to replace a large vertical mill in a high-capacity clinker grinding line, but it can provide valuable flexibility for specialty products, smaller grinding stations, or auxiliary grinding duties. Its compact structure and efficient powder selection system make it suitable for factories that need multiple product types without excessive space requirements. For Turkish cement producers serving local and regional markets, this flexibility can be important when responding to changing customer demand.

Plant Design and Operational Best Practices

A grinding mill alone does not guarantee efficient cement production. The complete circuit must be designed and operated as an integrated system. For medium size factories in Turkey, the following best practices are recommended:

• Use consistent clinker and additive proportioning with reliable weigh feeders and belt scales.
• Install effective metal removal before the mill to protect grinding elements and reduce unplanned stops.
• Design adequate dust collection at transfer points, mill outlet, separator, and packing areas.
• Maintain stable feed size and moisture content; excessive moisture can reduce mill output and cause material build-up.
• Use automatic control for mill load, separator speed, and product fineness where possible.
• Establish a preventive maintenance schedule for wear parts, lubrication, and vibration monitoring.
• Keep strategic spare parts on site, especially for critical components, to minimize downtime.

These practices help medium size cement factories achieve stable output, protect equipment, and meet environmental requirements. They also support energy management programs, which are increasingly important for cement producers facing volatile fuel and electricity prices.

Why Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. This broad product range allows Shanghai Zenith Machinery to propose equipment based on actual capacity, fineness, material properties, and layout conditions rather than offering a single fixed solution.

For cement clinker grinding projects in Turkey, Shanghai Zenith Machinery can provide technical support for model selection, process layout, equipment supply, commissioning guidance, and spare parts planning. Medium size factories benefit from a solution that is neither oversized nor undersized, but properly matched to the local market, raw materials, and operating budget.

Conclusion

Selecting the right cement clinker grinding mill is a strategic decision for medium size cement factories in Turkey. The grinding circuit must deliver the required capacity and fineness while controlling energy consumption, maintenance cost, and environmental impact. The LM Vertical Grinding Mill, especially the LM190K, is recommended as a primary solution for efficient clinker grinding with integrated drying, grinding, and classification. The MTW Trapezium Grinding Mill, especially the MTW175G, offers useful flexibility for blended cements and smaller production requirements. By combining appropriate equipment selection with sound plant design and preventive maintenance, Turkish cement producers can improve competitiveness and achieve reliable, sustainable cement production.
