Petroleum coke mill for high efficiency combustion in Indonesia

Petroleum Coke Mill for High-Efficiency Combustion in Indonesia

Indonesia’s expanding industrial base is driving strong demand for cost-effective and reliable solid fuels. Petroleum coke, often called petcoke, is increasingly considered as an alternative fuel for cement kilns, power boilers, and industrial furnaces. Petcoke can offer high calorific value, but it is not a simple substitute fuel. Its high carbon content, low volatile matter, variable moisture, and abrasive nature mean that combustion efficiency depends heavily on proper fuel preparation. A well-selected petroleum coke mill must deliver stable and uniform fine powder, remove excess moisture, and operate reliably under continuous duty. Shanghai Zenith Machinery Co., Ltd., an established manufacturer of ore grinding equipment in China, provides vertical and trapezium grinding mills that can be configured for petcoke preparation in Indonesian industrial plants.

Why Petcoke Preparation Matters for Combustion

Combustion efficiency is closely related to particle size, particle size distribution, moisture content, and feed stability. Fine petcoke particles have a larger surface area and can ignite and burn more completely, while coarse particles may cause incomplete burnout, higher carbon loss, and unstable flame conditions. In Indonesia, fuel logistics, storage conditions, and tropical humidity can increase moisture variation, making drying and consistent feeding especially important. The grinding circuit should therefore be designed as part of the combustion system, not as an isolated size-reduction step.

Fineness and Particle Size Distribution

For many combustion applications, petcoke is ground to a controlled fineness so that the burner can achieve stable ignition and high burnout. Typical targets may be around 90% passing 200 mesh or a D97 in the range of 45 to 75 micrometres, depending on burner design, kiln or boiler conditions, and fuel characteristics. The mill should provide not only a fine average product but also a consistent particle size distribution. A dynamic classifier, as used in modern vertical mills, helps control top size and reduces over-grinding, which saves power and improves combustion stability.

Drying and Moisture Control

Indonesian plants may receive petcoke with moisture levels that vary by source and season. High moisture can reduce mill capacity, cause sticking in storage and feeding equipment, and lower combustion efficiency. The LM Vertical Coal Mill Series integrates hot-air drying with grinding and classification. This allows the system to evaporate surface moisture while producing fine powder in one compact unit. Temperature and airflow should be controlled carefully to avoid condensation, fire risks, and product quality fluctuations. For smaller or more compact circuits, the MTW Trapezium Grinding Mill can also be combined with a hot-air system when drying is required.

Wear Resistance and Reliability

Petcoke can be abrasive, and continuous operation places high demands on grinding elements and liners. Equipment selection should consider wear-resistant materials, easy maintenance access, and stable operation under variable feed conditions. Shanghai Zenith focuses on industrial powder grinding equipment and related devices, with design experience in vertical mills, trapezium mills, ultrafine mills, and ball mills. For petcoke combustion projects, wear protection and a practical maintenance plan are essential to keep availability high and operating costs under control.

Recommended Equipment from Shanghai Zenith

For Indonesian petcoke combustion applications, Shanghai Zenith recommends two product lines. The first is the LM Vertical Coal Mill Series for medium-to-large capacity plants that require integrated drying, grinding, classification, and conveying. The second is the MTW Trapezium Grinding Mill for fine powder production, compact installation, and flexible capacity.

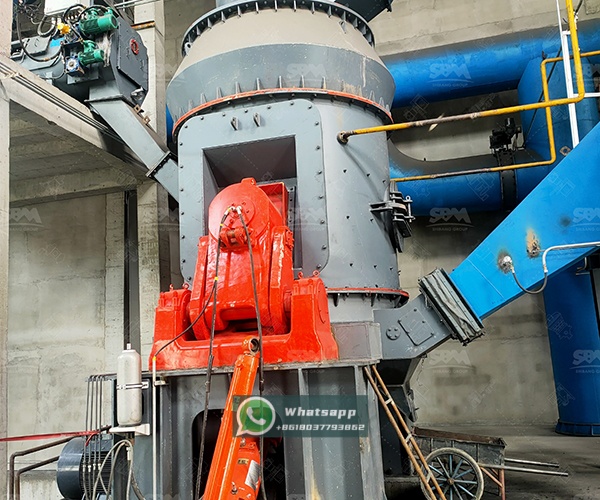

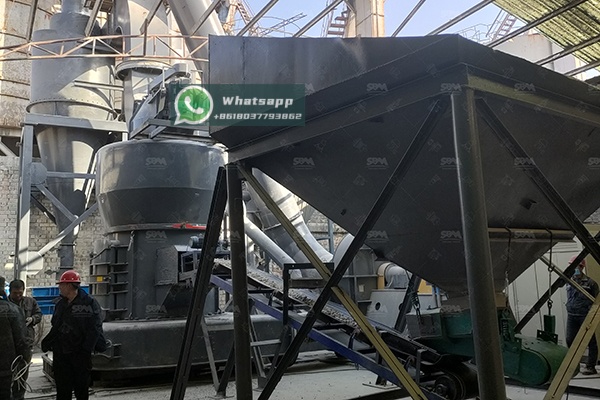

LM Vertical Coal Mill Series

The LM Vertical Coal Mill integrates crushing, grinding, powder selection, drying, and material conveying into a single machine. It offers a small occupation area, fine final powder, and an eco-friendly production solution. Available models include the LM130M with capacity of 10 to 17 t/h, maximum feed size below 38 mm, and 185 kW main motor; the LM220M with capacity of 35 to 50 t/h, maximum feed size below 50 mm, and 500 kW main motor; and the LM280M with capacity of 60 to 90 t/h, maximum feed size below 50 mm, and 900 kW main motor. For many Indonesian cement kilns and industrial boilers, the LM220M or LM280M can be matched to fuel demand while providing stable fineness and reliable drying performance. The vertical mill is suitable for petcoke and petcoke-coal blends, helping plants improve combustion efficiency and reduce fuel cost.

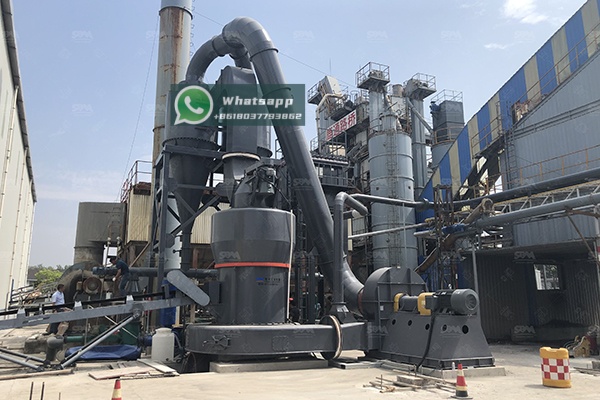

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of up to 50 mm and can produce a final product as fine as 0.038 mm. For petcoke preparation, the MTW175G and MTW215G are practical options. The MTW175G offers a capacity of 9.5 to 25 t/h, final size of 1.6 to 0.045 mm, 160 kW main motor, and 200 kW fan motor. The MTW215G offers a capacity of 15 to 45 t/h, final size of 1.6 to 0.045 mm, 280 kW main motor, and 315 kW fan motor. For plants with moderate capacity or where a compact fine-grinding circuit is preferred, the MTW215G can support high-efficiency combustion by producing consistent fine petcoke powder. It can be integrated with feeding, dust collection, and hot-air drying equipment when required.

Integrating the Mill with the Combustion System

Mill selection should be based on the complete fuel preparation and combustion system. A typical installation includes raw petcoke storage, weighing and feeding, hot-air generation, grinding and classification, dust collection, fine powder storage, and burner supply. Stable feed is critical because fluctuations in feed rate and moisture can disturb mill temperature, product fineness, and flame stability. Automation should monitor feed rate, mill differential pressure, outlet temperature, classifier speed, and fan load. In Indonesia, island sites and remote industrial areas may also require modular layouts, practical spare-parts planning, and responsive service support. Shanghai Zenith can provide equipment selection and process configuration based on fuel data, required fineness, moisture content, capacity, and site conditions.

Conclusion

High-efficiency petcoke combustion in Indonesia requires more than a mill with sufficient capacity. It requires a well-integrated preparation system that controls fineness, moisture, wear, and feed stability. Shanghai Zenith Machinery Co., Ltd. offers proven grinding equipment for industrial powder processing, including the LM Vertical Coal Mill Series and the MTW Trapezium Grinding Mill. For medium-to-large petcoke combustion projects, the LM220M and LM280M provide integrated drying and grinding with capacities of 35 to 50 t/h and 60 to 90 t/h. For compact fine-grinding circuits, the MTW215G offers capacity of 15 to 45 t/h and final product down to 0.045 mm. By matching the correct mill and system design to local fuel conditions, Indonesian plants can improve combustion efficiency, reduce operating costs, and achieve more reliable fuel preparation.
