Petroleum coke grinding mill for Thailand 200 mesh fuel powders

Petroleum Coke Grinding Mill for Thailand 200 Mesh Fuel Powders

Thailand’s industrial sector, particularly in cement plants, power generation, and metallurgy, has increasingly turned to petroleum coke (petcoke) as a cost-effective alternative fuel. With its high calorific value and low ash content, petcoke is an ideal energy source when ground into fine powders. The standard specification for fuel-grade petcoke often requires a fineness of 200 mesh (74 microns) to ensure complete combustion and high thermal efficiency. Selecting the right grinding equipment is critical to achieving consistent product quality, low operating costs, and environmental compliance. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers a comprehensive range of mills specifically engineered for processing petroleum coke into 200 mesh fuel powders, backed by decades of innovation in ultra-fine powder grinding.

Understanding Petroleum Coke Grinding

Petroleum coke is a carbonaceous solid derived from oil refining. It is hard, abrasive, and has a low moisture content. Grinding petcoke to 200 mesh requires mills that can handle high throughput while maintaining a narrow particle size distribution. The material’s abrasiveness demands wear-resistant components, and its flammability necessitates explosion-proof designs and inert gas protection systems. Zenith’s grinding mills are built with these challenges in mind, featuring robust construction, advanced classifiers, and intelligent control systems.

Key Considerations for Thailand’s Petcoke Fuel Market

Thailand’s petcoke imports have grown steadily due to local coal shortages and stricter emissions regulations. Fuel powders at 200 mesh (D90 passing 200 mesh) are widely used in rotary kilns, fluidized bed boilers, and pulverized fuel burners. The grinding system must offer flexibility in adjusting fineness while maintaining stable operation under varying feed conditions. Zenith’s product portfolio includes mills capable of producing 200 mesh powders with capacities ranging from a few tons per hour to over 50 tons per hour, catering to both small-scale and large-scale industrial users.

Recommended Grinding Solutions from Zenith

For the production of 200 mesh petroleum coke fuel powders, we highly recommend the MTW Trapezium Grinding Mill series and the LM Vertical Grinding Mill series. Both have proven track records in petcoke applications across Asia and beyond.

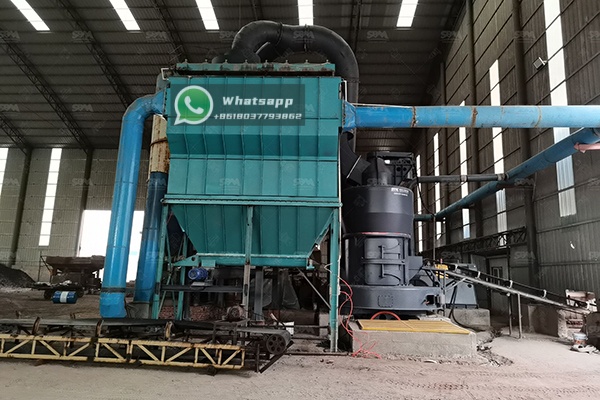

MTW Trapezium Grinding Mill – Ideal for Mid-to-High Capacity

The MTW series incorporates multiple patented technologies, including a bevel gear transmission system, curved air ducts, and an oil-lubricated grinding roller assembly. Its trapezoid-shaped grinding ring and roller increase the grinding area and reduce material slippage, resulting in higher efficiency and finer product fineness. For 200 mesh petcoke, the MTW138Z model is an excellent choice, with a maximum feed size of 35 mm and capacity up to 17 t/h. The mill’s classifier can easily adjust the fineness to ensure 97% passing 200 mesh. Additionally, the MTW175G offers even higher capacity (up to 25 t/h) for larger operations. Both models feature an integrated pulse dust collector to meet Thailand’s environmental standards.

Key advantages of MTW for petcoke grinding:

• Compact footprint and low noise
• Wear parts made of high-manganese steel for extended life
• Automatic grease lubrication system reduces maintenance
• Optional nitrogen inerting for safe operation
• Final product fineness adjustable from 1.6 mm down to 0.038 mm (400 mesh)

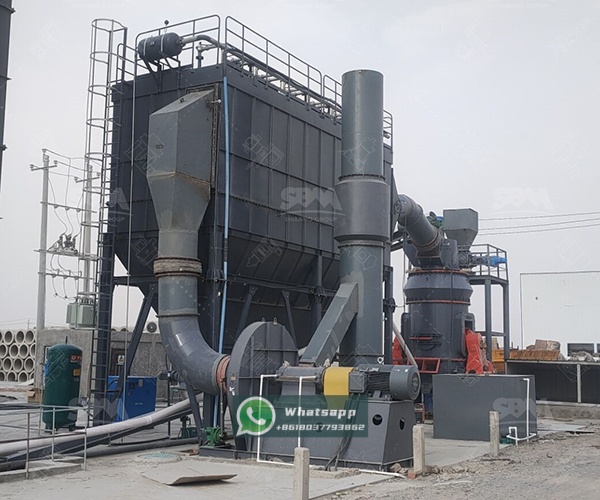

LM Vertical Grinding Mill – High Efficiency with Integrated Drying

The LM Vertical Grinding Mill integrates crushing, grinding, drying, classifying, and material conveying in one unit, significantly reducing the system’s overall complexity. For petcoke with slightly higher moisture (up to 10%), the LM series can utilize hot air to dry and grind simultaneously. The LM190K model, with a plate diameter of 1900 mm and capacity from 23 to 68 t/h, is particularly suitable for large-scale petcoke grinding. Its output fineness range (170-40 μm) easily covers 200 mesh (74 μm). The mill’s hydraulic system ensures stable operation even with fluctuating feed rates, and the built-in classifier achieves high-precision separation.

For Thailand’s petcoke fuel powder projects, the LM series offers these benefits:

• Low energy consumption per ton (up to 30% less than ball mills)
• Small footprint – ideal for space-constrained plants
• Easy to control product fineness via variable speed classifier
• Dual function of drying and grinding reduces auxiliary equipment
• Long service life of grinding rollers and table

Technical Comparison for 200 Mesh Petcoke Production

When selecting between MTW and LM series, consider the required throughput and available space. For a typical Thai cement plant demanding 15-20 t/h of 200 mesh petcoke, the MTW175G or LM190K would be ideal. If the plant needs 30-50 t/h, the LM280K is a better fit. Zenith also offers the MTM Medium-Speed Grinding Mill, which is an upgraded Raymond mill with efficient classification. For smaller operations (3-8 t/h), the MTM100 or YGM9517 Raymond Mill can be economical, though the Raymond mill may require more frequent maintenance due to its design.

Below is a quick reference table for the most suitable models:

After-Sales Support and Localization

Shanghai Zenith Machinery understands the importance of reliable service in Thailand. We offer complete spare parts packages, on-site installation supervision, and training for local operators. Our mills are equipped with intelligent monitoring systems that enable remote diagnostics, reducing downtime. We also assist in designing the complete grinding plant layout, including feeding, conveying, storage, and dust collection systems, ensuring seamless integration with existing facilities.

Conclusion

Grinding petroleum coke to 200 mesh for fuel powders in Thailand demands equipment that is robust, efficient, and adaptable. Shanghai Zenith Machinery’s MTW Trapezium Grinding Mill and LM Vertical Grinding Mill have demonstrated outstanding performance in numerous petcoke projects worldwide. By choosing Zenith, you invest in advanced technology that optimizes energy consumption, reduces maintenance costs, and delivers consistent product quality. For inquiries and customized solutions, our engineering team is ready to support your project from concept to commissioning.

Contact us today to discuss your specific requirements and receive a detailed quotation for the ideal petroleum coke grinding mill for your Thailand operation.
