Barite grinding mill for Indonesia drilling grade

Introduction

Barite (barium sulfate, BaSO₄) is a critical mineral used extensively in the oil and gas drilling industry. Its high specific gravity (typically 4.2–4.5 g/cm³), chemical inertness, and low cost make it an ideal weighting agent for drilling fluids. In Indonesia, one of the world’s top oil and gas producers, the demand for drilling-grade barite has grown steadily alongside exploration activities in offshore Sumatra, Kalimantan, and the Java Sea. To meet the stringent specifications of API (American Petroleum Institute) standards, barite must be ground to a fine powder with a particle size of at least 97% passing 200 mesh (74 μm) and a specific gravity above 4.2. Selecting the right grinding mill is therefore crucial for Indonesian barite processors to produce consistent, high-quality product while maximizing throughput and minimizing energy costs.

Drilling Grade Barite Specifications

According to API 13A, drilling-grade barite must meet the following key parameters:

• Specific gravity: ≥ 4.20 g/cm³
• Fineness: 97% minimum passing 200 mesh (74 μm), with a maximum of 3% retained on a 200-mesh sieve
• Residue on 325 mesh (45 μm): ≤ 5% for premium grades
• BaSO₄ content: ≥ 90% (often >95% for high-grade deposits)
• Water-soluble alkaline earth metals (as Ca): ≤ 250 mg/kg

These requirements demand a grinding system capable of producing a narrow particle size distribution while avoiding over-grinding, which can lead to excessive fines and increased viscosity in the drilling mud. Additionally, moisture content in the feed should be kept low (ideally <3%) to prevent clogging and ensure efficient classification.

Challenges in Barite Grinding for the Indonesian Market

Indonesian barite deposits, found mainly in West Java, Lampung, and parts of Sulawesi, often have variable hardness (Mohs 3–3.5), associated impurities such as quartz and calcite, and moisture levels that can exceed 5% after mining. Therefore, a robust grinding solution must address:

• Moisture removal: Efficient drying capability without auxiliary dryers
• Abrasion resistance: Wear parts designed to handle slightly abrasive gangue minerals
• Flexible fineness: Easy adjustment of product fineness between 40–100 μm as per client requirements
• Low operating cost: Energy savings of 20–30% compared to traditional ball mills

Recommended Grinding Mills from Shanghai Zenith

Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers a range of advanced mills perfectly suited for barite processing. Based on extensive field experience in Indonesia and other Southeast Asian markets, we highlight two flagship models:

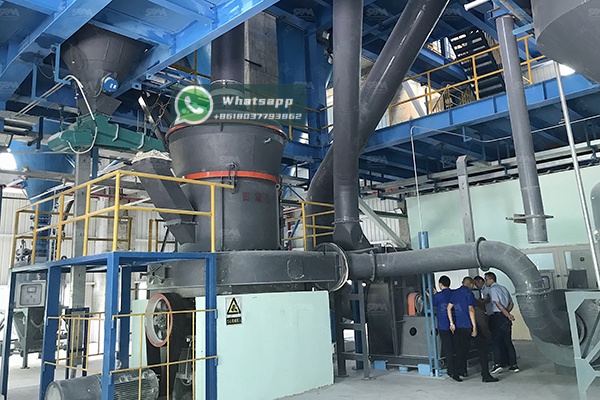

1. MTW Trapezium Grinding Mill

The MTW series is a multi-patented, eco-friendly mill with compact structure and long service life. Its inclined roller and grinding ring design improve grinding efficiency by 20–30% over traditional Raymond mills. For barite, the MTW175G model is highly recommended:

• Max feed size: ≤ 40 mm
• Product fineness: 1.6–0.045 mm (10–325 mesh)
• Capacity: 9.5–25 t/h (depending on barite hardness and required fineness)
• Main motor power: 160 kW
• Fan motor power: 200 kW

This model can easily produce 200-mesh barite powder at a stable output of 15–20 t/h with a specific gravity ≥ 4.2. Its built-in analyzer and variable-speed classifier allow fine-tuning of particle size without stopping the mill. The trapezoidal grinding ring ensures uniform wear and reduces maintenance frequency. For smaller operations, the MTW138Z (6–17 t/h) offers similar advantages with a lower initial investment.

2. LM Vertical Grinding Mill

For integrated drying and grinding, the LM Vertical Mill is an excellent choice. It combines crushing, grinding, drying, classifying, and material conveying in one unit, drastically reducing floor space and auxiliary equipment. The LM190K model is specifically designed for mineral grinding:

• Plate diameter: 1900 mm
• Capacity: 23–68 t/h
• Product fineness: 170–40 μm (90–400 mesh)
• Max feed size: ≤ 45 mm
• Main motor power: 500 kW

With its integrated hot air drying system, the LM190K can handle barite with up to 8% moisture, reducing it to below 1% in the final product. The hydraulic pressure adjustment system ensures stable operation even when feed material varies in hardness. This mill is particularly favored by large Indonesian barite processing plants feeding 50,000–100,000 tons annually to the drilling mud makers.

Why Choose Shanghai Zenith for Your Barite Grinding Project?

Shanghai Zenith Machinery has been at the forefront of grinding technology for over two decades. Our mills are serving barite processors in Kalimantan, Sumatra, and Java, with repeat orders based on reliability and performance. Key advantages include:

• Local service support: We have distributors and service engineers stationed in Jakarta and Surabaya, ensuring prompt spare parts delivery and on-site maintenance.
• Customized solutions: We analyze your feed material (moisture, hardness, impurities) to recommend the exact mill model, motor power, and classifier configuration.
• Energy efficiency: Our mills consume 30–40% less power per ton of barite compared to outdated ball mills, reducing your electricity bill significantly.
• Proven in Indonesia: The MTW138Z and LM190K have been successfully installed in Lampung and West Java, producing API-grade barite for clients such as PT Barite Indonesia and Schlumberger supply chains.

Installation Case Study: PT Barite Nusantara, Lampung

In early 2023, a barite processing company in Lampung replaced their old Raymond mill with a Shanghai Zenith MTW175G. The feed barite had a specific gravity of 4.25 and moisture of 4%. After installation, the following results were achieved:

• Output: 18 t/h (target 15 t/h)
• Fineness: 99% passing 200 mesh
• Specific gravity after grinding: 4.21 (within API spec)
• Energy consumption: 22 kWh per ton (35% less than previous system)
• Annual savings: Over USD 120,000 on electricity alone

The client now exports drilling-grade barite to major oil service companies operating in the East Kalimantan offshore fields.

Conclusion

Selecting the right barite grinding mill is a strategic decision that directly impacts production cost, product quality, and market competitiveness. For Indonesian barite processors targeting the drilling grade market, the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill from Shanghai Zenith offer unmatched efficiency, reliability, and flexibility. Whether your operation requires a medium-capacity solution like the MTW175G or a high-throughput integrated system like the LM190K, our team can deliver a turnkey solution tailored to your deposit characteristics and production goals. Contact us today to discuss your project specifications and receive a detailed proposal.
