Petroleum coke grinding mill for power plant fuel in Malaysia

Introduction

Malaysia is a dynamic energy market in Southeast Asia. Its power generation fleet includes coal-fired, gas-fired, hydro, and emerging renewable plants. Although natural gas has historically dominated Peninsular Malaysia, coal remains a major fuel for base-load electricity, especially in Sarawak and along the west coast. To control fuel costs and diversify supply, many independent power producers and utility companies in Malaysia are evaluating petroleum coke, or petcoke, as a partial or full replacement for thermal coal. Petcoke has high calorific value and is often competitively priced, but it also presents unique grinding challenges. A reliable petroleum coke grinding mill for power plant fuel in Malaysia must handle abrasive material, high moisture, and strict fineness requirements while maintaining continuous operation.

Petroleum Coke as a Power Plant Fuel in Malaysia

Petroleum coke is a carbon-rich solid produced during oil refining. In Malaysia, imported petcoke from regional refineries can be delivered to ports and then transported to power plants or industrial boilers. When burned in pulverized fuel boilers, petcoke must be ground to a fine powder, typically 200 mesh (75 µm) with 70–80% passing, or finer depending on boiler design and co-firing ratio. The grinding system directly affects combustion efficiency, flame stability, carbon burnout, and emissions. Because petcoke has low volatile matter and high ignition temperature, poor particle size distribution can cause incomplete combustion and high unburned carbon. Therefore, mill selection and classification performance are critical.

Why Petcoke Is More Difficult to Grind Than Coal

Petroleum coke differs from bituminous coal in several ways. It is harder and more abrasive, with a Hardgrove grindability index that can be lower than 40–50, meaning it resists grinding. Its abrasive ash and coke structure accelerate wear on grinding elements. It may contain high sulfur and vanadium, which can create corrosion concerns. Moisture content can vary from 6% to 12% or more, especially after sea transport and tropical storage in Malaysia. High moisture reduces mill capacity and can cause plugging in feeders, classifiers, and filters. In addition, petcoke has low volatile matter, so fine grinding and stable drying are essential. These factors demand a robust mill with wear-resistant materials, efficient drying, and precise dynamic classification.

Key Requirements for a Petcoke Grinding System

A suitable grinding system for petcoke fuel must meet several requirements. First, it must achieve the target fineness consistently, usually 200 mesh or 325 mesh, with a narrow particle size distribution. Second, it must have enough capacity to match boiler fuel demand, including margin for wear and moisture. Third, it must integrate drying using hot gas from an air heater or hot gas generator. Fourth, it must resist abrasion through wear-resistant liners, rollers, and grinding table. Fifth, it must provide safe operation with explosion vents, CO monitoring, and inerting where required. Finally, it must be compact, energy-efficient, and easy to maintain, because power plants operate continuously and downtime is expensive. In Malaysia’s humid climate, corrosion protection and reliable moisture control are also important.

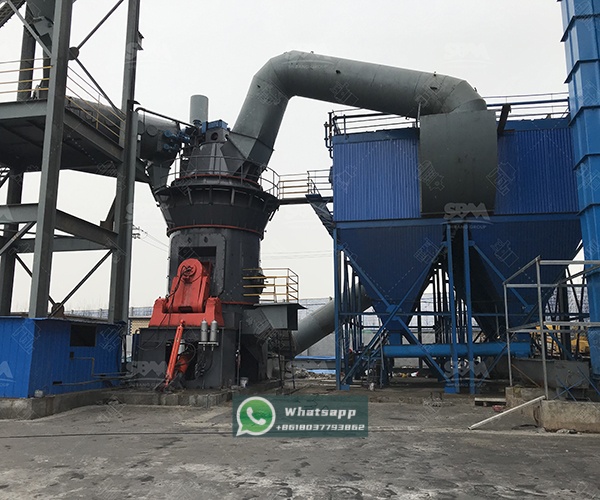

Recommended Product: LM Vertical Grinding Mill from Shanghai Zenith

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. For petroleum coke grinding in power plants, we recommend the LM Vertical Grinding Mill, especially the Vertical Coal Mill Series. This mill integrates crushing, grinding, powder selection, drying, and material conveying into one machine. It occupies a small area, produces fine final powder, and provides an eco-friendly production solution. For petcoke, the LM Vertical Grinding Mill can use hot gas for drying, a high-efficiency dynamic classifier for precise fineness, and wear-resistant grinding rollers and table liners for long service life.

LM Vertical Coal Mill Series Parameters

For a medium-capacity Malaysian power plant or co-firing project, the LM220M is a strong choice, with 35–50 t/h capacity and a 2200 mm grinding plate. For larger base-load units, the LM280M can deliver 60–90 t/h with a 2800 mm plate and 900 kW main motor. These models are designed for continuous operation and can be configured with explosion protection, inert gas, and advanced control systems. The LM series also reduces specific power consumption compared with traditional ball mills, which is important when electricity and maintenance costs are high.

Alternative Product: MTW Trapezium Grinding Mill

For projects with smaller capacity, modular layout, or where a traditional pulverizing circuit is preferred, Shanghai Zenith also offers the MTW Trapezium Grinding Mill. This is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. The MTW215G model has a capacity of 15–45 t/h, a maximum feed size below 50 mm, a final size range of 1.6–0.045 mm, a 280 kW main motor, and a 315 kW fan motor. The MTW175G offers 9.5–25 t/h with a 160 kW main motor. These models can be used for petcoke grinding where the required output is moderate or where a compact grinding station is needed.

Selected MTW Models for Petcoke Grinding

When petcoke is co-fired with coal, the MTW mill can provide flexible fineness adjustment and stable output. It is also a practical option for pilot plants, industrial boilers, and smaller independent power projects in Malaysia.

System Integration and Operation in Malaysia

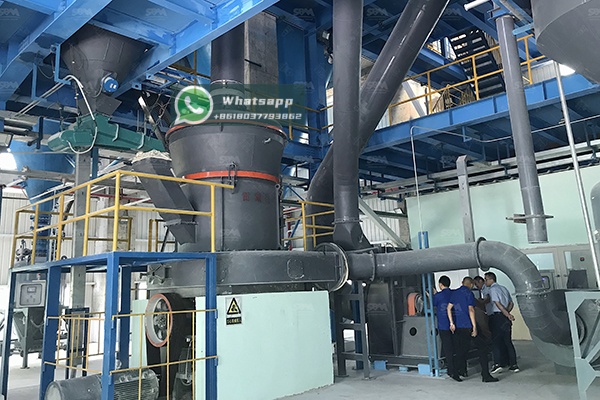

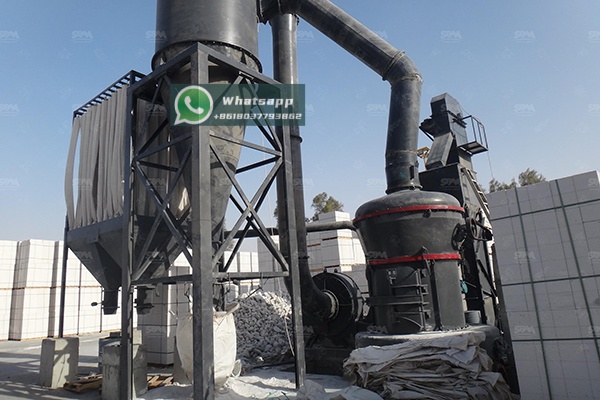

A complete petcoke grinding plant includes raw material storage, belt feeding, metal removal, weighing, the mill, hot gas generator, bag filter, induced draft fan, powder silo, and conveying systems. In Malaysia, high ambient humidity means the drying circuit must be designed with adequate heat input. Petcoke with high moisture should be dried to about 1–2% moisture before firing. The classifier should be adjusted to maintain 200 mesh or finer product. Wear parts should be inspected regularly, especially when petcoke grindability is low and abrasive. Dust collection must meet local environmental regulations. Explosion prevention measures, such as CO monitoring, temperature control, and explosion vents, should be included in the design. Shanghai Zenith can provide process support, equipment selection, and after-sales service for Malaysian customers.

Why Choose Shanghai Zenith Machinery Co., Ltd.

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development, and production of industrial powder grinding equipment and related devices. The main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. With rich experience in mineral grinding and industrial powder processing, Zenith can recommend the right mill based on petcoke hardness, moisture, capacity, fineness, and fuel specification. The company provides complete technical solutions, spare parts, and maintenance guidance to help Malaysian power plants achieve reliable and efficient petcoke utilization.

Conclusion

Petroleum coke is an attractive power plant fuel in Malaysia because of its high energy content and competitive cost, but its hardness, abrasiveness, moisture, and low volatile matter require careful mill selection. The LM Vertical Grinding Mill, particularly the LM220M and LM280M from the Vertical Coal Mill Series, is an excellent primary solution for medium and large power plants. For smaller or modular projects, the MTW215G and MTW175G Trapezium Grinding Mills offer flexible and proven performance. By combining proper drying, classification, wear protection, and safety design, Shanghai Zenith can help Malaysian power producers convert petroleum coke into a reliable pulverized fuel for efficient and compliant power generation.
