Limestone milling line for Oman 80–325 mesh powder

Introduction to Limestone Milling in Oman

Oman possesses abundant limestone reserves, which are widely used in construction, cement manufacturing, steel production, and environmental desulfurization. The demand for high-quality limestone powder ranging from 80 to 325 mesh (approximately 180–45 microns) is growing rapidly in the region. Establishing an efficient and reliable limestone milling line is crucial for local industries to reduce import dependency and achieve consistent product quality. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers comprehensive solutions tailored to Oman’s specific requirements. Our expertise in ultra-fine powder grinding ensures that clients achieve optimal productivity, energy efficiency, and product fineness.

Characteristics of Limestone and Processing Challenges

Limestone (CaCO₃) is a soft to medium-hard mineral with a Mohs hardness of 3–4. Its moisture content, abrasiveness, and chemical purity can vary, affecting grinding performance. Typical challenges include controlling particle size distribution, minimizing wear on grinding components, and maintaining stable throughput. A well-designed milling line must handle these variables while meeting the end-user’s strict specifications for fineness and consistency. The 80–325 mesh range covers applications such as animal feed supplements, glass manufacturing, and as a filler in rubber and plastics. Larger particles (80 mesh) are used for construction aggregates and soil stabilization, while finer powders (325 mesh) serve as desulfurizing agents in power plants.

Process Overview of the Limestone Milling Line

A standard limestone milling line consists of three main stages: crushing, grinding, and classification. First, raw limestone is crushed by a jaw crusher or hammer crusher to a feed size suitable for the mill (typically ≤30–50 mm). Then, the crushed material is conveyed to a grinding mill via a bucket elevator and vibrating feeder. After grinding, the powder is transported to a classifier or cyclone collector, where particles are separated according to fineness. Oversized particles are returned to the mill for regrinding, while the final product is collected and stored. For the 80–325 mesh target, both open‑circuit and closed‑circuit configurations can be applied, depending on capacity and fineness requirements.

Limestone crushing and feeding system diagram showing jaw crusher, vibrating feeder, and bucket elevator

Recommended Grinding Equipment for 80–325 Mesh

Based on decades of experience in powder processing, Shanghai Zenith Machinery recommends two advanced grinding mills for Oman’s limestone milling line: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both machines are widely used in the region and have proven their reliability and efficiency.

MTW Trapezium Grinding Mill

The MTW series is a patented trapezium mill with a compact structure and long service life. It is ideal for processing limestone with a maximum feed size of up to 50 mm and can produce final powder as fine as 0.038 mm (≈400 mesh). For the 80–325 mesh application, models such as the MTW138Z and MTW175G are commonly selected. Key advantages include:

High capacity: Up to 45 t/h for larger models, suitable for industrial-scale production.
Energy saving: Curved air duct and optimized impeller reduce power consumption.
Low maintenance: Automatic lubrication system and replaceable wear parts lengthen service intervals.
Environmental friendly: Pulse dust collector and noise reduction design meet strict emission standards.

Recommended model for 80–325 mesh (Oman limestone): MTW175G – feed size ≤40 mm, capacity 9.5–25 t/h, final fineness adjustable from 1.6 mm down to 0.045 mm. Main motor 160 kW, fan motor 200 kW.

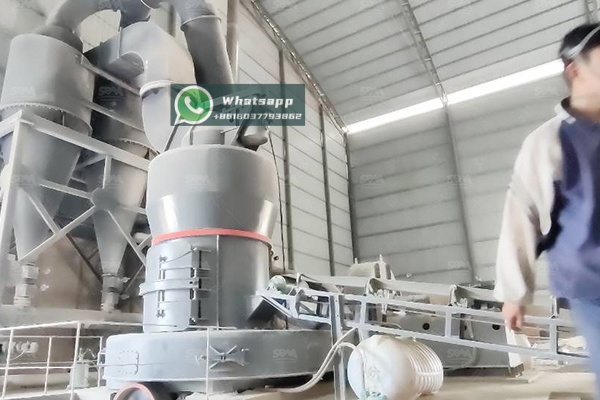

MTW Trapezium Grinding Mill by Shanghai Zenith, designed for limestone milling with high capacity and energy efficiency

LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates crushing, grinding, drying, classifying, and material conveying into one unit, significantly reducing the footprint and capital cost. For limestone powder between 80 and 325 mesh, the LM130X-GX model (Vertical Fine‑powder Mill Series) is an excellent choice. It delivers a D97 fineness of 325–600 mesh, easily covering the required range. Key benefits include:

Ultra‑fine production: Ideal for high‑grade 325 mesh powder with consistent particle size distribution.
Compact layout: Saves at least 50% floor space compared to traditional ball mill systems.
High drying capacity: Can handle limestone with up to 10% moisture by using hot air.
Intelligent control: PLC system automatically adjusts parameters for stable operation.

Recommended model for 80–325 mesh: LM130X-GX – plate diameter 1300 mm, capacity 4–12 t/h, output fineness D97 = 325–600 mesh, main motor 220 kW.

For higher throughput requirements, the LM220X-GX can produce 15–30 t/h with the same fineness capabilities.

Comparison and Selection Guide

Both the MTW and LM series are well‑suited for Oman’s limestone milling lines. The choice depends on the project’s specific needs:

Feature	MTW Trapezium Mill	LM Vertical Mill
Typical capacity (80–325 mesh)	3–45 t/h	4–30 t/h
Floor space	Medium	Compact
Energy consumption	Low	Very low (integrated system)
Maintenance	Easy (trapezium rollers)	Simplified (fewer moving parts)
Drying capability	Moderate (optional hot air)	Excellent (built‑in drying)
Ideal for	Medium to large production with stable product fineness	Ultra‑fine (325 mesh) and space‑constrained projects

For a typical Oman limestone milling line targeting both 80 mesh and 325 mesh, a combination of MTW175G (for coarse grinding) and LM130X-GX (for fine grinding) can maximize flexibility. However, a single LM130X-GX may suffice if the entire output is required at 325 mesh.

Why Choose Shanghai Zenith Machinery?

Shanghai Zenith Machinery Co., Ltd. has been a trusted partner in the global mineral processing industry for over 30 years. Our portfolio includes MTW, MTM, LM, LUM, XZM, Raymond, Hammer Mill, and Ball Mill – all designed for different particle size ranges. We provide turnkey solutions: from site planning, equipment manufacturing, to installation and commissioning. Our after‑sales network in the Middle East ensures quick response for spare parts and technical support. By choosing Zenith, Omanian customers benefit from:

Proven technology with thousands of installations worldwide.
Customized design for local limestone characteristics.
Competitive pricing and low operating costs.
Compliance with ISO 9001 and CE standards.

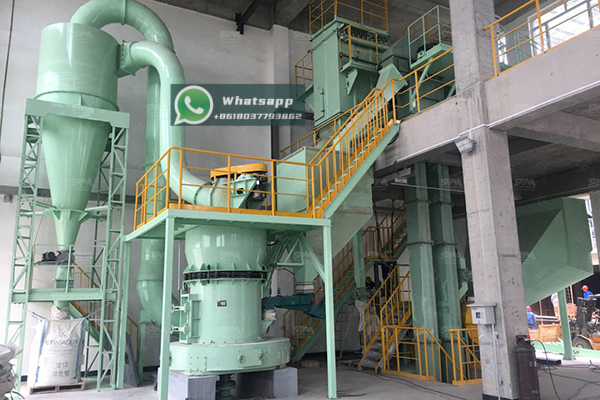

Shanghai Zenith Machinery factory and quality control process for limestone grinding mills

Conclusion

Developing a limestone milling line in Oman that produces 80–325 mesh powder requires careful selection of grinding equipment to balance capacity, fineness, and cost. The MTW Trapezium Grinding Mill and LM Vertical Grinding Mill from Shanghai Zenith Machinery offer robust, energy‑efficient solutions for this application. With technical support and customized service, Zenith helps Oman’s industries achieve consistent powder quality and higher profitability. Contact our team today to discuss your specific project requirements and receive a tailored quotation.
