Limestone Mill for 10 Ton per Hour Capacity in Iraq

Iraq is entering a phase of large-scale infrastructure reconstruction, and limestone is one of the most important industrial minerals supporting this growth. It is used in cement production, concrete aggregates, asphalt filler, lime manufacturing, soil conditioning, and industrial fillers. For many local quarries, cement plants, and mineral processing investors, a limestone grinding plant with a capacity of 10 tons per hour is an ideal starting point. It requires moderate capital investment, is easy to permit and operate, and can be scaled up later. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, offers proven milling solutions for this exact capacity range.

Why 10 t/h Is a Practical Capacity in Iraq

A 10 t/h limestone mill is suitable for several business models in Iraq. First, it can serve small and medium cement plants that need a reliable supply of limestone powder for raw meal blending or cement additives. Second, it can produce fine limestone filler for concrete, mortar, and asphalt, which is in demand for road and building projects. Third, it can support lime kilns by preparing properly sized limestone powder. Fourth, it can produce agricultural limestone for soil neutralization in farming areas. Because the capacity is not too large, the plant can be installed near the quarry, reducing transport costs and ensuring quick return on investment.

In addition, Iraq has many limestone deposits with relatively stable chemical composition. When the material is properly crushed and fed, a 10 t/h grinding circuit can achieve high availability with only one main mill. This makes operation and maintenance simpler than a large multi-mill plant. For investors who want to test the market before expanding, 10 t/h is a flexible and low-risk option.

Key Factors for Limestone Grinding in Iraq

Material Properties

Limestone is a medium-hard, low-to-medium abrasiveness material. Its compressive strength is generally moderate, but feed size and moisture content can vary by quarry. A typical feed to the mill should be controlled below 30-40 mm after primary crushing. If the limestone contains clay or moisture, drying may be required to avoid sticking and blockage. The grinding mill should therefore be selected with adequate wear resistance, stable grinding pressure, and efficient classification.

Product Fineness

The required final fineness depends on the end use. For cement raw meal, a product of about 80-200 mesh is often acceptable. For concrete filler and asphalt filler, 200-325 mesh is common. For higher-value fillers, 400 mesh or finer may be required. A good 10 t/h limestone mill should provide flexible adjustment of fineness without frequent shutdowns. This is why the classification system and mill type are important.

Climate and Site Conditions

Iraq has a hot, arid climate with high dust levels in many quarry areas. The grinding system should be equipped with efficient pulse jet dust collectors, heat-resistant electrical components, and proper lubrication. The layout should minimize material transfer points to reduce dust emission. If the plant operates in remote areas, easy maintenance and local spare part availability are also critical. Shanghai Zenith Machinery Co., Ltd. designs grinding plants with these practical conditions in mind.

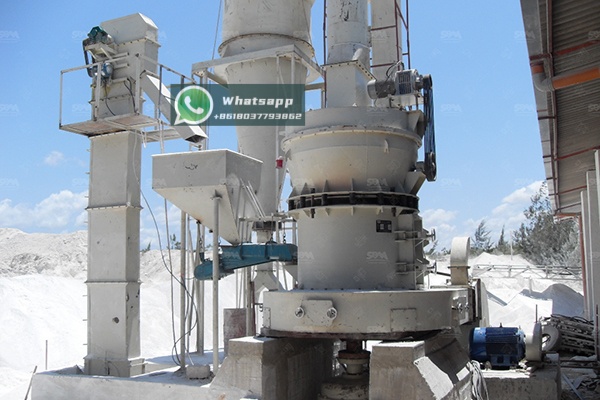

Recommended Product 1: MTW Trapezium Grinding Mill

For a 10 ton per hour limestone project, the MTW Trapezium Grinding Mill is a highly recommended choice. It is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. The MTW series uses a bevel gear overall drive, internal lubrication system, and curved blade design, which improve grinding efficiency and reduce maintenance.

The model MTW138Z is especially suitable for 10 t/h limestone grinding. Its max feed size is below 35 mm, final size range is 1.6-0.045 mm, capacity is 6-17 t/h, main motor power is 90 kW, and fan motor power is 110 kW. This capacity range means the mill can run comfortably at 10 t/h while allowing for feed fluctuations and future increases. If the investor plans to expand to 15-25 t/h later, the MTW175G is also available with a capacity of 9.5-25 t/h, max feed size below 40 mm, main motor 160 kW, and fan motor 200 kW.

• High grinding efficiency and stable output
• Compact structure and small occupied area
• Long service life of wear parts
• Eco-friendly operation with efficient dust collection
• Flexible final fineness from coarse to fine powder

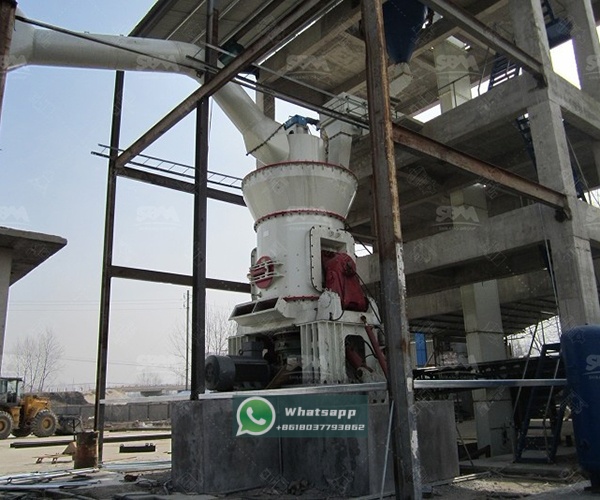

Recommended Product 2: LM Vertical Grinding Mill

For a more integrated and drying-capable solution, the LM Vertical Grinding Mill is another excellent recommendation. It integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into a single machine. This reduces civil work, occupied area, and material handling points. It produces a fine final powder and is an eco-friendly production solution. In Iraq, where limestone moisture may occasionally be higher than desired, the drying function of the LM mill can be a significant advantage.

The model LM130K is well matched to 10 t/h limestone processing. Its plate diameter is 1300 mm, capacity is 10-28 t/h, output fineness is 170-40 μm, max feed size is below 38 mm, and main motor power is 200 kW. Because the capacity starts at 10 t/h, it can meet the target output while providing room for higher production. The LM vertical mill offers high grinding efficiency, low energy consumption per ton, low noise, and low wear. Its intelligent control system also makes operation and maintenance easier for local operators.

• Integrated crushing, grinding, drying, and classifying
• Low specific power consumption
• Small footprint and simple foundation
• Stable operation with low vibration and noise
• Suitable for dry grinding in hot and dusty environments

Comparison for 10 t/h Limestone Grinding

Both mills can achieve 10 t/h, but they serve slightly different priorities. If the project needs a traditional, flexible, and cost-effective grinding circuit with easy fineness adjustment, the MTW138Z is a strong choice. If the project needs higher capacity potential, integrated drying, and a smaller site footprint, the LM130K is the better choice. In many cases, Shanghai Zenith Machinery Co., Ltd. can provide a customized comparison and recommend the most economical solution based on the actual limestone test report.

Complete Limestone Grinding System

A complete 10 t/h limestone mill plant normally includes several stages. First, raw limestone is crushed by a jaw crusher to the required feed size. Then it is stored in a hopper and fed evenly by a vibrating feeder or belt feeder into the grinding mill. The mill grinds the material and sends it to a classifier. Qualified powder enters the cyclone collector and pulse dust collector, while coarse powder returns to the mill for further grinding. Finally, the finished powder is discharged through an air lock and sent to a silo or packing machine.

The auxiliary equipment is just as important as the main mill. A properly sized fan, air compressor, dust collector, and pipeline system ensure stable negative pressure and efficient powder collection. For Iraq, the electrical system should be designed for local voltage and high ambient temperature. The foundation should be solid and isolated to reduce vibration. Shanghai Zenith Machinery Co., Ltd. can supply the complete system, including MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill.

Installation and Operation in Iraq

Installation in Iraq requires attention to logistics, climate, and local operation habits. The equipment should be protected from dust and heat during storage and installation. Lubrication intervals should be shortened in high-temperature areas, and the cooling system should be checked regularly. Operators should be trained on start-up, shutdown, and emergency procedures. A preventive maintenance plan for rollers, grinding rings, liners, and classifier blades will maximize uptime.

Shanghai Zenith Machinery Co., Ltd. provides technical support from layout design to commissioning. We can help customers select the right model, prepare foundation drawings, arrange shipment, and provide operation training. For a 10 t/h limestone project in Iraq, our engineers can recommend the MTW138Z or LM130K based on the customer’s fineness target, moisture content, and budget.

Conclusion

A 10 ton per hour limestone mill in Iraq is a practical and profitable investment for cement additives, concrete filler, lime production, and industrial mineral processing. The MTW138Z Trapezium Grinding Mill and LM130K Vertical Grinding Mill are two recommended products from Shanghai Zenith Machinery Co., Ltd. The MTW138Z offers proven trapezium technology, flexible fineness, and a capacity range of 6-17 t/h. The LM130K offers integrated grinding and drying, low energy consumption, and a capacity range of 10-28 t/h. Both are designed for reliable operation in demanding environments.

As an excellent manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. has made great achievements in the field of ultra-fine powder grinding. We specialize in the research, development, and production of industrial powder grinding equipment and other related devices. For a customized limestone mill solution for 10 t/h in Iraq, please contact our team for a quotation and technical proposal.
