Limestone grinding mill for Qatar cement additives

Introduction: The Role of Limestone in Qatar’s Cement Industry

Qatar’s rapid urbanization and infrastructure development have driven an ever-increasing demand for high-quality cement. As a key additive in Portland cement production, limestone powder not only improves the workability and strength of concrete but also reduces clinker consumption, lowering both costs and carbon emissions. For cement plants in Qatar, selecting a reliable and efficient limestone grinding mill is critical to achieving consistent product fineness (typically 325 mesh or finer) while maximizing throughput and minimizing energy consumption. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment with decades of experience in ultra-fine powder processing, offers a comprehensive range of mills tailored to meet the demanding requirements of the Qatari cement industry.

Why Proper Grinding Equipment Matters for Cement Additives

Limestone used as a cement additive must be ground to a precise particle size distribution to ensure optimal reactivity and compatibility with clinker. Oversized particles can lead to poor hydration, while excessive fines may cause handling issues. Additionally, the abrasive nature of limestone requires robust mill components that can withstand wear over long operational periods. Energy efficiency is another paramount concern—grinding typically accounts for 30–40% of the total power consumption in a cement plant. Therefore, choosing a mill that combines high capacity, low specific energy consumption, and long service life is essential for profitability.

Shanghai Zenith: A Trusted Partner for Ultra-Fine Grinding

Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of ore grinding equipment in China, with notable achievements in the field of ultra-fine powder grinding. Our company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Our product portfolio includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For limestone grinding in cement additive applications, we particularly recommend two advanced solutions: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

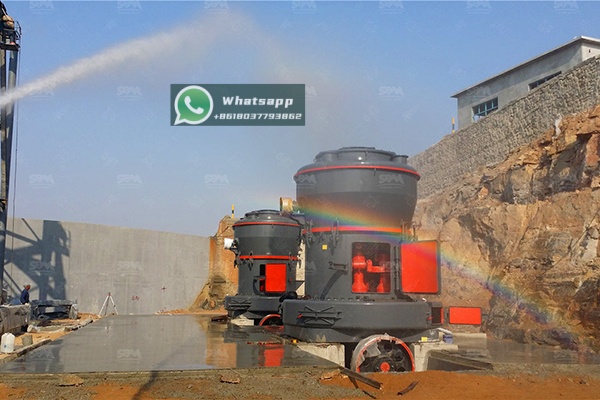

MTW Trapezium Grinding Mill: Compact, Efficient, and Eco-Friendly

The MTW Trapezium Grinding Mill is a multiple-patent design that stands out for its compact structure, long service life, and eco-friendly operation. It is ideal for processing limestone with a maximum input size of up to 50 mm, producing a final product as fine as 0.038 mm (400 mesh). The mill features an internally connected grinding roller and grinding ring, curved air ducts, and a conical classifier for improved classification efficiency. The main motor power ranges from 55 kW to 280 kW, with capacities from 3 to 45 t/h—perfect for medium to large-scale cement additive production lines in Qatar.

Key technical parameters for the MTW series include:

• MTW110: Max feed 30 mm, final size 1.6–0.045 mm, capacity 3–9 t/h, main motor 55 kW.
• MTW138Z: Max feed 35 mm, capacity 6–17 t/h, main motor 90 kW.
• MTW175G: Max feed 40 mm, capacity 9.5–25 t/h, main motor 160 kW.
• MTW215G: Max feed 50 mm, capacity 15–45 t/h, main motor 280 kW.

For cement plants in Qatar requiring a reliable workhorse with proven performance, the MTW215G model offers the highest throughput and can easily handle the rigorous demands of limestone grinding. Its advanced sealing system minimizes dust emissions, aligning with Qatar’s environmental standards.

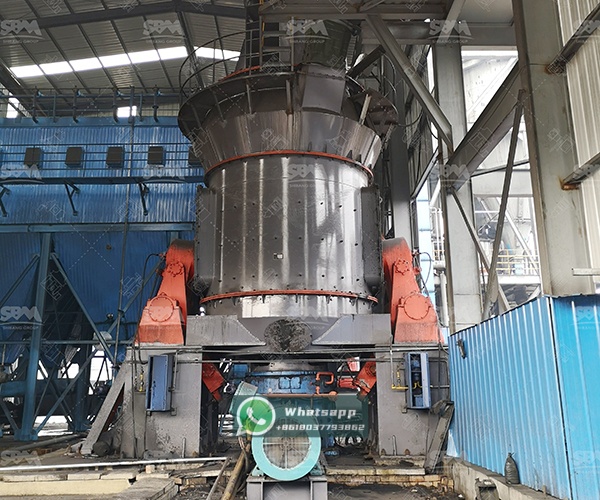

LM Vertical Grinding Mill: Integrated Solution for High-Volume Production

The LM Vertical Grinding Mill integrates crushing, grinding, powder selection, drying, and material conveying into a single unit. This reduces the occupational area by up to 50% compared to traditional ball mill systems, an important advantage in space-constrained cement plants. The mill produces a fine powder with adjustable fineness ranging from 170 to 40 microns. For limestone additives, the LM130K and LM190K models are especially suitable due to their optimized grinding plate diameters and robust main motors.

Parameters for the vertical mineral mill series include:

• LM130K: Plate diameter 1300 mm, capacity 10–28 t/h, output fineness 170–40 μm, max feed 38 mm, main motor 200 kW.
• LM190K: Plate diameter 1900 mm, capacity 23–68 t/h, output fineness 170–40 μm, max feed 45 mm, main motor 500 kW.
• LM280K: Plate diameter 2800 mm, capacity 50–170 t/h, max feed 50 mm, main motor 1250 kW.

The LM series also offers excellent drying capabilities, allowing it to process limestone with up to 6% moisture content without external drying equipment. This flexibility is valuable in Qatar’s climate, where raw material moisture can vary seasonally.

Product Recommendation: MTW215G and LM190K for Qatar Cement Additives

Based on our extensive experience working with cement plants in the Middle East, we strongly recommend the MTW215G Trapezium Grinding Mill for medium-capacity lines requiring high fineness and low maintenance, and the LM190K Vertical Grinding Mill for large-scale operations demanding maximum throughput and energy efficiency. Both mills are designed for continuous operation, easy maintenance, and compatibility with automated control systems. Spare parts and after-sales support are readily available through our regional service network.

Additional Equipment Options for Specialized Needs

For plants that require ultra-fine limestone powder (325–2500 mesh) for high-performance cement additives, the XZM Ultrafine Grinding Mill is an excellent choice. It can process limestone with a feed size of ≤20 mm and achieve capacities up to 25 t/h (XZM268 model). Alternatively, the Ball Mill remains a versatile option for wet or dry grinding, particularly when used in conjunction with a classifier circuit. Zenith’s ball mills, such as the Φ2700×4500 model with 12–90 t/h capacity, are widely used in cement grinding applications worldwide.

Conclusion: Partnering for Success in Qatar

As Qatar continues to expand its cement production capacity to support mega-projects like the Lusail City development and World Cup legacy infrastructure, the demand for high-quality limestone additives will only grow. By investing in a state-of-the-art grinding mill from Shanghai Zenith, cement manufacturers can achieve consistent product quality, lower operating costs, and a smaller environmental footprint. Our team of engineers is ready to provide detailed project assessments, mill selection guidance, and installation supervision to ensure your limestone grinding system operates at peak performance. Contact us today to discuss how the MTW or LM series can enhance your cement additive production.
