Limestone grinding mill for 10 tph production in the United States

Introduction

Limestone is one of the most important industrial minerals in the United States. It is used in construction aggregates, cement production, agricultural soil conditioning, flue gas desulfurization, glass manufacturing, and as a mineral filler in plastics, paints, and paper. As demand for consistent, fine limestone powder grows, many producers are evaluating compact and efficient grinding systems with a capacity of around 10 tph. A limestone grinding mill for 10 tph production in the United States must balance capacity, product fineness, energy consumption, environmental compliance, and ease of maintenance. This article reviews the key selection criteria and recommends two proven Shanghai Zenith Machinery Co., Ltd. grinding mills for this duty: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

Defining the 10 tph Limestone Grinding Requirement

Before selecting a mill, the project team should define the feed material and the target product. Important parameters include limestone hardness and abrasiveness, maximum feed size, moisture content, required fineness, product particle size distribution, and the intended end use. For example, agricultural limestone often requires a relatively coarse product, while industrial fillers and flue gas desulfurization reagents may require 200 mesh, 325 mesh, or even finer. A 10 tph system should also have a reasonable capacity margin so that it can handle variations in feed size and moisture without frequent downtime.

In the United States, operators also expect reliable continuous operation, predictable maintenance, low power cost per ton, and strong dust control. The grinding circuit should therefore be designed as a complete system rather than a single machine. Typical components include a primary crusher or pre-crusher, a controlled feed hopper, the grinding mill, an air classifier or integrated separator, a pulse-jet dust collector, a fan, a finished powder silo, and an automated control panel. For a 10 tph limestone line, a compact layout and modular installation can reduce civil work and shorten commissioning time.

Typical Process Flow

1. Crushing and screening: reduce limestone to a feed size suitable for the selected mill, usually below 30 mm to 50 mm.
2. Storage and feeding: use a hopper, belt feeder, or vibrating feeder to provide stable and continuous feed.
3. Grinding and classification: grind the limestone and classify the powder to the required fineness.
4. Dust collection: capture dust from the mill, classifier, conveying points, and product silo.
5. Product storage and loading: store finished powder in a silo and load it into bulk trucks or bags.
6. Automation: monitor feed rate, mill load, fan current, differential pressure, and product fineness.

Recommended Equipment from Shanghai Zenith

Shanghai Zenith Machinery Co., Ltd. is an experienced manufacturer of industrial powder grinding equipment. Its product range includes the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For a 10 tph limestone project, two models are particularly suitable.

MTW Trapezium Grinding Mill: MTW138Z

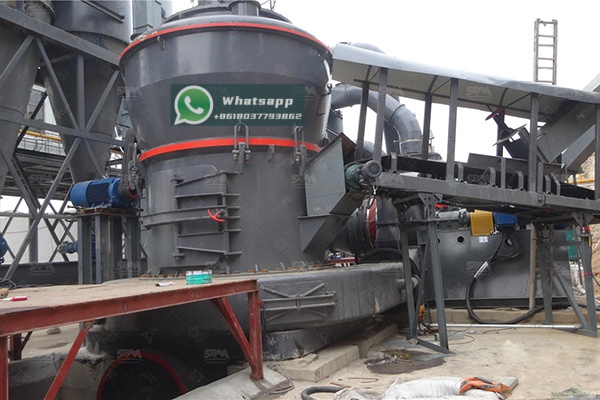

The MTW Trapezium Grinding Mill is a patented design known for its compact structure, long service life, and eco-friendly operation. The MTW138Z model has a maximum feed size of less than 35 mm, a final product size range of 1.6 mm to 0.045 mm, and a capacity of 6 t/h to 17 t/h. Its main motor is 90 kW and the fan motor is 110 kW. For a 10 tph limestone production line, the MTW138Z provides a useful operating margin while still allowing the operator to adjust product fineness for different markets. The mill is well suited to customers who need a conventional, proven grinding solution with good powder classification and a relatively small installation footprint.

LM Vertical Grinding Mill: LM130K

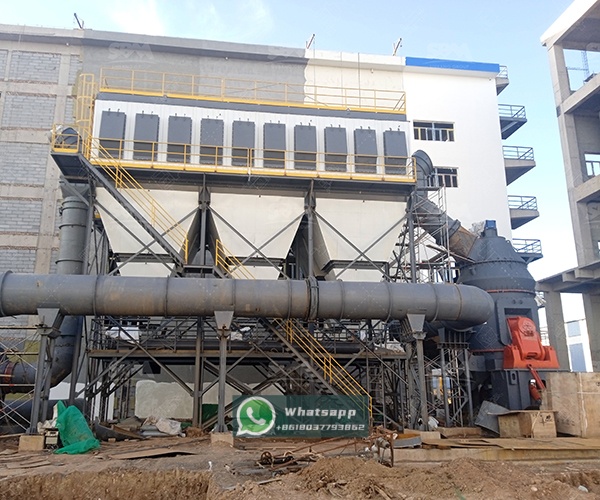

The LM Vertical Grinding Mill integrates crushing, grinding, powder selection, drying, and material conveying into a single machine. The LM130K model has a plate diameter of 1300 mm, a capacity of 10 t/h to 28 t/h, an output fineness of 170 μm to 40 μm, a maximum feed size of less than 38 mm, and a main motor of 200 kW. Because the vertical mill combines several process functions, it can reduce the number of auxiliary machines and save space. It is a strong choice for a 10 tph limestone plant that values a compact layout, stable operation, and the ability to handle moderate moisture in the feed. The LM series is also an environmentally friendly production solution when equipped with proper dust collection and noise control.

Selection Considerations for US Operations

Choosing between the MTW138Z and LM130K depends on the project details. If the target product is relatively coarse to medium fine, the available space is limited, and the investor prefers a familiar trapezium mill circuit, the MTW138Z is an excellent option. If the project requires integrated drying, a smaller footprint, and a vertical mill layout, the LM130K should be evaluated. In either case, the final selection should be confirmed by a material test and a full process design.

Energy and Maintenance

Electricity is a major operating cost in US limestone grinding. The selected mill should deliver a low specific power consumption at the required fineness. Maintenance access is equally important. Wear parts such as rollers, ring segments, and liners should be easy to inspect and replace. A well-designed system includes adequate platforms, lifting points, and spare parts planning so that routine service can be completed safely and quickly.

Environmental and Safety Design

US installations must meet applicable environmental and workplace safety requirements. The grinding line should use enclosed conveying, efficient pulse-jet dust collectors, and proper venting at transfer points. Noise control may include acoustic insulation, flexible connections, and correct fan selection. The control system should provide interlocking and emergency stop functions, and the plant layout should allow safe access for inspection and maintenance.

Why Shanghai Zenith Machinery Co., Ltd.

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development, and production of industrial powder grinding equipment and related devices. The company offers a wide range of mills and can support project planning, equipment selection, layout design, and after-sales service. For a 10 tph limestone grinding plant in the United States, Zenith can help match the mill model, motor power, classifier setting, dust collection system, and automation package to the customer’s product requirements. The MTW138Z and LM130K are both practical, proven options within the company’s product portfolio.

Conclusion

A 10 tph limestone grinding mill in the United States should be selected with careful attention to product fineness, feed conditions, power consumption, environmental control, and maintenance. The MTW Trapezium Grinding Mill MTW138Z offers a capacity range of 6-17 t/h and a final size down to 0.045 mm, making it a reliable choice for many limestone powder applications. The LM Vertical Grinding Mill LM130K offers 10-28 t/h, integrated processing, and a compact footprint for projects that benefit from vertical mill technology. By working with Shanghai Zenith Machinery Co., Ltd., investors can develop an efficient and compliant limestone grinding line for the US market.
