Quartz grinding mill for glass production in Egypt

Introduction

Egypt has a long and dynamic glass industry, supported by abundant mineral resources, growing domestic demand, and expanding export opportunities. Quartz and high-grade silica sand are among the most important raw materials for glass production. From container glass and float glass to fiberglass and specialty glass, the quality of quartz powder directly influences melting behavior, transparency, mechanical strength, and final product consistency. For glass manufacturers in Egypt, selecting an efficient quartz grinding mill is therefore not simply a matter of size reduction; it is a strategic decision that affects energy costs, product quality, and long-term profitability.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. We specialize in the research, development, and production of industrial powder grinding equipment and related devices. Our main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. This article discusses quartz grinding for glass production in Egypt and recommends two Zenith mills that are well suited to this application.

Why Quartz Quality Matters in Glass Production

Quartz, or silica sand, typically accounts for more than 70% of the batch in most glass formulations. Its chemical purity and particle size distribution are critical. Glass-grade quartz must have a high SiO2 content, usually above 99%, and very low levels of iron, alumina, and other coloring or refractory impurities. Even small amounts of iron can give glass an unwanted green or brown tint, while inconsistent particle sizing can cause incomplete melting, unmelted grains, or excessive energy consumption.

In Egypt, silica sand and quartz deposits are found in several regions, including Sinai, the Eastern Desert, and Aswan. These resources offer excellent potential, but they must be processed with reliable grinding and classification equipment to meet the strict specifications of modern glass plants. The target fineness depends on the glass type. Container and float glass generally require silica sand in the range of 40 to 140 mesh, while specialty glass and high-end applications may demand finer powders, sometimes below 45 microns or even in the ultrafine range.

Quartz Grinding Requirements for Egyptian Glass Manufacturers

A quartz grinding circuit for glass production must achieve several goals at the same time: consistent output fineness, high capacity, low energy consumption, minimal contamination, and stable operation. Because quartz is highly abrasive, wear parts must be durable and easy to replace. Dust control is also essential, both for environmental compliance and for protecting workers. In addition, Egyptian producers often need equipment that can handle high temperatures, dry conditions, and variable feed moisture.

Dry grinding is commonly used for glass-grade quartz, followed by air classification to obtain a narrow particle size distribution. The grinding mill should be selected according to feed size, required fineness, capacity, and the desired level of automation. For large glass plants, a vertical mill can provide high throughput and integrated drying, while an ultrafine mill is better for producers who need very fine quartz powder for premium products.

Recommended Zenith Grinding Mills for Quartz in Egypt

Based on the demanding requirements of glass production, Shanghai Zenith Machinery recommends two products for quartz grinding in Egypt: the LM Vertical Grinding Mill and the XZM Ultrafine Grinding Mill. Both are designed for efficient, reliable, and eco-friendly powder production, but they serve different positions in the processing flow.

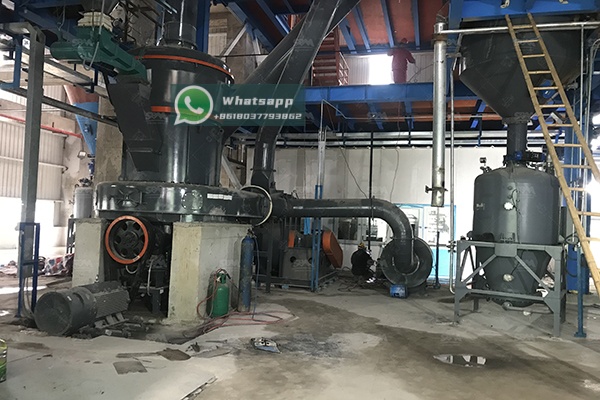

1. LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates crushing, grinding, powder selection, drying, and material conveying into a single machine. It occupies a small floor area, produces a fine final powder, and is an eco-friendly production solution. For quartz grinding in glass production, the LM Vertical Grinding Mill is an excellent choice for medium to large-scale plants. It can process quartz feed with a maximum size of up to 50 mm and deliver output fineness from 170 to 40 microns, which covers the typical requirements for glass-grade silica sand.

Key advantages include high grinding efficiency, low energy consumption, stable product quality, and low noise and dust emissions. The advanced grinding roller and grinding plate design help reduce wear and maintain consistent particle size. With capacities from 10-28 t/h on the LM130K to 50-170 t/h on the LM280K, the LM series can match the scale of many Egyptian glass production lines.

For an Egyptian glass plant that requires high-volume silica sand preparation, the LM190K or LM280K can be a strong solution. It reduces the number of auxiliary machines, simplifies the flowsheet, and supports continuous production with lower operating costs.

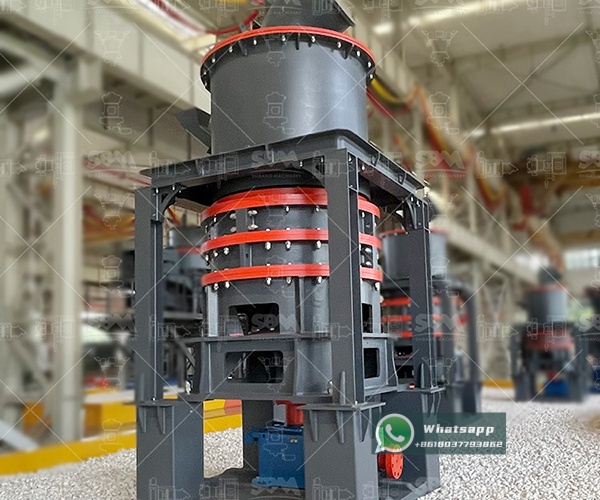

2. XZM Ultrafine Grinding Mill

The XZM Ultrafine Grinding Mill is widely used for superfine powder production. It is suitable for grinding soft or medium-hard materials with moisture content below 6%, and it can achieve an output fineness of 325-2500 mesh. When glass producers need ultrafine quartz powder for specialty glass, high-performance fillers, or advanced glass products, the XZM mill offers precise and efficient performance.

The XZM series is designed with a high-efficiency classifier and a reliable grinding system that helps ensure a narrow particle size distribution. The equipment is compact, intelligent, and easy to maintain. It is an excellent complement to a primary crushing and grinding circuit, allowing Egyptian manufacturers to produce both standard glass sand and premium ultrafine quartz powder.

How to Choose the Right Quartz Grinding Mill

Choosing the right mill requires a careful review of the entire production process. First, define the required particle size distribution. If the target is conventional glass sand, the LM Vertical Grinding Mill is often the most efficient choice because it combines drying, grinding, and classification in one system. If the target is ultrafine quartz powder, the XZM Ultrafine Grinding Mill is more appropriate.

Second, confirm the required capacity. Small and medium plants may prefer a compact solution with flexible capacity, while large float glass or container glass plants need higher throughput and continuous operation. Third, evaluate the feed material. The hardness, moisture, and impurity content of Egyptian quartz can vary by deposit, so laboratory testing and process simulation are recommended before final equipment selection.

Finally, consider service and spare parts availability. Shanghai Zenith Machinery provides complete technical support, from project consultation and flowsheet design to installation, commissioning, and after-sales service. Our engineers can help Egyptian customers configure the optimal quartz grinding plant for their specific glass production requirements.

Conclusion

Quartz is the backbone of glass production in Egypt, and its grinding performance has a direct impact on product quality and plant profitability. With the right equipment, Egyptian glass manufacturers can convert local silica sand and quartz resources into consistent, high-purity glass-grade powder. Shanghai Zenith Machinery offers advanced grinding solutions for this task. The LM Vertical Grinding Mill is ideal for high-capacity glass sand production, while the XZM Ultrafine Grinding Mill is designed for premium ultrafine quartz powder. By combining reliable equipment, intelligent control, and professional service, Zenith can support the growth and competitiveness of Egypt’s glass industry.
