Introduction
Turkey has long been one of the world’s leading producers of ceramic tiles, with an industry that demands superior raw materials and advanced processing technologies. Kaolin, a naturally occurring white clay, is essential for ceramic tile body, engobe, and glaze formulations. Its whiteness, plasticity, and firing properties directly affect the quality of finished tiles. To unlock these properties, kaolin must be ground to a precise fineness using a reliable and efficient kaolin grinding mill. Shanghai Zenith Machinery Co., Ltd. has built a global reputation by delivering state-of-the-art powder grinding equipment for mineral processing, including high-performance mills that have proven ideal for kaolin grinding in Turkey’s ceramic tile sector. From small modular units to large-capacity systems, Zenith’s machinery is engineered to meet the demanding requirements of the modern ceramic industry.
The Role of Kaolin in Turkey’s Ceramic Tile Industry
Turkey’s ceramic tile manufacturers rely heavily on kaolin to achieve bright surfaces, high mechanical strength, and consistent dimensional stability. In particular, Turkish tile producers often specify kaolin brightness above 80%, which requires careful grinding to avoid contamination. Kaolin acts as a source of alumina in ceramic bodies, improving their refractory behavior and final whiteness. For glaze applications, ultra-fine kaolin ensures smooth surface finish and better color development. However, the natural clay often contains impurities and requires beneficiation and grinding to meet the strict specifications of tile producers. A modern grinding mill must be able to remove oversize particles, provide a narrow particle size distribution, and do so at a competitive cost per ton.
Key Challenges in Kaolin Processing
Kaolin grinding presents several challenges. First, kaolin can be abrasive due to sand and quartz impurities, which accelerates wear on grinding components. Second, moisture content must be controlled because moisture affects flowability and classification efficiency. Third, the target fineness varies by application: ceramic bodies often require 200–325 mesh (74–45 µm), while glazes and coating grades may need 800 mesh or finer. Finally, energy consumption and maintenance downtime are critical economic factors. In addition, the mill must be able to operate continuously and safely in harsh environments. Therefore, selecting the right kaolin grinding mill is as important as the grinding process itself.
Zenith Machinery’s Kaolin Grinding Solutions
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. Specializing in research, development, and production, Zenith offers a complete range of industrial mills, including the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Ball Mill, and Hammer Mill. For Turkish ceramic tile producers, the MTW and XZM series are especially well suited to kaolin grinding, combining high capacity, fine output, and low operating costs. With decades of application experience, Zenith can provide complete plant engineering and on-site commissioning services.

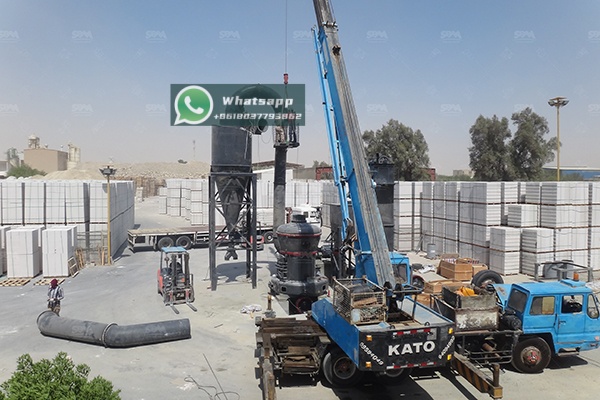

Recommended Product 1: MTW Trapezium Grinding Mill
The MTW Trapezium Grinding Mill is Zenith’s flagship product for medium-fine powder processing. It features multiple patents, a compact structure, and a long service life. For kaolin used in ceramic tile bodies and engobes, the MTW mill can produce powder with a fineness ranging from 1.6 mm down to 0.045 mm (approximately 30–325 mesh). Its maximum feed size of up to 50 mm allows direct grinding of run-of-mine kaolin after simple crushing, eliminating the need for secondary crushing. The grinding roller and ring are made of wear-resistant alloy, which is important when processing kaolin containing quartz impurities. This extends service intervals and reduces downtime for Turkish ceramic plants during peak production.
Key specifications of the MTW series include:
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
With an intelligent centralized control system and a unique air-purged sealing structure, the MTW mill minimizes dust and noise. For a medium-sized Turkish tile plant, an MTW175G or MTW215G can provide a reliable, high-output solution for kaolin body preparation.

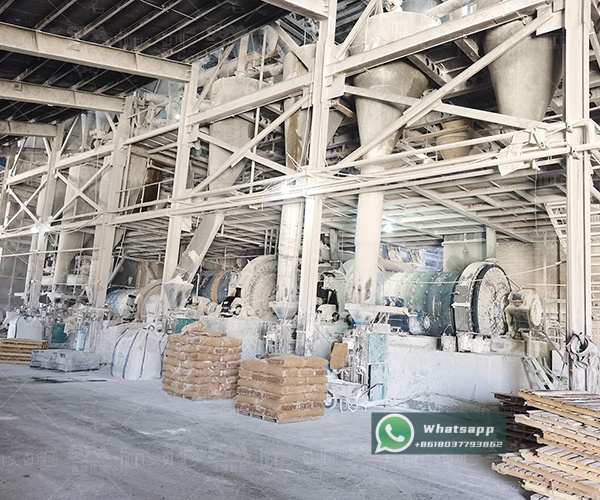

Recommended Product 2: XZM Ultrafine Grinding Mill
For ceramic tile manufacturers that need ultra-fine kaolin for glaze, filler, or polishing applications, the XZM Ultrafine Grinding Mill is an excellent choice. It is widely used for superfine powder production and can process soft or medium-hard materials with moisture below 6%. The XZM mill delivers an output fineness of 325–2500 mesh, giving Turkish producers the flexibility to make premium kaolin powders for high-end tile surfaces. The classifier speed is adjustable, enabling operators to change fineness instantly according to production requirements. This is essential for factories that produce both body and glaze-grade kaolin from the same line.
Key specifications include:
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM mill features a high-pressure blower and multi-stage classifying system, ensuring a steep particle size distribution. Whether used as a standalone unit or in combination with an MTW mill for coarse grinding, the XZM series helps ceramic tile factories maximize raw material utilization and product consistency.
Why Choose Zenith Machinery
Zenith Machinery is a trusted name in the global mining and powder processing industry. The company’s research and development team continuously improves mill efficiency, wear life, and automation. Unlike ordinary equipment suppliers, Zenith designs complete grinding plant solutions, including feeders, classifiers, dust collectors, and control panels. This integrated approach ensures stable production and easy maintenance. In addition, Zenith’s after-sales support includes technical training, spare parts supply, and process optimization, which is invaluable for ceramic tile plants in Turkey that demand high uptime.
Conclusion
The success of Turkey’s ceramic tile industry depends on consistent raw material quality and efficient processing. Kaolin grinding is a critical step that affects both cost and final product performance. With advanced milling technology and dedicated engineering support, Shanghai Zenith Machinery Co., Ltd. offers the MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill as proven solutions for Turkish ceramic tile producers. From body preparation to ultra-fine glaze powders, Zenith equipment helps manufacturers achieve precisely the fineness, capacity, and energy efficiency they require. For any kaolin grinding project in Turkey, Zenith’s mills are a reliable investment in quality and profitability.
