Quartz milling line for Bangladesh high purity silica

Introduction

Bangladesh’s rapidly growing glass, ceramics, and renewable energy industries have created a strong demand for high purity silica. Quartz, a common mineral, is often used in its milled form to produce silica powder for manufacturing glass fibers, solar panels, float glass, tableware, and electrical insulation. However, producing high purity silica is not simply a matter of crushing rocks. It requires a carefully designed milling line that ensures consistent particle size, minimum contamination, and stable throughput. As an excellent manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. has built a global reputation in ultra-fine powder grinding and offers complete quartz milling solutions for Bangladesh.

The Importance of High Purity Silica in Bangladesh

High purity silica is defined by two key indicators: SiO2 content and particle size distribution. In Bangladesh, the ceramic industry consumes large quantities of silica powder for body and glaze formulations. Glass manufacturers need silica sand or powder with a high SiO2 level and an appropriate particle size for melting. Emerging industries, such as photovoltaic glass and electrical-grade castings, demand highly controlled particle size with extremely low iron and contamination levels. Because local quartz resources have different qualities, the milling line must be adjustable and efficient.

Traditional milling equipment often causes excess iron contamination due to high wear. In high purity applications, any addition of iron or other impurities is unacceptable. Therefore, the selection of grinding equipment is central to the success of a quartz milling line. Zenith’s mills have been engineered with material selection and structure optimization in mind, enabling operators to achieve both high capacity and high purity. With the right line, Bangladesh’s manufacturers can reduce imports and produce locally high-grade silica products.

Core Process of a Quartz Milling Line

A complete quartz milling line includes raw quartz feeding, crushing, grinding, classifying, and dust collection. The raw lumps are first reduced by a crusher to a size suitable for the mill. Then the crushed quartz is transported to the grinding mill, where rollers and rings, or grinding rollers and a table, crush and grind the material to the desired fineness. The internal classifier sifts the powder; coarse particles return to the grinding zone while fine powder is conveyed by airflow to a cyclone and bag filter.

For high purity silica, dry processing is preferred because it minimizes water-related impurities and simplifies downstream handling. The system is operated under negative pressure to prevent dust leakage. Because quartz is highly abrasive, all contact parts in the mill and conveying system must be protected. Shanghai Zenith’s equipment is known for its durable wear parts and low maintenance needs. This is particularly important for Bangladesh, where continuous production and reliable operation are critical to profitability.

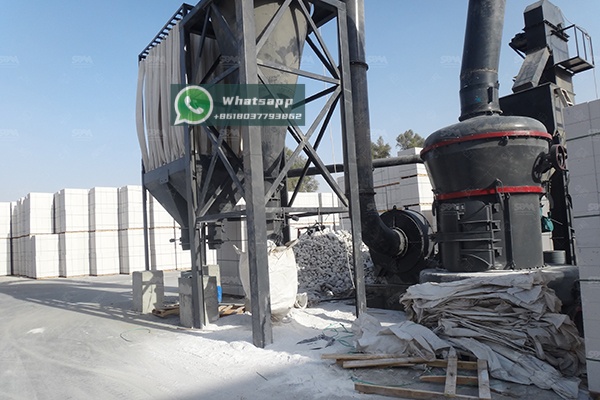

Below is a typical process flow for a quartz milling line:

Recommended Grinding Equipment for High Purity Quartz

Zenith offers a broad range of grinding mills that can be used in quartz milling. Among them, two products stand out for Bangladesh’s high purity silica applications.

The first is the MTW Trapezium Grinding Mill. This mill has multiple patents and is designed for compact structure, long service life, and environmental protection. It can accept a maximum feed size of 50 mm and produce powder from 1.6 mm down to 45 microns, which corresponds to 325 mesh. The trapezium-shaped grinding ring and roller enlarge the grinding surface and improve grinding efficiency. The internal high-efficiency classifier ensures uniform fineness, which is essential for high quality silica products. For a mid-size project in Bangladesh, the MTW175G or MTW215G mill is a robust core machine.

The second recommended product is the LUM Ultrafine Vertical Mill. When high purity silica must be milled to ultra-fine grades, especially for high-tech applications such as fiberglass, electronic encapsulation, or solar photovoltaic glass, the LUM mill is an excellent choice. It integrates grinding, drying, classifying, and transportation in one compact unit. The LUM series reaches D97 from 5 to 30 microns, with capacity up to 15 tons per hour. The vertical arrangement significantly reduces floor area, simplifying plant layout and installation. In addition, its hydraulic system and intelligent control make operation convenient and stable.

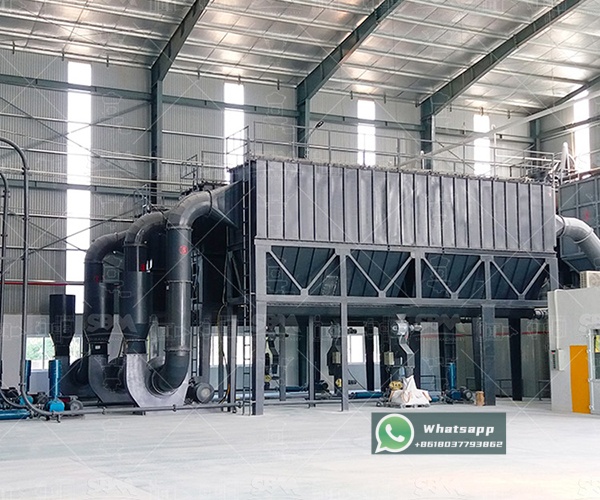

The following image shows the MTW and LUM mills commonly deployed in high purity silica production lines:

Key Technical Parameters

To make the selection easier for project managers in Bangladesh, the key parameters of preferred models are listed below.

• MTW175G Trapezium Mill: maximum feed size 40 mm, final size 1.6-0.045 mm, capacity 9.5-25 t/h, main motor 160 kW.
• MTW215G Trapezium Mill: maximum feed size 50 mm, final size 1.6-0.045 mm, capacity 15-45 t/h, main motor 280 kW, fan motor 315 kW.
• LUM1836 Ultrafine Vertical Mill: main motor 355-400 kW, capacity 2.3-15 t/h, product fineness D97 from 5 to 30 microns.

Two-Stage Milling Strategy for Maximum Yield

Some Bangladesh plants want to produce multiple grades of silica powder from one line. A two-stage solution can use the MTW mill as the primary or coarse grinding unit to produce 0.1-0.045 mm material. The classified coarse powder can be sold as ceramic-grade silica or blended. Part of the product is then fed to the LUM mill for ultra-fine grinding if needed. This approach improves overall efficiency and enables a plant to respond to fluctuating market demand. Zenith can design the complete line with bucket elevators, vibrating screens, silos, and dust collectors, ensuring that every stage from feeding to final packaging is automated and contamination-free.

High Purity and Quality Assurance

In high purity silica production, the milling equipment must not introduce impurities. Zenith addresses this through several design features. The grinding rollers and tables or rings are manufactured with premium wear-resistant materials, and the mill body is sealed to prevent external pollutants. Moreover, the air classifier is adjusted to achieve a precise particle size cut, reducing oversized particles and batch-to-batch variation. For Bangladesh’s growing ceramic and glass sectors, these quality advantages directly translate into stronger product competitiveness.

Why Choose Zenith for Quartz Milling in Bangladesh

Zenith is not only an equipment supplier but also a solutions provider. With years of experience in ore grinding, Zenith has helped many customers design and operate mineral powder plants. For Bangladesh, Zenith offers several specific advantages. First, the high capacity and energy-efficient mill design reduce operating costs. Second, the compact structure and modular accessories allow quick installation in local industrial zones. Third, professional engineers support every project from selection to commissioning. Finally, a complete range of mills allows customers to expand or adjust their production line as market demand changes.

Conclusion

As Bangladesh continues to industrialize, the local production of high purity silica will play an increasingly important role. A modern quartz milling line from Shanghai Zenith Machinery Co., Ltd. can help manufacturers achieve high output, stable quality, and low contamination. For conventional silica powder from 1.6 mm to 45 microns, the MTW Trapezium Grinding Mill is a reliable and efficient choice. For ultra-fine high purity products, the LUM Ultrafine Vertical Mill offers exceptional particle size control and compact operation. By combining proven equipment, process engineering, and service support, Zenith is ready to help Bangladesh’s high purity silica industry grow sustainably and profitably.
