Introduction: Kaolin and Nigeria’s Ceramics Manufacturing
Nigeria is one of Africa’s most promising markets for ceramics. With growing urbanization, the demand for ceramic tiles, sanitaryware, and tableware continues to rise. Kaolin, often called china clay, is a fundamental raw material in this industry, prized for its whiteness, low plasticity, and high refractoriness. However, raw kaolin as mined is not directly usable. It must be crushed, dried, ground, and classified to achieve the particle size and purity required by ceramic body formulations and glaze recipes.
Choosing the right grinding mill is therefore a strategic decision for Nigerian ceramics producers. A reliable mill ensures consistent product quality, higher throughput, lower energy consumption, and reduced maintenance downtime. Shanghai Zenith Machinery Co., Ltd. has developed advanced grinding equipment that is particularly effective for processing kaolin, and this article focuses on how Zenith’s MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill can help transform Nigeria’s ceramics manufacturing industry.
Understanding Kaolin and Its Grinding Requirements
Kaolin is a hydrated aluminum silicate with the chemical formula Al2Si2O5(OH)4. In ceramics, it provides the necessary plasticity during shaping and contributes to the final whiteness and mechanical strength after firing. The quality of kaolin powder depends on particle size distribution, surface area, and absence of impurities. For most ceramic applications, kaolin is ground to a fineness of 200 mesh to 325 mesh. For special products such as porcelain and engineering ceramics, even finer powders of 600 mesh or beyond are required.
The grinding process must also handle the abrasive nature of quartz impurities often present in Nigerian kaolin. Therefore, the mill components must be wear-resistant and the design must allow easy replacement of wearing parts.
Challenges in the Nigerian Context
Nigerian ceramics producers face a unique set of challenges. Power supply is unreliable, so equipment must be energy-efficient and capable of stable operation under variable conditions. Distribution and logistics can be complex, so machines must be compact and robust to minimize installation costs. The local kaolin deposits are diverse, with varying moisture content and impurities; therefore, the grinding mill must accept a wide range of feed materials and provide easy adjustment of output fineness.
Additionally, as global ceramic markets become more competitive, Nigerian manufacturers need to improve product quality while reducing cost. Modern grinding technology from Zenith can directly address these needs.
Shanghai Zenith: Expertise in Grinding Technology
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment. Its product range includes the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. Zenith grinding mills are backed by years of field experience and are designed with advanced manufacturing technology. Their performance in processing non-metallic minerals such as kaolin has been widely recognized.
Recommended Product 1: MTW Trapezium Grinding Mill
The MTW Trapezium Grinding Mill is a flagship product of Zenith, featuring multiple patents and a compact, environmentally friendly design. It is ideal for kaolin grinding because it combines grinding and classification in one energy-saving system. The mill is suitable for feed sizes up to 50 mm and can produce final powder from 1.6 mm down to 0.045 mm (approximately 325 mesh).
MTW Series Key Specifications
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
As shown in the table, the MTW110 and MTW110Z are excellent entry-level models for medium-capacity Nigerian plants, producing 3 to 10 t/h of fine kaolin powder. For larger operations, the MTW138Z or MTW175G provide higher throughput. The internal high-efficiency classifier ensures a uniform final product, which is essential for stable ceramic body properties. Additionally, the trapezium-shaped grinding ring increases the grinding area, improving output per unit of motor power.

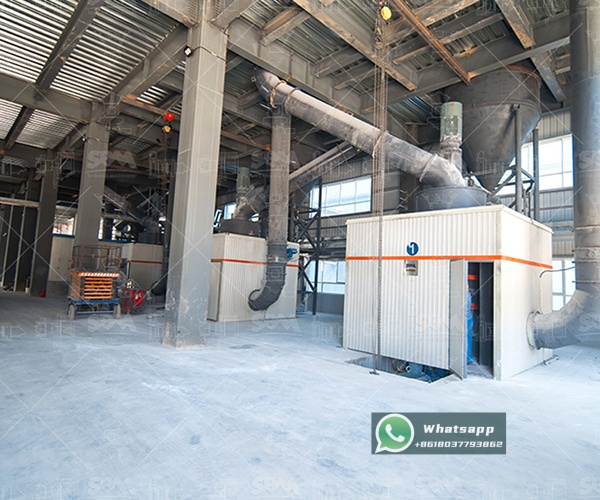

Recommended Product 2: XZM Ultrafine Grinding Mill
When Nigerian ceramics manufacturers want to produce premium kaolin powder for high-end products, the XZM Ultrafine Grinding Mill is the optimal solution. The XZM mill is designed for superfine powder production and can grind kaolin to a fineness ranging from 325 mesh to 2500 mesh (about 5 to 40 microns). This makes it suitable for ceramic glazes, porcelain, and other value-added applications. It handles soft to medium-hard materials with moisture below 6 percent, which covers most beneficiated kaolin.
XZM Series Key Specifications
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM221 can produce 500 to 4,500 kg/h depending on fineness, while the larger XZM268 offers throughput of 5,000 to 25,000 kg/h for coarser settings. Its multi-roller design and pressurized lubrication system ensure stable operation under continuous production conditions. By integrating the XZM mill into a production line, manufacturers can upgrade their kaolin to a superfine product with higher market value.
Selecting the Right Mill for Your Ceramics Plant
The choice between MTW and XZM depends on the target product and investment scale. If the plant primarily produces ceramic wall tiles and sanitaryware requiring 200-325 mesh kaolin, the MTW Trapezium Grinding Mill provides reliable performance with lower investment and operating cost. If the manufacturer intends to diversify into porcelain, engobe, or glaze production, adding an XZM Ultrafine Grinding Mill can create new revenue opportunities. Many successful operations start with an MTW mill and later add an XZM mill to expand product lines.
Zenith also offers complete systems including feeding, conveying, and dust collection. Nigerian clients can benefit from Zenith’s technical support, spare parts availability, and after-sales service. The company’s experience in tropical and challenging environments ensures that equipment is robust and easy to maintain.
Conclusion
Nigeria’s ceramics manufacturing sector is poised for growth, and kaolin grinding is at the heart of efficient, high-quality production. With the right equipment, local kaolin can be transformed into a valuable raw material for domestic and export markets. Shanghai Zenith Machinery Co., Ltd. provides world-class grinding solutions, especially the MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill, which have proven performance and are available with complete technical support. By investing in Zenith grinding mills, Nigerian ceramics manufacturers can achieve superior product quality, lower energy costs, and greater profitability.
Contact Zenith today to find the ideal kaolin grinding mill for your ceramic production line.
