Marble grinding mill for 600 mesh powder in Zambia

Marble Grinding Demand in Zambia

Zambia is a country with growing mining, manufacturing and infrastructure sectors. Marble quarries and processing workshops produce dimension stone, tiles, slabs and decorative pieces. However, a large amount of marble scrap and fine rejects is generated at every cutoff, edging and polishing stage. With the right grinding technology, these side streams can be converted into 600 mesh marble powder, a saleable filler widely used by paint, coating, paper, plastic, rubber, toothpaste and agricultural industries. Processors in Zambia who invest in a dedicated marble grinding mill for 600 mesh powder can therefore add value to wasted stone and reduce dependency on imported fillers. The economic case becomes stronger when the plant also refines high-quality marble block trims into a consistent powder with controlled whiteness and particle size.

Marble, geologically, is a metamorphic rock rich in calcium carbonate. For industrial use, it must be crushed, ground and classified. The target of 600 mesh is often quoted by paint and paper producers because at about 23 microns the powder can serve as a high-opacity extender or filler without weakening the final product. Yet 600 mesh powder is not easy to produce with ordinary pendular mills if strict top size and throughput requirements are expected. A mill with an efficient internal classifier, dust collection and stable grinding pressure is necessary. This is why the equipment choice has a long-term effect on a milling project in Zambia.

Changing Marble Waste into 600 Mesh Filler

A modern milling line turns marble into fine powder in four stages: primary crushing, feeding, grinding and classifying. A jaw crusher or hammer mill reduces marble to particles below 20 to 30 millimetres. Then a bucket elevator and vibrating feeder transport the material to the mill. Inside the mill, grinding rollers or rings repeatedly press the marble against grinding tables or rings. The classified air flow carries only the fine particles that reach the required fineness to the collector. Oversize particles return for further grinding. The final powder is stored in silos and packed in valve bags, ready for dispatch.

For Zambian operators, the main difficulty is not the basic process but choosing a mill that can maintain output while meeting the product lifetime requirements. The material contains calcium carbonate; its Mohs hardness is about 3. In dry grinding, there is no slurry handling, but the powder can be fluidised and must be collected by a high-efficiency dust collector. Therefore, a compact, pneumatic and well-sealed design is beneficial. In addition, energy cost and maintenance downtime are major considerations. A mill that has fewer re-circulating loads, a robust classifier, easy access to internal parts and strong wearing materials will be more profitable under Zambian field conditions.

Why Zenith Grinding Mills Are Suitable for Zambia

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company is specialized in research, development and production of industrial powder grinding equipment. Zenith’s main products include MTW trapezium mill, MTM medium-speed mill, Raymond mill, LM vertical mill, LUM ultrafine vertical mill, XZM ultrafine grinding mill and dry ball mills. This broad portfolio means that Zenith can provide not just one machine, but an integrated solution from feeding and grinding to classifying, conveying and bagging.

For the precise requirement of 600 mesh marble powder, Zenith’s most relevant equipment series are the XZM Ultrafine Grinding Mill and the LM Vertical Fine-powder Mill. These mills support automatic adjustment of product fineness, low environmental pollution and good energy efficiency. Their classifiers and grinding parts are designed to handle calcium carbonate and marble at feed moisture below 6%. The entire powder collection point can be linked with a pulse-jet dust collector so that the plant meets the current standards for clean production.

XZM Ultrafine Grinding Mill: A Practical Choice for 600 Mesh Output

The XZM series is widely used for superfine powder production and is suitable for grinding soft or medium-hard materials with moisture below 6%. It is an established mill in the non-metallic mineral industry around the world. In one compact unit, it combines a grinding chamber, an efficient classifier and a cyclone collection system.

According to Zenith’s published technical parameters, two main XZM models are available. The XZM221 has a working diameter of 800 mm, accepts feed up to 20 mm, produces powder between 325 and 2500 mesh, has an output of 500 to 4500 kg/h, and uses a 75 kW main motor. The XZM268 has a working diameter of 1680 mm, also accepts feed up to 20 mm, produces 325 to 2500 mesh powder, and offers an output range of 5000 to 25,000 kg/h using a 315 kW main motor. For medium-sized Zambian plants, the XZM221 can be a good entry solution. For larger producers, the XZM268 can feed a complete filler production line and supply several downstream plants.

The XZM series is particularly appreciated for marble because the finished powder has high consistency and a controlled oversize residue. The mill can also be arranged to produce multiple grades by adjusting the classifier speed. Another advantage is the relatively small footprint compared with a conventional ball mill plus external classifier system. This reduces civil engineering and roofed area requirements. Since Zambia’s infrastructure projects are often located in new industrial zones, a compact grinding line makes it faster to install and commission.

LM Vertical Fine-Powder Mill: High Capacity and Integrated Operation

If the Zambian project needs a larger throughput, better integration with drying and simplified maintenance, the LM Vertical Fine-powder Mill series is the second recommended solution. The LM vertical mill integrates five functions: crushing, grinding, powder selection, drying and material conveying in one machine. It has a small occupational area and a relatively cleaner process because the material is ground and transported in closed circuits with mechanical and pneumatic streams.

Zenith’s LM130X-GX and LM220X-GX are designed with 325 to 600 mesh D97 output fineness, exactly matching the 600 mesh requirement. The LM130X-GX has a grinding table diameter of 1300 mm, a capacity of 4 to 12 t/h and a main motor of 220 kW. The LM220X-GX has a 2200 mm grinding table, capacity of 15 to 30 t/h and main motor of 560 kW. These capacities make the LM vertical mill attractive for plants that process waste industrial minerals from several quarries or need to meet regular supply contracts with paint or paper factories.

The LM machine also offers energy saving and high grinding efficiency. Because it uses a vertical rolling grind system and no heavy medium charge, power consumption is often lower than old technology. The large internal separator is adjustable, allowing staff to make minor changes without stopping too long. This is an important benefit for an in-country marble powder plant where local maintenance teams still need to learn the equipment. Zenith can provide clear drawings, supervision and training during installation and commissioning, and the wearing parts can be ordered according to the maintenance plan.

Complete Marble Grinding Line in Zambia

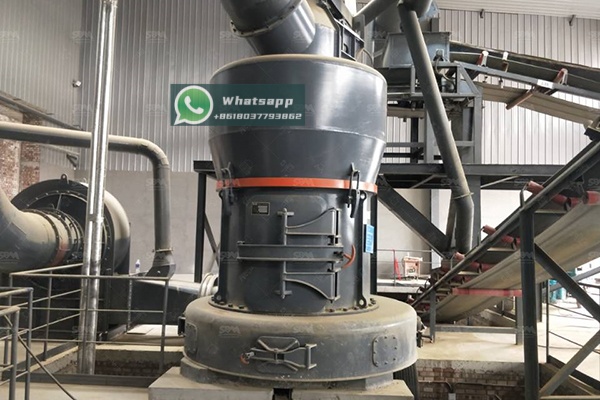

A complete line recommended by Zenith may consist of a jaw crusher, bucket elevator, storage bin, electromagnetic feeder, XZM ultrafine mill or LM vertical mill, classifier, bag dust collector, induced draft fan, discharge valve, conveying screw and control panel. From raw stone to 600 mesh finished powder, the line can be started and stopped from a centralized control cabinet. For operators in Zambia, this automatic operation reduces manpower and quality inconsistency. For high whiteness products, the powder is collected in a clean room or packed through rotary valve to prevent contamination.

Zambian mining companies, local cement producers, paint makers and mineral processors can benefit from local marble grinding capacity. At 600 mesh, marble powder has broad market use and can be bagged in 25 kg or 50 kg packs, or supplied in bulk tankers. This opens opportunities in export markets as well as domestic filler supply. Because the raw material is available locally, production cost is mainly energy and wear parts, which can be optimised by selecting the right mill and maintaining it well.

Conclusion

For every investor who asks which marble grinding mill for 600 mesh powder in Zambia should be selected, Zenith offers a professional answer based on material tests and production targets. The XZM Ultrafine Grinding Mill is a first-class solution for medium-scale superfine powder production; the LM Vertical Fine-powder Mill is an integrated high-capacity solution. Both products are supported by Shanghai Zenith’s strong R&D, engineering and manufacturing capabilities in industrial powder grinding. By choosing the right equipment, Zambian processing plants can turn abundant marble stone into premium 600 mesh powder and capture a growing filler market in southern Africa.
