Dolomite mill for agriculture lime in India

Introduction: Dolomite Lime and Indian Agriculture

India has a wide range of agro-climatic zones, and acidic soils are common in many states, including Kerala, Karnataka, Odisha, Assam, West Bengal, Jharkhand, Chhattisgarh, and parts of the North-East. These soils often suffer from low pH, aluminum toxicity, and poor nutrient availability. Dolomite, a natural mineral composed of calcium magnesium carbonate (CaMg(CO3)2), is an important raw material for agricultural lime. When finely ground, dolomitic lime neutralizes soil acidity and supplies both calcium and magnesium. Magnesium is essential for chlorophyll formation, enzyme activation, and crop quality, especially for oilseeds, pulses, and plantation crops. As a result, demand for high-quality dolomite agricultural lime in India continues to grow, supported by soil health programs and state subsidies for lime application.

What Makes a Good Dolomite Mill for Agricultural Lime?

Agricultural lime quality depends on chemical purity, neutralizing value, moisture content, and particle size distribution. Finer particles react faster in soil, but overgrinding increases production cost. Many Indian specifications call for 80 to 100 mesh material, with a high percentage passing 100 mesh. Some premium products target 200 mesh or finer. Dolomite is moderately hard, with a Mohs hardness of about 3.5 to 4. It is brittle but abrasive, so the grinding equipment must offer stable capacity, low energy consumption per ton, and reliable wear protection. Dust control, easy maintenance, and availability of spare parts are also critical for Indian producers.

Dolomite Grinding Process: From Quarry to Field

A typical dolomite agricultural lime plant includes crushing, screening, grinding, classification, dust collection, storage, and bagging. Primary crushing with a jaw crusher reduces run-of-mine dolomite to suitable feed size, usually below 30 to 50 mm. The grinding mill then produces fine powder. Air classifiers control the top size, while bag filters capture dust. Moisture above 6 to 8 percent may require drying, especially during the monsoon season. Large plants often use vertical mills with integrated drying, while medium plants may prefer trapezium mills for flexible product changes.

Recommended Zenith Equipment for Dolomite Agricultural Lime in India

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment. For dolomite agricultural lime in India, two Zenith mills are particularly suitable: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

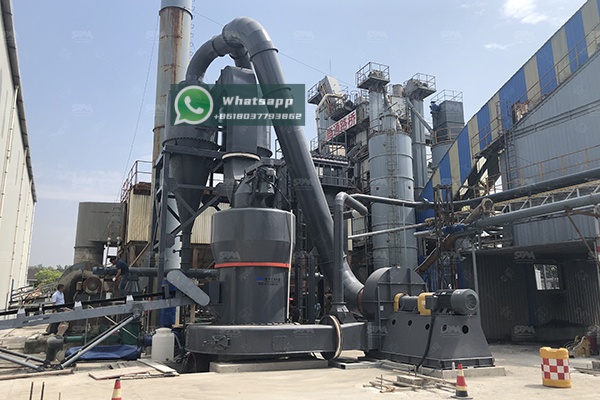

MTW Trapezium Grinding Mill: Flexible and Eco-Friendly

The MTW Trapezium Grinding Mill is a patented machine known for its compact structure, long service life, and eco-friendly design. It accepts a maximum input size of 50 mm and can produce final product as fine as 0.038 mm. For agricultural lime, it can reliably produce 80 to 200 mesh powders. Models such as MTW138Z and MTW175G are excellent choices for Indian medium-to-large lime plants. The MTW138Z offers 6 to 17 t/h capacity with a 90 kW main motor and 110 kW fan motor. The MTW175G offers 9.5 to 25 t/h with a 160 kW main motor and 200 kW fan motor. Its efficient classifier and stable grinding system help control fineness while reducing energy waste. Optional dust collection and drying support cleaner, more sustainable production.

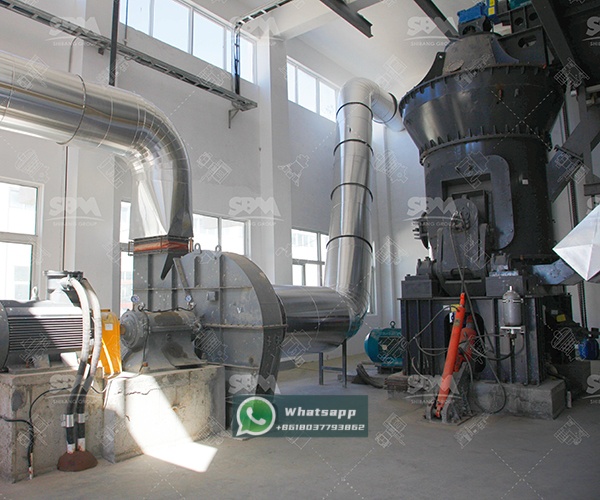

LM Vertical Grinding Mill: High-Capacity and Integrated

For large-scale dolomite agricultural lime production, the LM Vertical Grinding Mill is a powerful solution. It integrates crushing, grinding, powder selection, drying, and material conveying into one system. It occupies a small area, produces a fine final powder, and is an eco-friendly production solution. The vertical mineral mill series is well suited to dolomite processing. The LM130K provides 10 to 28 t/h with output fineness of 170 to 40 μm and a 200 kW main motor. The LM190K provides 23 to 68 t/h with a 500 kW main motor. The LM280K provides 50 to 170 t/h with a 1250 kW main motor. These capacities are ideal for centralized grinding stations and large commercial lime plants in India. The integrated drying system helps manage monsoon moisture, while the adjustable classifier can meet 100 to 200 mesh agricultural lime specifications.

Choosing Between MTW and LM for Indian Dolomite Lime

Selecting the right mill depends on project scale, target fineness, raw material moisture, and available power. The MTW Trapezium Grinding Mill is often preferred for medium capacity, flexible product size, lower initial investment, and simpler installation. The LM Vertical Grinding Mill is better for high capacity, lower specific energy consumption, integrated drying, and a compact footprint. Both machines can process dolomite for agricultural lime, and both are supported by Zenith’s engineering, installation, and spare parts services. For Indian producers, local service response and long-term wear part supply are important advantages.

Quality Control and Agronomic Performance

Mill settings directly affect the agronomic value of dolomite lime. Regular sampling should check fineness, calcium carbonate equivalent, MgO content, CaO content, and moisture. Under-grinding reduces soil reaction speed, while over-grinding raises cost without proportional field benefit. Producers should target the mesh size required by state agriculture departments or soil testing laboratories. Dry storage and moisture-proof packaging prevent caking. For efficient field application, dolomite lime should be spread evenly and incorporated into the soil according to soil test recommendations.

Environmental and Operational Best Practices

Dolomite grinding generates dust, so bag filters, enclosed conveyors, and water sprays are essential. Noise control and proper ventilation improve workplace safety. A planned maintenance schedule for rollers, grinding rings, classifier blades, and fan components reduces downtime. Energy efficiency can be improved with variable frequency drives and optimized classifier settings. In India, motors and electrical components should be selected for local power conditions, and operators should receive training on startup, shutdown, and emergency procedures. These practices help producers meet environmental norms and maintain consistent output.

Conclusion: Partner with Shanghai Zenith for Dolomite Agricultural Lime in India

India’s acidic soils and growing focus on sustainable agriculture create strong demand for quality dolomite agricultural lime. Efficient grinding is the key to producing reactive, cost-competitive lime powder. Shanghai Zenith Machinery Co., Ltd. offers proven equipment for this market, especially the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. With capacities from 6 t/h to 170 t/h, these mills can serve small cooperative plants, medium enterprises, and large commercial lime producers. By combining advanced grinding technology, dust control, and reliable service, Zenith helps Indian producers turn dolomite resources into valuable agricultural lime. For customized process design and equipment selection, contact Shanghai Zenith Machinery Co., Ltd. today.
