Kaolin grinding mill for ceramics clay preparation in Vietnam

Introduction

Vietnam has a rapidly growing ceramics industry, supported by long-established production centers such as Bat Trang, Bien Hoa, and Chu Dau. The country manufactures sanitaryware, wall and floor tiles, dinnerware, art ceramics, and advanced ceramic products for domestic and export markets. Kaolin, also known as china clay, is one of the most important raw materials in ceramic clay preparation. Its whiteness, plasticity, refractoriness, and chemical stability influence forming, drying, firing, and final product quality. To obtain consistent ceramic bodies and glazes, Vietnamese producers need reliable kaolin grinding mills that can control particle size, reduce contamination, and maintain high output. This article discusses kaolin grinding mill solutions for ceramics clay preparation in Vietnam and recommends equipment from Shanghai Zenith Machinery Co., Ltd.

Why Kaolin Is Critical for Ceramic Clay Preparation

Kaolin is a hydrated aluminum silicate mineral, mainly composed of kaolinite. In ceramic bodies, it contributes alumina and silica, improves firing strength, controls shrinkage, and supports whiteness. In glazes and engobes, fine kaolin helps suspension stability, surface smoothness, and gloss. Vietnamese ceramic producers use kaolin in porcelain, sanitaryware, tiles, tableware, and decorative ceramics. The quality of kaolin depends on mineralogy, particle size distribution, iron and titanium content, moisture, and associated minerals such as quartz and mica.

For ceramic clay preparation, over-coarse kaolin particles can reduce plasticity and sintering activity. Over-fine particles may increase shrinkage and cracking during drying or firing. Therefore, the grinding process must achieve a controlled top size and a stable particle size distribution. Typical ceramic body preparation requires 200 to 325 mesh, approximately 0.075 mm to 0.045 mm. Glazes and advanced ceramic products may require 800 to 2500 mesh. This wide fineness range means that different mills may be needed for different product lines.

Key quality targets for ceramic kaolin

• Controlled top size, usually below 45 to 75 microns for body preparation.
• Narrow particle size distribution for consistent forming and firing.
• Low iron and titanium content to maintain whiteness.
• Moisture below 6% for stable dry grinding.
• Reliable output capacity to match mixers, blungers, and spray dryers.

Vietnam-Specific Processing Challenges

Vietnam has kaolin resources in several provinces, but ore quality varies from deposit to deposit. Some kaolin contains quartz, mica, iron oxides, and organic matter that must be removed or controlled. The tropical monsoon climate can also create challenges. High humidity may make raw kaolin sticky, causing feeding and grinding difficulties. Dust control, noise reduction, energy efficiency, and wear part life are also important for sustainable production. A well-designed kaolin processing plant should combine crushing, grinding, classification, iron removal, storage, and blending. The grinding mill must handle abrasive minerals, maintain fineness, and allow easy maintenance. Shanghai Zenith Machinery Co., Ltd. has developed industrial powder grinding equipment for such conditions, with proven solutions for medium-fine and ultrafine kaolin processing.

Grinding Mill Selection for Kaolin Clay

In ceramics clay preparation, the grinding stage is the heart of the plant. The right mill balances capacity, fineness, energy consumption, wear parts life, and product consistency. Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and other related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For most Vietnamese ceramic clay preparation lines, the MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill are highly recommended.

Recommended Product 1: MTW Trapezium Grinding Mill

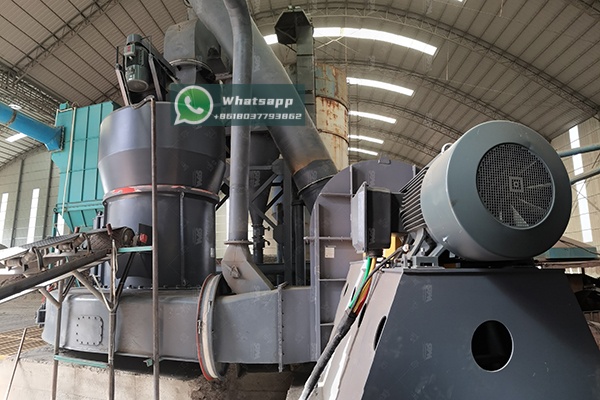

The MTW Trapezium Grinding Mill is a patented, compact, and eco-friendly mill. It is suitable for kaolin grinding from coarse to medium-fine powder, with final product size adjustable from 1.6 mm to 0.045 mm. This range covers 200 to 325 mesh ceramic body preparation and many glaze recipes. The MTW mill features a bevel gear transmission, internal thin oil lubrication, curved blade, and high-efficiency classifier. It produces a stable particle size distribution, reduces downtime, and improves powder quality. For Vietnamese ceramics plants, MTW138Z and MTW175G are popular choices for medium and large capacities.

With a capacity from 3 t/h to 45 t/h, the MTW series can serve small art pottery workshops as well as large tile and sanitaryware factories. It can be combined with a pulse dust collector to meet environmental standards, and its wear-resistant materials reduce maintenance costs when processing abrasive kaolin.

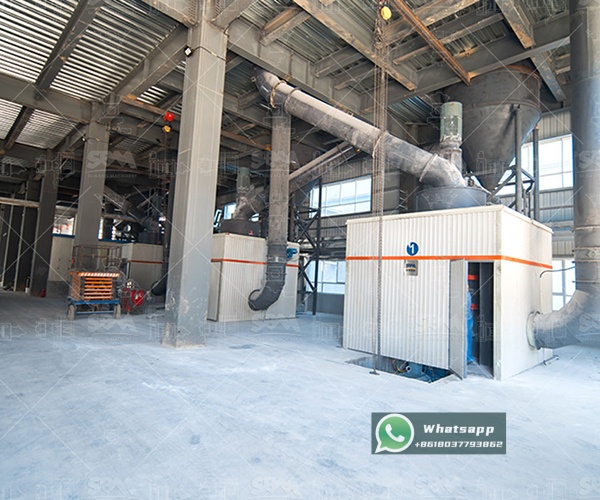

Recommended Product 2: XZM Ultrafine Grinding Mill

For high-value ceramic glazes, engobes, and advanced ceramic products, ultrafine kaolin is often required. The XZM Ultrafine Grinding Mill is designed for superfine powder production and can achieve 325 to 2500 mesh. It is suitable for soft or medium-hard materials with moisture content below 6%. Its high-efficiency classifier and optimized grinding chamber produce a high proportion of fine particles while controlling top size. The XZM221 and XZM268 models offer flexible capacities from 500 kg/h to 25,000 kg/h, making them suitable for specialized glaze lines and large-scale ultrafine kaolin plants.

By using XZM mills, Vietnamese ceramic manufacturers can improve glaze smoothness, surface gloss, and firing consistency. The mill also supports intelligent control and easy maintenance, which is important for continuous ceramic production.

How to Integrate a Kaolin Grinding Mill into Ceramic Clay Preparation

A typical kaolin preparation line includes primary crushing, storage, feeding, grinding, classification, iron removal, and final storage. A jaw crusher or hammer mill reduces raw kaolin to below 30 to 50 mm. Then the material is fed into the MTW or XZM mill. The classifier returns coarse powder for re-grinding and sends qualified powder to a cyclone or dust collector. Magnetic separation removes iron-bearing minerals. Finally, the powder is blended with ball clay, feldspar, quartz, and additives according to the ceramic recipe. For wet process lines, a ball mill may be used, but dry grinding with MTW or XZM offers lower water consumption and easier integration with spray dryers.

Benefits for Vietnamese Ceramic Producers

• Consistent particle size for better plasticity, forming, and firing.
• Higher whiteness and surface quality when iron removal is combined.
• Energy-efficient grinding with low noise and dust.
• Scalable capacity from small workshops to large factories.
• Simple maintenance and long wear life for abrasive kaolin.
• Service support from Shanghai Zenith Machinery Co., Ltd.

Conclusion

Vietnam’s ceramics industry continues to expand, and kaolin quality will play a decisive role in product competitiveness. Selecting the right grinding mill is essential for efficient ceramic clay preparation. Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in ultra-fine powder grinding. The MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill are recommended for Vietnamese kaolin processors who need reliable medium-fine and ultrafine powder production. With proper process design, these mills can help ceramic plants achieve stable quality, lower operating costs, and stronger market performance.
