Feldspar milling line for Turkey ceramics

Introduction

Turkey has become one of the world’s leading ceramic tile, sanitaryware, and tableware producers. The country’s ceramic industry relies on consistent raw material quality, and feldspar is one of the most important inputs. Feldspar acts as a flux in ceramic bodies and glazes, lowering the melting temperature and providing the vitreous strength that ceramic products need. To convert mined feldspar into a homogeneous, fine powder suitable for ceramic manufacturing, a robust and efficient milling line is essential.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. We specialize in the research, development, and production of industrial powder grinding equipment and related devices. With a complete product range including MTW Trapezium Grinding Mill, LM Vertical Grinding Mill, Raymond Mill, Ball Mill, MTM Medium-Speed Grinding Mill, and ultrafine mills, Zenith offers proven solutions for feldspar milling lines in Turkey.

Feldspar in Turkish Ceramics

Ceramic production in Turkey consumes large quantities of sodium feldspar and potassium feldspar. Sodium feldspar is often preferred for its strong fluxing action in wall and floor tiles, while potassium feldspar offers a higher viscosity melt, which is beneficial for porcelain and sanitaryware. In both cases, the feldspar must be ground to a controlled particle size, typically between 80 and 400 mesh, and for many ceramic applications around 200 to 325 mesh. Uniform particle size distribution ensures stable firing behavior, good mechanical strength, and a smooth surface finish.

Therefore, the milling line must be designed to deliver consistent output fineness while maintaining high throughput and low operating cost. Traditional single-stage grinding is rarely enough. An optimized line often includes crushing, feeding, grinding, classifying, and dust collection.

Core Requirements for a Feldspar Milling Line

Before selecting equipment, project planners must evaluate three main factors: feed size, required fineness, and production capacity. In a typical Turkish feldspar quarry, run-of-mine ore can reach 200 mm or more. A jaw crusher or hammer crusher reduces the ore to less than 40 mm, which is suitable for a grinding mill. For MTW mills, maximum feed size ranges from 30 mm to 50 mm depending on the model. For LM vertical mills, max feed size is between 38 mm and 50 mm. Thus, primary crushing to under 40 mm allows direct feeding into the selected mill.

A modern feldspar milling line must also handle moisture. Feldspar with less than 6 percent moisture is ideal for dry grinding. If the material is wet or contains clay, a dryer or hot-air sweep in an LM vertical mill can combine drying and grinding. In addition, dust control is crucial because ceramic-grade feldspar powder is fine and abrasive. All Zenith mills can be configured with pulse dust collectors, bag filters, and enclosed conveying systems to meet strict environmental standards.

Design of an Efficient Feldspar Milling Line

A typical Zenith feldspar milling line begins with a hopper and vibrating feeder. The feeder regulates the flow of crushed feldspar into the grinding mill. Inside the mill, grinding rollers or balls break the particles into fine powder. The powder is then transported by airflow or rotational force to a classifier. Oversized particles are returned to the grinding zone, while fine particles are collected by a cyclone or bag filter. Finally, feldspar powder is stored in a silo or conveyed directly to blending tanks in the ceramic plant.

For ceramic-grade feldspar, closed-loop milling is recommended. This ensures stable fineness and reduces energy waste. Zenith’s grinding mills are designed for such recirculation, and each machine can be adjusted to produce a target fineness. This makes quality control straightforward for Turkish ceramic manufacturers.

Recommended Grinding Mills from Zenith

Based on our experience in feldspar processing, we recommend two equipment options for a new milling line in Turkey: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both are proven in mineral powder production and can meet the requirements of the ceramic industry.

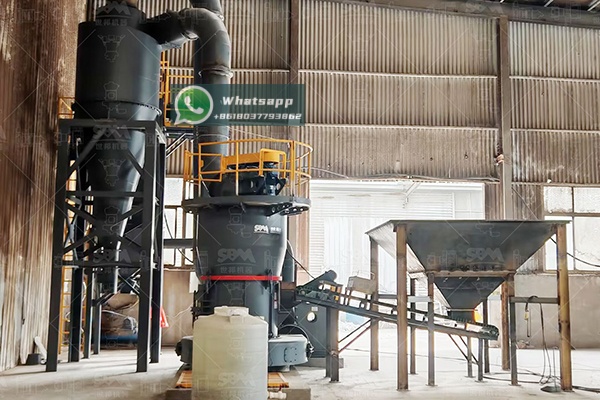

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented machine with a compact structure, long service life, and eco-friendly operation. It is an excellent choice for feldspar with a maximum feed size of 50 mm and can grind down to 0.038 mm. The machine features an internal separator, a conical spiral air flow, and a bevel gear drive, all designed to improve powder fineness and lower energy consumption.

For a medium-sized Turkish ceramic tile factory, the MTW175G is a good balance between investment and output. It can produce 9.5 to 25 tons per hour of feldspar powder with fineness from 1.6 mm down to 0.045 mm. This means the mill can be adjusted for coarse feldspar sand for tile bodies or fine feldspar powder for glazes. The replaceable wear parts and automatic lubrication system reduce downtime, which is essential for continuous plant operation.

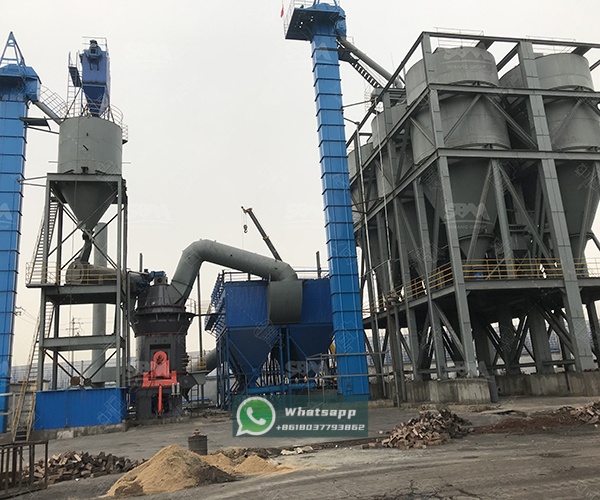

LM Vertical Grinding Mill

The LM Vertical Grinding Mill integrates crushing, grinding, powder selection, drying, and material conveying into one unit. Because it has a small occupied area and lower metal consumption per ton, it is especially suitable for large-capacity projects. In feldspar milling, the LM series can accept feed sizes up to 50 mm and produce powder with a fineness of 170 to 40 μm, equivalent to approximately 80 to 400 mesh.

The LM190K is recommended when Turkish ceramic producers need to expand to high-volume milling. It provides 23 to 68 t/h, which can support a large body preparation line and allow simultaneous production of feldspar with different fineness levels. The vertical structure enables a much simpler flow sheet than a conventional ball mill system, and the high-efficiency classifier ensures a narrow particle size distribution. This improves ceramic body compactness and glaze stability.

How to Choose Between MTW and LM

The choice depends on capacity, available floor space, and budget. If the required throughput is under 25 t/h, the MTW Trapezium Mill is a flexible and economical solution. If the project requires 25 t/h or more, or if the plant wants to combine drying with grinding, the LM Vertical Mill offers lower unit energy consumption and a smaller footprint. Some Turkish ceramic companies also use a hybrid arrangement: an MTW mill for fine powder for glazes and an LM mill for body material. In both cases, Zenith provides complete technical support, including plant layout, installation, commissioning, and training.

Why Zenith Is a Reliable Partner

Zenith has accumulated extensive experience in ore grinding and has achieved strong results in ultra-fine powder grinding. Our company is devoted to improving the efficiency of industrial powder production. From the feed system to the bag filter, every stage of a Zenith milling line is engineered for reliability. In addition, Zenith’s after-sales team in the region can assist Turkish customers with spare parts, operating procedures, and quick maintenance, reducing the total cost of ownership.

Conclusion

Turkey’s ceramics industry demands high-quality feldspar powder with consistent fineness and stable output. A well-designed milling line based on Zenith equipment can deliver this performance while also improving energy efficiency and environmental compliance. The MTW Trapezium Grinding Mill and LM Vertical Grinding Mill are both excellent choices for feldspar milling in Turkish ceramic plants. With proper pre-crushing, metering, and dust collection, Zenith’s milling lines will help ceramic manufacturers achieve higher product quality and lower production costs.
