Diatomite grinding mill for filtration powder in Ethiopia

Diatomite Grinding Mill for Filtration Powder in Ethiopia

Ethiopia is steadily developing its mineral processing industry, and diatomite deposits are becoming a strategic advantage for the country. Diatomite is a siliceous sedimentary rock formed from fossilized diatoms, and its outstanding physical structure makes it one of the most effective materials for manufacturing filtration powder. The Ethiopian market, driven by a growing beverage industry, expanding pharmaceuticals, edible-oil refineries and municipal water treatment, demands an efficient diatomite grinding mill that can convert local ore into premium filter aids.

Filtration powders derived from diatomite are widely used for beer and wine clarification, sugar refining, juice processing, swimming-pool water filtration and industrial liquid filtration. The ability to capture suspended solids while maintaining high flow rates is directly related to the particle size, shape and pore structure. For this reason, milling must be done carefully. A successful diatomite grinding mill for filtration powder should ensure a narrow particle-size distribution and protect the fragile diatom structure as much as possible.

Challenges in Diatomite Powder Production

Raw diatomite contains moisture and often includes associated clay or detrital minerals. The ore is also abrasive because the diatom skeleton is composed of hard amorphous silica. Therefore a suitable mill has to combine abrasion resistance, low operating cost and stable performance. The process normally calls for drying, primary crushing, milling and classification. Depending on the final grade, some calcined or flux-calcined filtration powders require precise ultra-fine grinding.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, and it has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development and production of industrial powder grinding equipment. Its main products include MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Ball Mill and Hammer Mill. Two of these series are especially important for diatomite filtration powder production in Ethiopia: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.

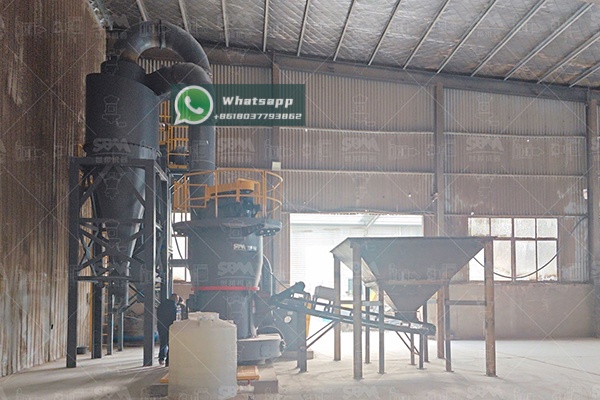

MTW Trapezium Grinding Mill: Reliable Milling of Commercial Filtration Powder

MTW Trapezium Grinding Mill is a multi-patent mill that has a compact structure, a long service life and an eco-friendly design. It is ideal for grinding non-metallic minerals such as diatomite. The larger MTW models can accept feed particles up to about 50 mm and can produce an adjustable end product in the range of 1.6 mm down to 0.045 mm, which is roughly 12 to 325 mesh. This middle zone is exactly where filtration powder producers make most of their commercial grades. Coarse filter aids, medium filter aids and fine filter aids can all be obtained by adjusting the built-in classifier while keeping the grinding process stable.

The MTW series is available in several model sizes, giving Ethiopian investors a system that fits their production targets. MTW110 and MTW110Z can produce 3 to 10 tonnes per hour with a 55 kW main motor; MTW138Z has a capacity of 6 to 17 tonnes per hour; MTW175G delivers 9.5 to 25 tonnes per hour; and MTW215G can reach 15 to 45 tonnes per hour, with a 280 kW main motor and a 315 kW fan motor. Such flexibility allows a small or medium diatomite processing operation to begin with a single machine and later expand without replacing the whole system.

In actual diatomite milling, the sturdy roller and ring design of the MTW mill reduces vibration and ensures a uniform powder. At the same time, the internal classifier controls the final powder so that the filter aid does not contain undesired oversize particles. Because of its high efficiency and reduced energy consumption, the MTW mill is an ideal replacement for traditional Raymond mills in many mineral processing applications. For a plant in Ethiopia that wants to manufacture filtration powder from unprocessed diatomite, the MTW series is one of the most valuable recommendations from Shanghai Zenith.

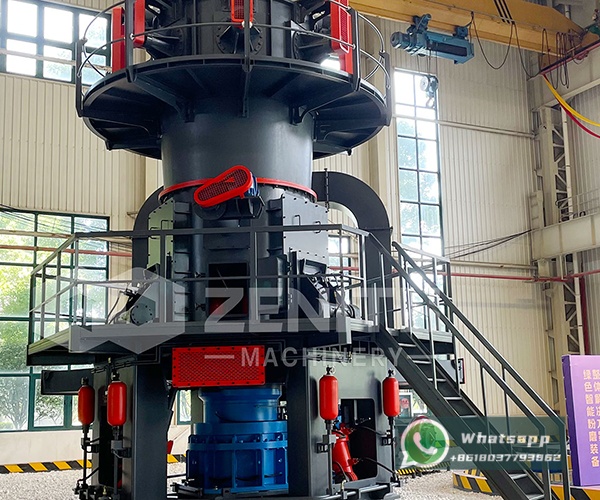

LUM Ultrafine Vertical Mill: Premium Ultr-Fine Filtration Grades

The market for filtration powder is not limited to conventional grades. Some specialty applications require an extra-fine product with a controlled D97 such as 5 to 30 microns. In this case, the LUM Ultrafine Vertical Mill from Shanghai Zenith is an excellent choice. LUM combines grinding, drying, classifying and conveying in one unit and is designed for a high content of end-fines. Its intelligent control system makes operation easier and reduces maintenance work, a major advantage when a project is located far from service centres.

The LUM mill operates with a vertical grinding table and uses hydraulic pressure to grind the ore between rollers and the grinding bed. Hot air for drying and classification is drawn through the system, and the integrated classifier returns coarse particles to the grinding zone while only fine powder passes to the collector. The classifier can produce a D97 as low as 5 microns and up to 30 microns depending on the model and operating parameters. For an Ethiopian producer of diatomite filter aids, this means the final product can be adjusted to the exact separation performance needed for beer filtration, wine filtration, pharmaceutical clarification or industrial process filtration.

The LUM ultrafine series includes LUM1525, LUM1632 and LUM1836. The main machine power ranges from 220 kW to 400 kW, and production capacity can vary from approximately 1.6 tonnes per hour to 15 tonnes per hour at the specified fineness. In many cases, an Ethiopian plant may use an MTW mill as the first milling stage and an LUM vertical grinding mill as the finishing stage. Together they create a complete system that handles both medium and fine filtration-powder products.

Project and Market Considerations in Ethiopia

Ethiopia has a growing domestic food-and-beverage industry. Local mineral producers know that high-quality diatomite filtration powder can be sold to regional breweries, edible-oil processors, sugar factories and water-treatment operators. Because diatomite ore is relatively light and deposits are found in parts of the East African Rift area, the transport distance from mine to mill should be kept short. Shanghai Zenith engineers can help with plant layout, equipment selection and powder classification design. The company has extensive experience in supplying ore grinding equipment to many countries, and its after-sales services include spare parts, instruction manuals and technical supervision for installation and commissioning.

When selecting a diatomite grinding mill for filtration powder in Ethiopia, it is critical to take into account feed moisture, ore grade, target capacity and final particle size. Choosing a Zenmith mill not only reduces energy consumption and operating costs but also improves quality consistency. A mineral investor can start with an MTW Trapezium Grinding Mill for ordinary filtration grades, or move directly to an LUM Ultrafine Vertical Mill when aiming at high-value premium powders. Both choices suit a future Ethiopian plant that intends to supply the domestic market and export processed diatomite filtration powder to neighbouring African countries.

Conclusion

Diatomite from Ethiopia will be increasingly converted into filtration powder as manufacturers understand its economic potential. The grinding mill is the heart of this operation. Shanghai Zenith Machinery Co., Ltd., with its comprehensive line of industrial milling equipment and advanced powder grinding technology, is ready to support Ethiopian diatomite processors with reliable machines, detailed guidance and complete production solutions. By choosing the MTW Trapezium Grinding Mill or the LUM Ultrafine Vertical Mill, the producer gains a clear path toward high-quality filtration powder, lower downtime, efficient classification and long-term competitiveness.
