Clinker grinding mill for Oman 20tph cement line upgrade

Introduction: Meeting Oman’s Growing Cement Demand

The Sultanate of Oman has continued to invest in housing, transport, and industrial zones, which drives the demand for high-quality cement. For cement producers, the clinker grinding stage is the final and one of the most energy-intensive steps in converting clinker into finished cement.

This article explores a practical upgrade path for an existing Omani cement line with a target capacity of 20 tph. It examines the technical criteria, the best available milling technology, and the equipment options offered by Shanghai Zenith Machinery Co., Ltd.

Why Clinker Grinding Is Critical to a Cement Line

Clinker is a hard, nodular material produced by heating raw meal in a kiln. The cement properties such as strength, setting time, and fineness are largely determined by the grinding process. In particular, the particle size distribution and the surface area (Blaine) must be controlled precisely.

A 20 tph clinker grinding line may seem small in comparison to large integrated plants, but it is an important capacity for regional supply or for plants that use purchased clinker. By upgrading an existing mill circuit from an older, inefficient machine to a modern grinding mill, an operator can achieve higher throughput, more stable product quality, lower unit energy consumption, and reduced maintenance costs.

In a hot, dusty country like Oman, the chosen mill must also cope with high ambient temperatures, limited water resources, and strict environmental requirements. This makes the selection of robust and well-engineered equipment essential.

Key Selection Criteria for a 20 Tph Clinker Grinding Mill

When selecting a clinker grinding mill for an upgrade, cement plant engineers must balance several factors. The most critical are:

• Capacity: The mill must comfortably produce at least 20 tph of finished cement with a typical fineness of 3200-3800 cm²/g (Blaine).
• Specific energy consumption: Electricity is often the largest operating cost in cement grinding. A lower kWh/t figure directly improves profitability.
• Feed size and grindability: Clinker has a high grindability index, so the mill must be designed for abrasive material.
• Drying requirement: Although clinker is dry, gypsum is added during grinding to control setting time. The mill must handle small moisture variations and produce a uniform blend.
• Footprint: In an upgrade project, space is often limited. A vertical mill with integrated separator and conveying systems is easier to install.
• Maintenance and parts availability: Proven technology from a reputable manufacturer reduces downtime.

For the Oman 20 tph line, a vertical roller mill is often the most attractive solution because it combines grinding and classification in one unit, occupies less floor space, and uses less energy than a conventional ball mill.

Shanghai Zenith Machinery: A Trusted Grinding Equipment Partner

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with many years of experience in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its product range includes the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. Zenith’s equipment is used in cement plants, mineral processing plants, and powder manufacturing facilities around the world.

For the 20 tph clinker grinding upgrade in Oman, Zenith can provide a complete grinding solution from single-mill supply to full system design, including feeders, separators, dust collectors, and control systems.

Recommended Primary Solution: LM Vertical Grinding Mill

The LM Vertical Grinding Mill is one of Zenith’s flagship products. It integrates five functions — crushing, grinding, powder selection, drying, and material conveying — in a single machine. This design offers a small occupational area, high grinding efficiency, and a final powder with excellent quality and uniform fineness.

For a 20 tph cement clinker grinding line, the LM220N from the Zenith vertical slag mill series is a particularly good fit. It is designed for hard, abrasive materials such as slag and clinker and is capable of producing a consistent product with a low percentage of oversize particles.

LM220N Key Parameters

• Main motor: 900-1000 kW
• Capacity: 20-26 t/h
• Suitable feed: clinker, slag, mixed cement materials
• Design: integrated grinding, drying, and classification

Because the LM220N is supplied with a 900-1000 kW main motor, it has enough grinding force to handle hard clinker while still allowing continuous operation at 20 tph. Depending on clinker grindability and target fineness, the capacity is 20-26 t/h, so the Omani producer can operate with a comfortable margin. The vertical mill also generates lower noise and less vibration than a ball mill, which improves the working environment. In addition, because the mill combines several process steps in one machine, the layout is simplified and auxiliary equipment such as separate elevators and classifiers can be reduced. This helps lower the total investment and operating cost of the upgrade.

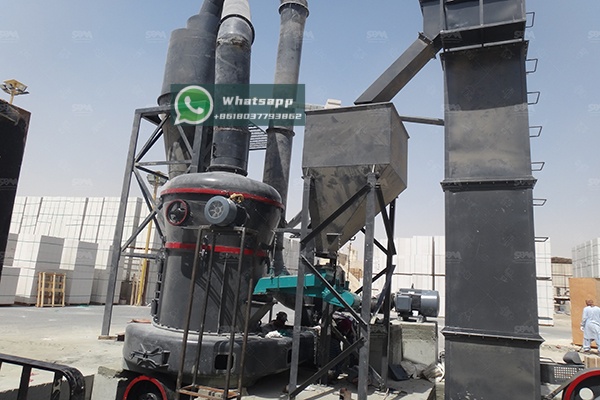

Alternative: MTW Trapezium Grinding Mill

Some upgrade projects are constrained by existing building structures or electrical infrastructure. In these cases, a compact and well-proven medium-speed mill such as the MTW Trapezium Grinding Mill is an excellent alternative. The MTW mill has multiple patents, a compact structure, long service life, and an eco-friendly design.

The MTW175G model can produce 9.5-25 t/h at a final fineness between 1.6 and 0.045 mm. Its main motor is rated at 160 kW with a fan motor of 200 kW. The maximum feed size is 40 mm, which is suitable for clinker that has already been reduced by a primary crusher. At a setpoint near the upper part of its range, it can satisfy the 20 tph requirement for the Omani cement line while also providing flexibility for other products such as raw material or mineral powders.

MTW175G Key Parameters

• Max. feed size: 40 mm
• Final size: 1.6-0.045 mm
• Capacity: 9.5-25 t/h
• Main motor: 160 kW
• Fan motor: 200 kW

The MTW mill’s internal classifier and advanced grinding roller design ensure a stable product and reduce the risk of over-grinding. It is also easier to install in a compact plant room than a large ball mill.

Implementation and Upgrade Strategy for the Oman Cement Line

To upgrade a clinker grinding line to 20 tph, the process flow typically includes: clinker storage and hoppers, a weight feeder, the grinding mill, an air separator or integrated classifier, a bag filter, a cement silo, and a packing plant. The selection of a vertical mill simplifies the flow because the classifier is built into the mill body.

The upgrade plan should begin with a site audit by Zenith engineers to determine the existing equipment condition, available space, and power supply. After the audit, a tailored layout can be prepared. Depending on the existing plant, the main civil work may include the mill foundation, ducting supports, and a new electrical control room.

Because Zenith offers complete accessories and spare parts, the project can be executed as a turnkey package. The plant can continue operating while the new mill is installed in parallel, then switch over with minimal production loss. Commissioning and operator training are also important parts of the service.

For a 20 tph output, the LM220N vertical mill is the primary recommendation. If a lower capital cost solution is preferred, the MTW175G trapezium mill can also deliver the required capacity.

Conclusion

Oman’s cement sector needs efficient, reliable, and environmentally responsible grinding equipment. A 20 tph clinker grinding line upgrade can be accomplished with a modern Shanghai Zenith grinding mill that delivers the exact product fineness and throughput required.

The LM Vertical Grinding Mill offers the best combination of compact design, high grinding efficiency, and robust performance. The MTW Trapezium Grinding Mill appears as a practical alternative when space and budget constraints are decisive. Shanghai Zenith Machinery Co., Ltd. has the product quality, engineering experience, and after-sales support to make this upgrade a success.

For further technical data and a detailed quotation, cement producers in Oman are encouraged to contact Zenith and share their clinker properties, target Blaine fineness, and site conditions.
