Calcium carbonate milling line for Vietnam paints and coatings

Introduction

Vietnam has become one of Southeast Asia’s most dynamic paint and coatings markets. Infrastructure development, real estate construction, and automotive production are driving demand for high-quality paints, primers, and protective coatings. In this context, calcium carbonate (CaCO3) plays a critical role as a functional filler. It improves paint opacity, brightness, weather resistance, and reduces cost. However, the quality of calcium carbonate powder depends largely on the milling line. A well-designed calcium carbonate milling line must deliver consistent fineness, controlled particle size distribution, and high throughput.

Why Calcium Carbonate Milling Matters for Paints and Coatings

In paint formulations, calcium carbonate acts as a spacer pigment, improving the efficiency of titanium dioxide, the most expensive raw material in many paints. To achieve this effect, the calcium carbonate particles must be fine and uniformly sized. Typical paint-grade GCC (ground calcium carbonate) requires a fineness of 325 mesh to 2500 mesh, with D97 values between 5 and 30 microns. Too-coarse particles create grit and reduce gloss; too-fine particles may increase oil absorption and affect film integrity. Therefore, a reliable milling line must be capable of precise classification and stable operation.

Vietnam’s tropical climate adds another layer of challenge. High humidity can affect drying and powder flow. Modern grinding mills with integrated drying, such as vertical roller mills and ultrafine vertical mills, are ideal because they can handle slightly moist feed materials and process them in a closed system. In addition, energy costs in Vietnam continue to rise, making energy-efficient milling equipment essential for long-term competitiveness.

Core Equipment for a High-Performance Calcium Carbonate Milling Line

To meet the requirements of the paints and coatings industry, a milling line should include primary crushing, feeding, grinding, classifying, and dust collection. Shanghai Zenith Machinery Co., Ltd. offers a complete portfolio of grinding equipment tailored to calcium carbonate processing. Among these, the LUM Ultrafine Vertical Mill and the MTW Trapezium Grinding Mill stand out as the most suitable choices for Vietnamese producers.

LUM Ultrafine Vertical Mill

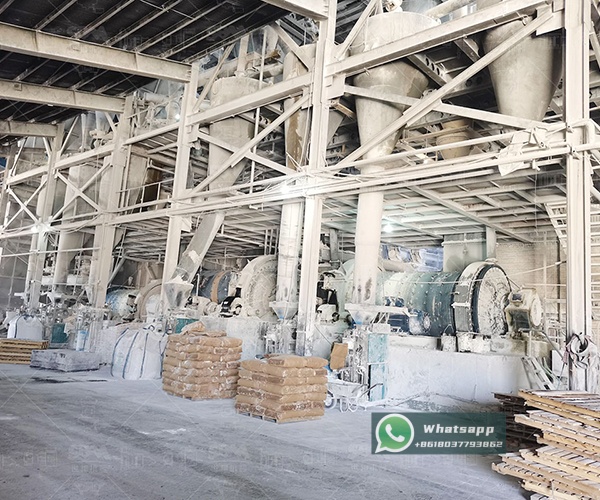

The LUM Ultrafine Vertical Mill is a flagship solution for superfine powder production. It integrates grinding, classifying, drying, and conveying into one compact system. The LUM mill uses a rotating table and stationary rollers to grind material under pressure. An integrated high-efficiency classifier ensures that only powder with the desired fineness leaves the mill. This machine is especially effective for producing calcium carbonate with D97 values between 5 and 30 microns, which is exactly the range needed for high-quality paints and coatings.

Shanghai Zenith offers several LUM models to match different capacity requirements. For mid-sized Vietnamese plants, the LUM1525 with 220-250 kW main motor and capacity up to 11.5 t/h is a reliable choice. Larger operations may select the LUM1632 or LUM1836, which provide capacities up to 13.5 t/h and 15 t/h, respectively. The table below summarizes key parameters:

MTW Trapezium Grinding Mill

For producers who need both fine powder and flexibility, the MTW Trapezium Grinding Mill is an excellent complement. The MTW mill has multiple patents, a compact structure, and a long service life. It can accept feed sizes up to 50 mm and produce powder with fineness as fine as 0.038 mm (about 400 mesh). While the LUM mill is ideal for ultra-fine grades, MTW can serve as a pre-grinding stage or as a dedicated mill for coarser fillers used in primers, putties, and industrial coatings. Its robust design reduces vibration and maintenance, which is critical in continuous 24-hour operations.

The MTW138Z, with a main motor of 90 kW and capacity of 6-17 t/h, is a popular model for medium-scale Vietnamese factories. For larger capacities, the MTW175G and MTW215G can produce 9.5-25 t/h and 15-45 t/h, respectively. These machines offer stable fineness and high availability.

Complete Milling Line Design and Process Flow

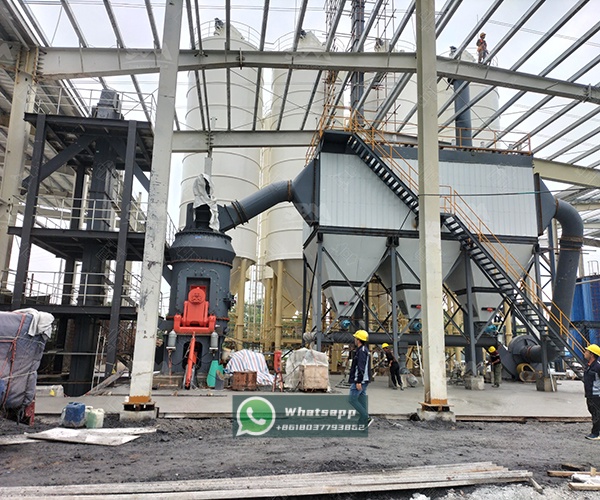

A typical calcium carbonate milling line designed by Shanghai Zenith for Vietnam includes a vibrating feeder, the grinding mill, a baghouse dust collector, a cyclone collector, an induced draft fan, and a centralized control system. Raw calcium carbonate rocks are first crushed to the acceptable feed size. The material is then fed into the LUM or MTW mill, where it is ground, dried if needed, and classified. The classified fine powder is conveyed to a silo, while oversized particles return to the grinding zone. The whole system operates under negative pressure to prevent dust leakage and ensure a clean working environment.

One of the key advantages of the Zenith milling line is its small footprint compared with traditional ball mill systems. For paint manufacturers located in industrial zones where space is limited, this is a significant benefit. In addition, the centralized PLC control system enables operators to monitor capacity, fineness, and energy consumption in real time. This reduces manual labor and improves product consistency.

Benefits for Vietnam’s Paints and Coatings Industry

Switching to a modern vertical mill-based calcium carbonate milling line brings multiple benefits. First, the LUM mill’s high-efficiency classifier ensures a sharp particle size distribution, which improves the hiding power and gloss development of paint films. Second, energy consumption is substantially lower than that of traditional ball mills. Third, the sealed system reduces product loss and environmental pollution, aligning with Vietnam’s increasingly strict environmental regulations.

Another important factor is adaptability. Vietnam’s limestone resources vary in hardness, moisture, and impurities. Zenith’s grinding mills are designed to handle a wide range of feed materials. The LUM mill can dry feed materials with certain moisture content, while the MTW mill can process coarser feeds without frequent blockages. This flexibility allows Vietnamese producers to use local raw materials without sacrificing output quality.

Why Choose Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. Specializing in research, development, and production of industrial powder grinding equipment, Zenith has shipped thousands of mills to markets around the world. The company’s product portfolio includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. This broad range enables Zenith to provide tailored solutions, from single machines to complete turnkey milling lines.

For a calcium carbonate milling line in Vietnam, Zenith can engineer a solution that matches specific capacity, fineness, and energy-saving goals. The after-sales service includes installation supervision, operator training, and spare parts support. By choosing Zenith, Vietnamese paint manufacturers gain not only reliable machinery but also a long-term partner in production optimization.

Conclusion

As Vietnam’s paint and coatings industry continues to grow, the demand for high-quality calcium carbonate fillers will increase correspondingly. An efficient, stable, and energy-saving milling line is essential to meet this demand. The LUM Ultrafine Vertical Mill and the MTW Trapezium Grinding Mill from Shanghai Zenith offer an ideal combination of ultra-fine grinding capability and production flexibility. With advanced technology, proven performance, and strong local support, Zenith is well positioned to help Vietnamese producers build a world-class calcium carbonate milling line.
