Carbon black milling line for Pakistan tire plants

Introduction: The Growing Demand for Carbon Black in Pakistan’s Tire Industry

Pakistan’s tire manufacturing sector has experienced significant expansion in recent years, driven by increasing domestic vehicle production and exports. As a critical reinforcing filler in rubber compounds, carbon black constitutes approximately 20–30% of a tire’s total weight. The quality and consistency of carbon black directly affect tire performance, including tread wear resistance, tensile strength, and heat dissipation. To meet international standards and maintain competitiveness, Pakistan’s tire plants require advanced, reliable, and energy-efficient milling solutions capable of producing ultrafine carbon black powders with narrow particle size distributions. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment with extensive expertise in ultra-fine powder processing, offers a comprehensive carbon black milling line tailored specifically for the needs of Pakistan’s tire industry.

Understanding Carbon Black Grinding Challenges

Carbon black is produced by the thermal decomposition of hydrocarbons, resulting in a highly agglomerated, fluffy material with a low bulk density (typically 0.04–0.15 g/cm³). For tire applications, the primary grade used is N330 (HAF), which requires a primary particle size ranging from 20 to 50 nanometers. However, these particles are strongly bound into aggregates of several hundred nanometers to a few micrometers. The grinding process must effectively break down these aggregates while preserving the fundamental particle morphology. Key challenges include:

• Abrasion: Carbon black is moderately abrasive, requiring wear-resistant mill components.
• Heat sensitivity: Excessive temperature can cause oxidation or explosive risk, necessitating efficient cooling systems.
• Dust control: The fine, light nature of carbon black demands sealed systems with effective dust collection.
• Consistency: Uniform particle size distribution (PSD) below 45 μm (325 mesh) is essential for optimal rubber reinforcement.

The Ideal Carbon Black Milling Line: From Coarse to Ultrafine

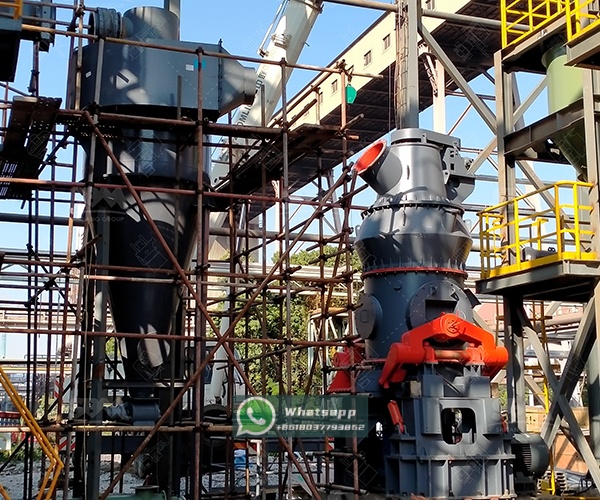

A complete carbon black milling line typically comprises a primary crusher, a feeding system, a grinding mill, a classifier, a dust collector, and a product conveying system. Shanghai Zenith provides turnkey solutions that integrate these components. The core grinding equipment can be selected based on target fineness and capacity requirements. For Pakistan tire plants, we recommend a two-stage approach: pre-grinding using a MTW Trapezium Grinding Mill or Ball Mill to reduce the material to a manageable size, followed by final ultrafine grinding with a LUM Ultrafine Vertical Mill or XZM Ultrafine Grinding Mill. Below, we highlight two flagship products that have proven highly effective in carbon black applications globally.

Product Recommendation 1: LUM Ultrafine Vertical Mill

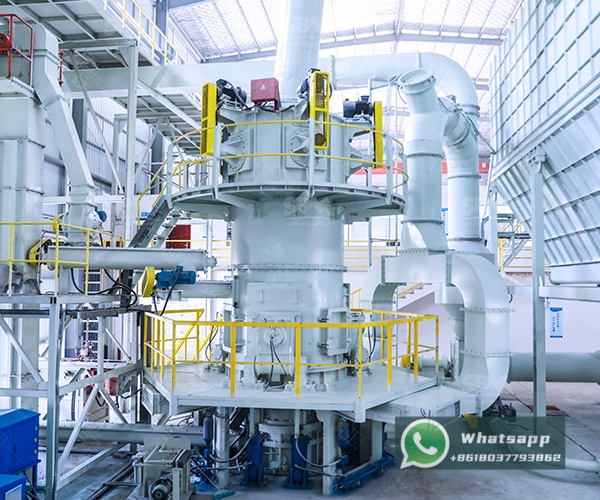

The LUM Ultrafine Vertical Mill is an advanced solution that integrates grinding, classifying, drying, and material conveying in a single compact unit. Its design is particularly advantageous for carbon black because:

• Low energy consumption – The grinding roller and grinding table are driven by a vertical spindle, reducing friction and power loss.
• High fines content – The integrated dynamic classifier achieves product fineness of D97 = 5–30 μm, ideal for top-grade tire carbon black.
• Intelligent control – PLC-based automation ensures stable operation and easy adjustment of product fineness even with varying feed characteristics.
• Minimal footprint – The vertical structure saves floor space, a valuable asset in existing Pakistan factories.

For medium to large capacity requirements (2–15 t/h), the LUM1632 or LUM1836 models are excellent choices. They deliver consistent output with a narrow PSD, enhancing rubber compound consistency. The LUM series also features a built-in hot air system for moisture removal, crucial when processing carbon black with slightly higher humidity (typically <1%).

Product Recommendation 2: XZM Ultrafine Grinding Mill

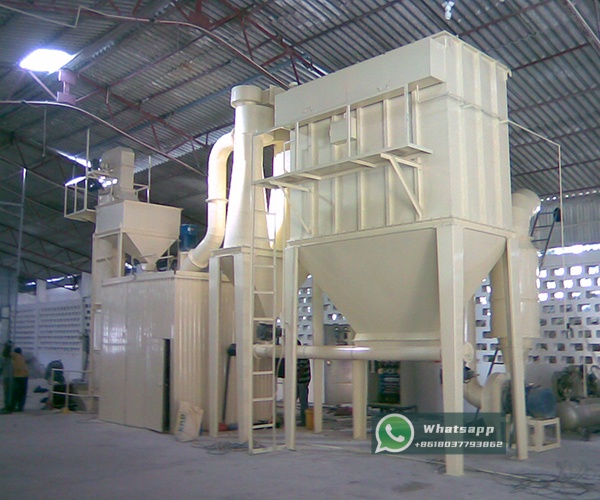

For plants requiring very high fineness (325–2500 mesh) with moderate capacity, the XZM Ultrafine Grinding Mill is the industry benchmark. This mill employs a multi-stage classification system that can achieve D97 as low as 5 μm. Key features relevant to carbon black milling include:

• Durable wear parts – The grinding roller and ring are made of high-chromium alloy steel, offering excellent abrasion resistance against carbon black.
• Sealed system – The entire milling chamber operates under negative pressure, preventing dust leakage.
• Flexible fineness control – By adjusting the classifier speed and airflow, operators can switch between different carbon black grades (e.g., N550, N660, N330) without changing the mill.
• Compact design – The XZM221 model occupies only about 50 m² of floor space, ideal for smaller tire plants or those expanding production lines.

The XZM series has a proven track record in carbon black application across Asia, including in Pakistan. It can handle feed sizes up to 20 mm and produce outputs ranging from 500 kg/h to 25 t/h (for the XZM268). Combined with an appropriate feeder and cyclone collector, the system achieves a grinding efficiency of over 85%.

Technical Parameters Comparison (Selected Models)

To assist Pakistan tire plants in selecting the optimal equipment, we provide the following brief comparison of recommended models from Shanghai Zenith:

Integration and After-Sales Support

Shanghai Zenith provides complete milling line engineering, including silos, belt conveyors, bucket elevators, baghouse dust collectors, and automatic packing systems. For Pakistan, we also offer localized services: a dedicated team of engineers based in Lahore and Karachi provides installation supervision, commissioning, and training. Our after-sales support includes remote monitoring systems that allow real-time diagnostics of mill performance, reducing downtime. The company’s extensive spare parts inventory in Karachi ensures that replacement components such as grinding rollers, rings, and classifier blades can be delivered within 48 hours.

Case Study: Successful Deployment in Southeast Asian Tire Plants

In neighboring countries such as Indonesia and Thailand, several tire manufacturers have adopted Shanghai Zenith’s carbon black milling lines. For instance, a 12 t/h LUM1836-based line in Thailand has been operating continuously for over three years, producing N330 carbon black with a particle size D97 of 18 μm and a consistency variation of less than ±2 μm. The plant reported a 15% reduction in specific energy consumption compared to their previous ball mill system. Such proven performance gives Pakistan’s tire industry confidence in adopting similar technology.

Conclusion: A Strategic Investment for Pakistan’s Tire Industry

As Pakistan aims to increase its tire exports and reduce reliance on imported carbon black, establishing a modern milling line is not just a technical necessity but a strategic economic move. Shanghai Zenith’s LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill offer the perfect balance of reliability, efficiency, and product quality. With proper installation and maintenance, these mills can serve for 15–20 years, providing an excellent return on investment. We invite Pakistan’s tire manufacturers to contact our local representatives for a detailed feasibility study and customized quotation.
