Calcite milling line for Vietnam 325 mesh coating material

1. Introduction to Calcite Powder for Coating Applications

Calcite is one of the most widely used industrial minerals, and Vietnam has become a fast-growing market for ground calcium carbonate in the coating industry. For paint, ink, powder coating, and decorative coating formulations, 325 mesh calcite powder serves as a functional filler that improves opacity, brightness, hardness, weather resistance, and cost efficiency. Coating material at this fineness must meet strict requirements: a controlled particle size distribution with a D97 around 45 microns, high whiteness, low moisture, chemical purity, and stable product quality. To produce such powder on an industrial scale, a reliable, efficient, and wear-resistant milling line is essential.

2. Requirements for 325 Mesh Coating-Grade Calcite

Producing 325 mesh coating material in Vietnam requires more than simply grinding calcite. The powder must pass through an accurate classifier so that oversize particles are eliminated. The mill must also minimize iron contamination and preserve the natural whiteness of calcite. A typical specification for coating-grade powder may include: D97 equal to 45 microns, top cut below 50 microns, brightness above 95 percent, and moisture below 0.5 percent. Depending on the factory’s capacity, the milling line may need to produce 5 to 20 tons per hour continuously. Energy consumption, maintenance intervals, and total operating cost are equally important for Vietnam producers who want to remain competitive in both domestic and export markets.

3. Shanghai Zenith Machinery: Reliable Grinding Solution Provider

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For a calcite milling line targeting 325 mesh coating material, two Zenith products are particularly suitable: the MTW Trapezium Grinding Mill and the LM Vertical Fine-powder Mill.

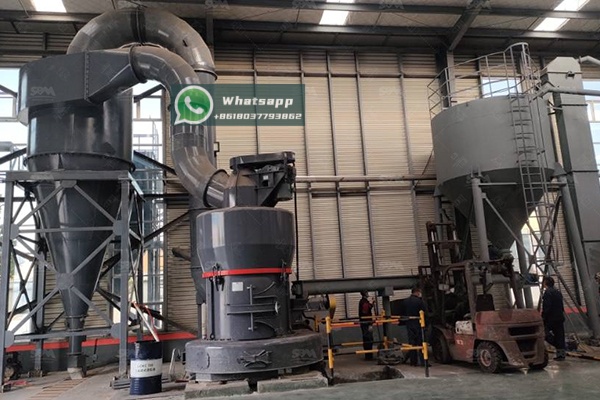

4. Recommended Product: MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a grinding mill with multiple patents, known for its compact structure, long service life, and eco-friendly design. It is an ideal main machine for a Vietnam calcite milling line because it can accept a maximum feed size of up to 50 mm depending on the model and deliver a final product as fine as 0.038 mm. This covers the 325 mesh requirement comfortably. The trapezium-shaped grinding rollers and ring improve grinding efficiency, while the internal classifier ensures uniform particle size. For a medium-capacity coating plant, the MTW138Z or MTW175G can be considered. The MTW138Z handles feed sizes below 35 mm and offers a capacity of 6 to 17 tons per hour with a main motor of 90 kW and a fan motor of 110 kW. The MTW175G accepts feed below 40 mm, produces 9.5 to 25 tons per hour, and uses a 160 kW main motor with a 200 kW fan motor. Both models can achieve a fineness range of 1.6 to 0.045 mm, meaning the 325 mesh target is well within reach.

5. Alternative Recommendation: LM Vertical Fine-powder Mill

If a Vietnamese producer prefers a vertical mill with integrated crushing, grinding, drying, classifying, and conveying functions, Shanghai Zenith’s LM Vertical Grinding Mill is an excellent choice. The LM Vertical Fine-powder Mill Series was developed specifically for fine powder applications. The LM130X-GX model has a plate diameter of 1300 mm, a capacity of 4 to 12 tons per hour, and an output fineness of 325 to 600 mesh. The larger LM220X-GX has a plate diameter of 2200 mm, a capacity of 15 to 30 tons per hour, and a main motor of 560 kW. For a larger calcite milling line in Vietnam, the LM220X-GX offers high throughput, accurate classification, and a small footprint. The vertical mill also has lower specific energy consumption than many other grinding systems, which is a major advantage in a market where electricity costs affect profitability. Its sealed design reduces dust leakage and meets modern environmental standards.

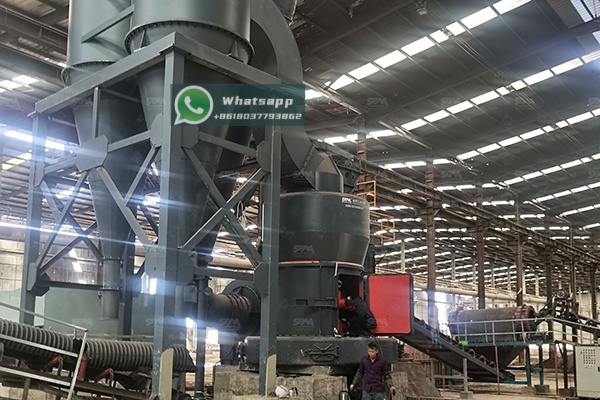

6. Process Flow of a Calcite Milling Line in Vietnam

A typical Zenith calcite milling line begins with a crusher that reduces run-of-mine calcite to below the mill feed size. Crushed material is then stored in a silo which feeds a vibrating feeder. The feeder sends the material into the main grinding mill, where rollers and grinding rings repeatedly crush and grind the calcite. A built-in or separate air classifier separates fine powder from oversize particles; the oversize fraction returns for further grinding. The finished 325 mesh powder is transported by airflow to a cyclone collector and bag filter, where it is separated from the carrier air. Finally, the powder can be sent to a surface coating system if stearic acid or other modifiers are required for coating-grade applications. Along the line, belt conveyors, bucket elevators, and air slides ensure continuous operation with minimal manual intervention.

7. Key Advantages of Zenith Equipment for Coating-Grade Calcite

Zenith grinding equipment offers several benefits for Vietnamese calcite powder producers. First, the grinding parameters are adjustable, allowing operators to control fineness and capacity to meet 325 mesh specifications while maintaining D97 stability. Second, the mills are constructed with high-quality wear-resistant materials, reducing downtime and maintenance costs. Third, the classifier system ensures high classification efficiency, which helps produce narrow particle size distribution suitable for coating applications. Fourth, Zenith mills are designed for energy efficiency. Compared with older technologies such as ordinary Raymond mills, the MTW and LM series consume less power per ton of finished powder. Finally, Shanghai Zenith provides complete technical support, spare parts, and installation guidance, making it easier for Vietnamese customers to build a successful calcite processing plant.

8. Conclusion

Vietnam’s demand for 325 mesh calcite coating material is growing rapidly, driven by the construction, paint, and plastic industries. A well-designed milling line should combine reliable grinding equipment, precise classification, low operating costs, and a compact layout. Shanghai Zenith Machinery Co., Ltd. offers proven solutions such as the MTW Trapezium Grinding Mill and the LM Vertical Fine-powder Mill, both capable of producing high-quality 325 mesh calcite powder. By choosing Zenith, Vietnamese producers can achieve stable production, excellent product quality, and long-term profitability. For a customized plant design and equipment selection, contact Shanghai Zenith Machinery.
