Introduction
Turkey’s dynamic construction sector and frequent seismic activity have created a strong demand for robust waterproofing systems. Tunnels, basements, foundation slabs and landfill liners must resist water ingress, and bentonite has become a key raw material in these applications. However, raw bentonite ore cannot be used directly. It must be dried, milled, classified and sometimes chemically activated to produce a consistent powder that satisfies the strict performance requirements of waterproofing products. A reliable bentonite milling line is therefore the foundation of successful production. Shanghai Zenith Machinery Co., Ltd. offers complete grinding solutions designed exactly for this purpose, combining high capacity, precise classification and energy-saving operation.
Bentonite is formed by the alteration of volcanic ash and consists primarily of montmorillonite. This mineral has a distinctive two-to-one layered crystal structure. When water enters between the layers, the clay swells and closes the flow paths. This swelling action gives bentonite its impermeable character and makes it ideal for waterproofing. For geosynthetic clay liners, bentonite sheets and self-sealing membranes, powdered bentonite must be fine, homogeneous and free of excessive grit. The milling process has to preserve the natural swelling ability of the clay while reducing particle size to the target range.
Why Turkey Needs a Dedicated Bentonite Milling Line
Turkey is one of the leading bentonite producers in the world, with significant deposits in Central Anatolia, the Marmara region and other areas. The local construction market is expanding rapidly, especially after several major earthquakes highlighted the importance of durable buildings and infrastructure. Waterproofing is an important part of this resilience, and sodium bentonite products are widely used in below-grade structures, underground parking areas, water-barrier liners and tunnel insulation layers.
Yet Turkish bentonite ores vary in their moisture content, montmorillonite concentration and sodium/calcium ratio. Some deposits require sodium activation with soda ash to improve swelling capacity. A milling line designed for waterproofing must be flexible enough to handle these variations. Shanghai Zenith grinding equipment offers adjustable rotating speed and classifier settings, enabling operators to control fineness and production capacity in real time.
Key Design Requirements of a Bentonite Grinding Plant
A successful bentonite milling line includes several stages: primary crushing, drying, grinding, classification and dust collection. The raw ore usually enters with a moisture content above 15 percent. Moisture must be reduced to around 8 percent or below before fine grinding. In Zenith’s vertical grinding mills, hot air performs the drying duty while the mill is running. This eliminates the need for a separate rotary dryer and lowers the total system cost.
In the grinding chamber, the bentonite is continuously rubbed and pressed between rollers and the grinding table. The dried fines are transported by air flow to a dynamic classifier. Oversize particles return to the grinding table for another pass, while qualified powder enters the bag filter and is collected as final product. This closed-circuit system provides a narrow particle size distribution, which is important for even swelling in waterproofing products.
Recommended Zenith Grinding Mills
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has achieved great success in the field of ultrafine powder grinding. For Turkish waterproofing applications, Zenith recommends two proven solutions: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill.
MTW Trapezium Grinding Mill

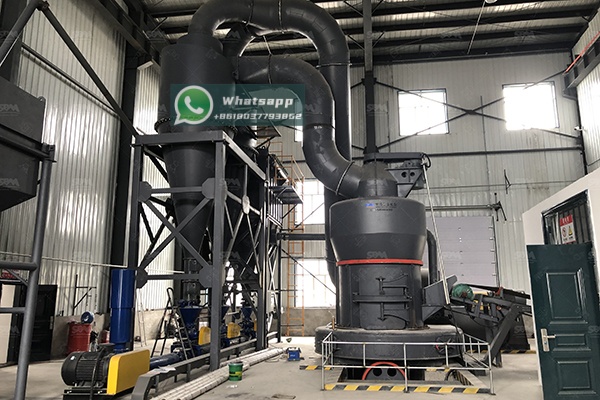

The MTW series is a modern, patented mill with a compact layout, long service life and environmentally friendly operation. It can accept feed size up to 50 mm and generate products from 1.6 mm to 0.045 mm. This means it can easily produce 200-mesh and 325-mesh bentonite powder, which is commonly used in GCLs and waterproofing panels. The MTW175G model has a capacity of 9.5 to 25 tons per hour and is powered by a 160 kW main motor plus a 200 kW fan motor. For medium-size operations, the MTW138Z offers 6 to 17 tons per hour and lower power consumption. These mills are particularly suitable for plants that need high throughput and stable quality.
| Model | Max feed size | Final size | Capacity | Main motor |
|---|---|---|---|---|
| MTW138Z | <35 mm | 1.6–0.045 mm | 6–17 t/h | 90 kW |
| MTW175G | <40 mm | 1.6–0.045 mm | 9.5–25 t/h | 160 kW |
LUM Ultrafine Vertical Mill

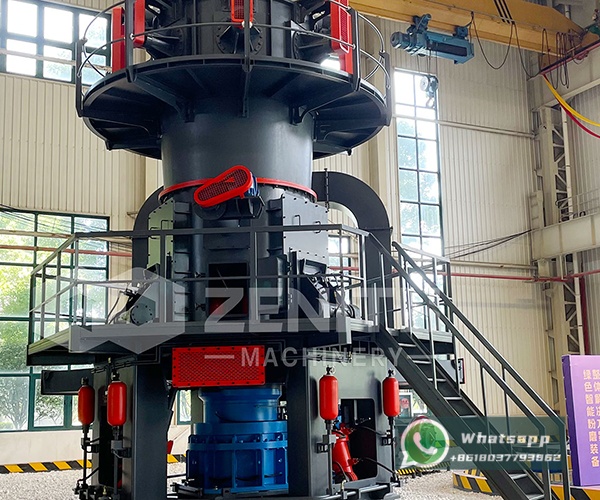

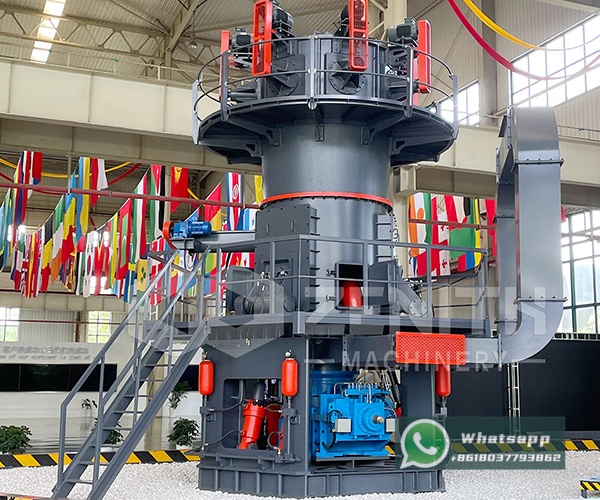

For waterproofing products that demand very fine and highly reactive bentonite, the LUM Ultrafine Vertical Mill is the ideal solution. It integrates grinding, drying, classification and conveying in one machine. The LUM mill can achieve particle size distribution D97 from 5 to 30 microns, which is much finer than traditional mills. Such ultrafine bentonite provides greater surface area and more uniform dispersion in polymer-modified membranes, injectable grouts and premium GCL products. The LUM1836 model has a main machine power of 355 to 400 kW and a capacity of 2.3 to 15 tons per hour. The intelligent control system allows the operator to adjust classifier speed and mill pressure, ensuring that product fineness remains stable even when raw ore properties change.
| Model | Main machine power | Capacity | Size distribution D97 |
|---|---|---|---|
| LUM1525 | 220–250 kW | 1.6–11.5 t/h | 5–30 μm |
| LUM1836 | 355–400 kW | 2.3–15 t/h | 5–30 μm |
Complete Line and After-Sales Support
Zenith can supply not just individual mills but also the complete bentonite milling line. The equipment list usually includes a jaw crusher, bucket elevator, storage silo, vibrating feeder, grinding mill, air heater, bag filter, induced draft fan and electrical control panel. Zenith engineers work with customers to design the line layout and recommend the most suitable mill configuration based on ore moisture, target fineness and capacity. After installation, Zenith provides operator training, spare parts supply and maintenance service. This strong support is especially valuable for Turkish contractors and mining companies entering the waterproofing bentonite market.
The recommended line can produce all common bentonite grades for waterproofing: 100-mesh for base layers, 200-mesh for GCLs, 325-mesh for membranes and even ultrafine powder for specialized grouts. It also reduces energy consumption and dust emission because the entire system operates under negative pressure. With mounting environmental regulations in Turkey, a clean and efficient milling line from Zenith makes it easier to obtain permits and operate sustainably.
Conclusion
Bentonite remains one of the most effective sealing materials used in construction. For Turkish waterproofing manufacturers, the ability to grind bentonite into a consistent, high-quality powder is a major competitive advantage. Shanghai Zenith Machinery Co., Ltd. supplies advanced MTW and LUM mills that meet this challenge with high capacity, precise fineness and low energy consumption. A properly designed bentonite milling line for Turkey waterproofing products will improve product performance, reduce waste and help manufacturers deliver reliable water protection for years to come.
