Bentonite grinding mill for drilling fluid processing in Oman

Introduction

Bentonite is one of the most important industrial minerals used in drilling fluid systems. In Oman, where oil and gas exploration and production continue to expand, high-quality bentonite plays a critical role in maintaining borehole stability, controlling filtration loss, cooling drill bits, and carrying cuttings to the surface. To meet API and client-specific specifications, bentonite must be processed into a fine, consistent powder with controlled particle size distribution. This is why choosing the right bentonite grinding mill is essential for drilling fluid processing in Oman.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. With advanced research, development, and production capabilities, Zenith provides reliable grinding solutions for bentonite processors, drilling fluid suppliers, and oilfield service companies in Oman and across the Middle East.

Why Bentonite Quality Matters for Drilling Fluids

Drilling fluid grade bentonite is not simply a fine powder. Its performance depends on mineral composition, sodium activation, moisture content, swelling capacity, viscosity, and particle size. In water-based drilling fluids, bentonite forms a thixotropic gel that suspends weighting materials and drill cuttings. It also creates a low-permeability filter cake on the borehole wall, reducing fluid loss into permeable formations.

If the bentonite powder is too coarse, hydration may be slow and yield may be lower. If the powder is over-ground or contaminated, rheological properties can become unstable. Therefore, the grinding circuit must deliver a consistent product, typically in the range of 200 to 325 mesh, while preserving the beneficial properties of the clay. In Oman’s high-temperature and high-salinity drilling environments, this consistency becomes even more important.

Bentonite Processing Steps for Drilling Fluid Applications

Crushing and Drying

Raw bentonite is first crushed to a suitable feed size. Because bentonite can contain high moisture, especially in humid or rainy seasons, drying is often required before grinding. The moisture content should be reduced to a level that allows efficient milling and stable classification.

Grinding and Classification

The crushed and dried material is fed into a grinding mill. The mill reduces the particles and works with a classifier or separator to produce the target fineness. For drilling fluid processing, the final product should be uniform, free of excessive coarse particles, and easy to hydrate at the rig site or mixing plant.

Storage and Quality Control

Finished bentonite powder should be stored in dry, sealed silos or bags to prevent moisture absorption. Regular testing of viscosity, filtrate loss, residue, and moisture helps ensure that each batch meets API 13A or customer requirements.

Recommended Zenith Grinding Mills for Bentonite in Oman

Shanghai Zenith Machinery offers a complete range of industrial powder grinding equipment. For bentonite drilling fluid processing in Oman, two products are particularly suitable: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.

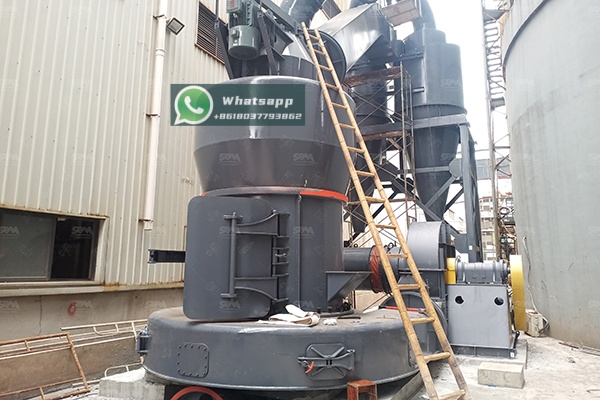

MTW Trapezium Grinding Mill

The MTW Trapezium Grinding Mill is a patented grinding mill known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. This makes it an excellent choice for producing drilling fluid grade bentonite in the 200 to 325 mesh range.

For bentonite plants in Oman, the MTW mill offers stable capacity, low vibration, and efficient powder classification. Models are available to match small, medium, and large production requirements.

For a typical bentonite drilling fluid project in Oman, the MTW138Z or MTW175G can be a practical choice, depending on required output and site conditions.

LM Vertical Grinding Mill

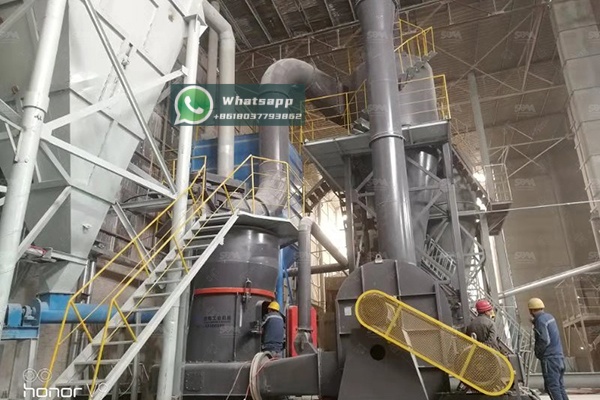

The LM Vertical Grinding Mill integrates crushing, grinding, powder selection, drying, and material conveying into a single machine. It occupies a small area, produces fine final powder, and provides an eco-friendly production solution. For bentonite processing, this integrated design is especially valuable when raw material moisture varies or when the plant needs high capacity with low operating cost.

The LM Vertical Mineral Mill Series can process bentonite with capacities from 10 t/h to 170 t/h, depending on the model. The output fineness can be adjusted between 170 and 40 microns, which covers many drilling fluid specifications. For large-scale bentonite projects in Oman, the LM190K or LM280K can support continuous production and reduce material handling.

With its drying and classifying functions, the LM Vertical Grinding Mill can simplify the flowsheet and improve product consistency. This is a strong advantage for Oman-based processors who need reliable output for drilling fluid supply chains.

How to Select the Right Bentonite Grinding Mill

Selecting a mill for bentonite drilling fluid processing depends on several factors: raw material moisture, feed size, target fineness, required capacity, available space, and local environmental conditions. A smaller operation may prefer the MTW Trapezium Grinding Mill for flexible production and precise fineness. A larger project with high capacity and variable moisture may benefit from the LM Vertical Grinding Mill.

Zenith’s engineering team can help evaluate these factors and recommend the most suitable configuration, including crushers, dryers, feeders, classifiers, dust collectors, and storage systems. This complete approach helps clients in Oman achieve efficient production, consistent quality, and lower long-term operating costs.

Conclusion

Bentonite is a vital material for drilling fluid systems in Oman’s oil and gas industry. Producing high-quality drilling fluid grade bentonite requires reliable crushing, drying, grinding, and classification. Shanghai Zenith Machinery Co., Ltd. offers proven grinding equipment, including the MTW Trapezium Grinding Mill and LM Vertical Grinding Mill, both of which are well suited to bentonite processing. With the right mill and process design, Oman’s bentonite producers and drilling fluid suppliers can improve product quality, increase capacity, and support demanding oilfield operations.
