Basalt Mill for Asphalt Additive Powder in Oman

Oman is investing heavily in highways, expressways, ports, airports, and urban roads under Vision 2040. Asphalt pavements in the Sultanate must withstand high summer temperatures, heavy axle loads, occasional flash floods, coastal humidity, and windblown desert dust. To improve rutting resistance, stiffness, moisture stability, and durability, asphalt producers increasingly use mineral additives. Basalt powder is one of the most effective additives because it is hard, angular, chemically stable, and compatible with bitumen. Producing the right basalt powder, however, requires a reliable industrial grinding system. Shanghai Zenith Machinery Co., Ltd., a specialist in ore grinding and ultra-fine powder equipment, offers proven basalt mills for asphalt additive powder in Oman.

Basalt quarry in Oman for asphalt additive powder production

Why Basalt Powder Is Used as an Asphalt Additive

Basalt is a volcanic rock with high compressive strength, high density, and excellent resistance to abrasion. When ground to a controlled fineness, basalt powder acts as a mineral filler and reinforcing additive in asphalt mixtures. It fills voids between aggregates, increases the effective binder film thickness, and improves the mechanical interlock of the mix. In hot climates such as Oman, basalt powder can raise the softening point of the mastic, reduce permanent deformation, and enhance resistance to rutting. It also helps reduce moisture damage in coastal projects and improves the long-term aging performance of asphalt pavements.

For asphalt additive applications, basalt powder is typically ground to 200–400 mesh, with a preferred D97 between 45 and 75 microns. Some high-performance or specialty mixes require finer powder, from 500 mesh to 1250 mesh or even 2500 mesh. The exact specification depends on the asphalt mix design, climate zone, traffic level, and local standards. Therefore, the grinding mill must deliver stable fineness, high capacity, low contamination, and reliable operation with hard and abrasive basalt.

Key Grinding Challenges for Basalt in Oman

High abrasiveness: Basalt often contains silica and has a Mohs hardness of 6–7. Wear parts must be made of high-chrome alloy, ceramic composite, or other wear-resistant materials.
Moisture control: Raw basalt can contain surface moisture, especially after washing or rainy periods. Integrated drying or pre-drying may be required.
Fineness consistency: Asphalt additive powder must meet a narrow particle-size distribution. Efficient dynamic classifiers are essential.
Dust collection: Oman has strict environmental requirements. Pulse-jet bag filters and sealed conveying systems are necessary.
Capacity matching: Asphalt plants may need 5–50 t/h of basalt powder, while centralized filler production may require 50–150 t/h.

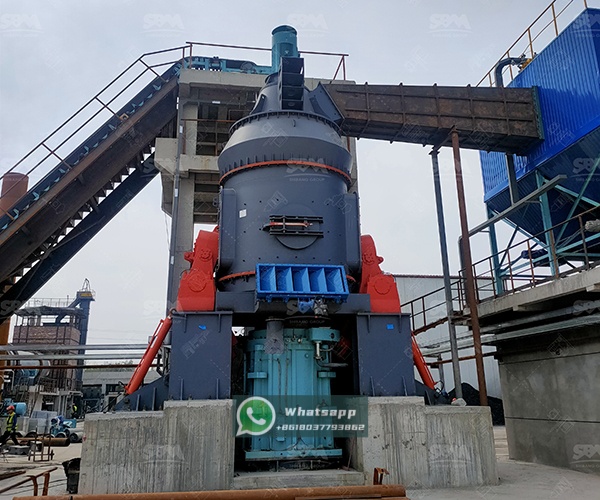

LM Vertical Grinding Mill for basalt powder production in Oman

Recommended Zenith Basalt Mills for Asphalt Additive Powder

Shanghai Zenith Machinery Co., Ltd. designs and manufactures a complete range of industrial grinding equipment. For basalt asphalt additive powder in Oman, we recommend the LM Vertical Grinding Mill and the MTW Trapezium Grinding Mill. Both are robust, energy-efficient, and suitable for continuous production.

1. LM Vertical Grinding Mill: Large-Scale, Integrated Basalt Powder Production

The LM Vertical Grinding Mill integrates crushing, grinding, powder selection, drying, and material conveying in one compact system. It is an excellent choice for Oman producers who need high output and stable fineness. The mill uses a vertical grinding roller and plate, and the classifier can be adjusted to produce asphalt filler powder with D97 from about 40 to 170 microns. For large road projects, the LM190K and LM280K models offer strong capacity and low specific energy consumption.

Model	Plate diameter (mm)	Capacity (t/h)	Output fineness (μm)	Max feed size (mm)	Main motor (kW)
LM130K	1300	10–28	170–40	<38	200
LM190K	1900	23–68	170–40	<45	500
LM280K	2800	50–170	170–45	<50	1250

Key advantages include: high grinding efficiency, low wear rate with optimized roller and plate materials, integrated hot-air drying for moisture control, compact footprint, low noise, and a negative-pressure dust-collection system. The LM mill is ideal for a dedicated basalt filler plant supplying multiple asphalt mixing stations in Muscat, Sohar, Duqm, or Salalah.

2. MTW Trapezium Grinding Mill: Flexible Medium-Scale Basalt Milling

The MTW Trapezium Grinding Mill is a patented, eco-friendly mill with a compact structure and long service life. It is suitable for basalt processing with a maximum feed size of 50 mm and a final product as fine as 0.038 mm. For asphalt additive powder, the MTW138Z and MTW175G are particularly practical choices for medium-scale production. They can produce 6–25 t/h of fine basalt powder, depending on the target fineness and raw material grindability.

Model	Max. Feed Size (mm)	Final size (mm)	Capacity (t/h)	Main motor (kW)	Fan motor (kW)
MTW110	<30	1.6–0.045	3–9	55	55
MTW138Z	<35	1.6–0.045	6–17	90	110
MTW175G	<40	1.6–0.045	9.5–25	160	200
MTW215G	<50	1.6–0.045	15–45	280	315

The MTW mill is easy to operate and maintain, with a curved blade and high-density turbine classifier that improve classification accuracy. It also has an environmental advantage through efficient dust collection and low noise. For Omani contractors and quarry operators who already have crushing and screening facilities, the MTW mill can be integrated into an existing basalt aggregate line to produce asphalt additive powder.

MTW Trapezium Grinding Mill for basalt asphalt additive powder

Typical Basalt Powder Production Line for Oman

A complete basalt powder system may include: raw material hopper, vibrating feeder, jaw crusher, impact crusher or cone crusher, bucket elevator, storage silo, grinding mill, dynamic classifier, cyclone collector, pulse-jet dust collector, air fan, screw conveyor, and packing machine. For the LM Vertical Grinding Mill, hot air can be introduced from a hot-air furnace to dry basalt with moisture up to 10–15% in some cases. For the MTW Trapezium Grinding Mill, material moisture should generally be controlled below 6% for stable operation. Wear parts should be selected according to the abrasiveness of the basalt. Automation can include PLC control, remote monitoring, and automatic lubrication.

Why Choose Shanghai Zenith Machinery Co., Ltd.

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For basalt asphalt additive powder in Oman, Zenith can provide laboratory testing, process design, equipment manufacturing, installation, commissioning, operator training, and long-term spare-parts support. The company has experience in exporting to the Middle East and can configure mills for 380 V/440 V, 50 Hz power supply and local environmental conditions.

Conclusion

Basalt powder is a high-value asphalt additive for roads in Oman. It improves rutting resistance, stiffness, and durability under hot and harsh conditions. To produce high-quality basalt powder at competitive cost, the grinding mill must handle abrasion, control fineness, and maintain continuous operation. Shanghai Zenith Machinery Co., Ltd. recommends the LM Vertical Grinding Mill for large-scale, integrated production and the MTW Trapezium Grinding Mill for flexible medium-scale production. With the right mill, Omani asphalt producers and quarry operators can turn basalt resources into a profitable, high-performance asphalt additive powder business.
