Basalt Grinding Mill for Road Material Powder in South Africa

South Africa has one of the largest and most strategically important road networks in Africa. National highways, provincial routes, municipal roads, industrial haul roads, and mining access roads all depend on durable, high-quality materials. Basalt is one of the most valuable raw materials for this infrastructure because it is hard, dense, angular, and resistant to abrasion. It is widely used as crushed stone aggregate, railway ballast, concrete aggregate, and asphalt mineral filler. When basalt is ground into powder, it becomes a high-performance road material for asphalt mastic, slurry seal, micro-surfacing, concrete admixture, and stabilized base layers. This article explains how to choose a basalt grinding mill for road material powder in South Africa and recommends two reliable solutions from Shanghai Zenith Machinery Co., Ltd.

Basalt is a fine-grained volcanic rock with a Mohs hardness of approximately 6 to 7. Its high silica content and abrasive nature make it difficult to grind. A conventional mill may suffer from rapid wear, unstable output, high energy consumption, and frequent downtime. For South African quarries and road contractors, the right grinding equipment must handle hard basalt, produce consistent particle size, operate efficiently in dusty environments, and keep maintenance costs under control.

Why Basalt Powder Is Important for South African Road Construction

South Africa’s road authorities and contractors require large volumes of high-quality aggregate and filler. Basalt powder is used in asphalt mixtures as a mineral filler. It fills voids between larger aggregate particles, increases the stiffness of the asphalt mastic, improves resistance to moisture damage, and enhances rutting resistance under heavy traffic and high temperatures. In concrete, basalt powder can improve packing density and reduce permeability. In stabilized base courses, finely ground basalt can act as a reactive or semi-reactive additive when combined with cement, lime, or other binders.

The required fineness depends on the application. For asphalt mineral filler, basalt powder often needs to pass a 75 μm or 45 μm sieve, equivalent to about 200 to 325 mesh. For concrete and base stabilization, a coarser powder from 0.075 mm to 0.6 mm may be acceptable. In some high-performance asphalt applications, a finer product with a controlled particle size distribution is preferred. Therefore, a flexible grinding mill with an adjustable classifier is essential.

South Africa has significant basalt resources in regions such as Mpumalanga, Limpopo, Free State, Northern Cape, and the Karoo igneous province. Many quarries already produce crushed basalt for road aggregate. By adding a grinding circuit, these operations can convert smaller fractions and surplus fines into valuable road material powder. This improves resource utilization, reduces waste, and creates a new revenue stream for quarry owners and road material suppliers.

Grinding Challenges and Selection Criteria

Basalt grinding is challenging because the material is hard, abrasive, and sometimes contains moisture. Wear parts such as rollers, rings, liners, and blades must be made from high-quality alloy or ceramic materials. The mill should also have a reliable classification system to prevent over-grinding and ensure a stable final product. Dust collection is another critical factor, especially in South African operations that must comply with environmental and workplace safety regulations.

When selecting a basalt grinding mill for road material powder, consider the following criteria: maximum feed size, required final fineness, hourly capacity, moisture content, energy consumption, maintenance interval, spare parts availability, automation level, and footprint. For a small asphalt plant, a capacity of 3 to 10 t/h may be sufficient. For a commercial powder plant supplying multiple road projects, 20 to 100 t/h or more may be necessary. A complete solution should include crushing, feeding, grinding, classification, dust collection, storage, and loading.

Recommended Product 1: MTW Trapezium Grinding Mill

Shanghai Zenith Machinery’s MTW Trapezium Grinding Mill is an excellent choice for medium-scale basalt powder production. It is a patented grinding mill known for its compact structure, long service life, and eco-friendly design. The MTW mill can process materials with a maximum input size of 50 mm and produce a final product as fine as 0.038 mm. It is suitable for processing basalt into asphalt filler, concrete powder, and other road material powders.

The MTW mill uses a high-efficiency classifier, curved grinding blades, wear-resistant rollers and rings, and a bevel gear transmission system. Its internal thin oil lubrication system reduces maintenance frequency and improves reliability. The pulse dust collector helps meet strict dust emission standards. For South African basalt processing, the MTW138Z, MTW175G, and MTW215G are popular models. The MTW175G offers a balanced combination of capacity and power, producing 9.5 to 25 t/h with a main motor of 160 kW. The MTW215G is suitable for larger operations, with 15 to 45 t/h capacity, a maximum feed size of 50 mm, and a main motor of 280 kW.

MTW Trapezium Grinding Mill Parameters

For a South African quarry that supplies asphalt plants, the MTW175G is a strong recommendation. It can produce 200 to 325 mesh basalt powder while maintaining stable output. For a larger road material powder project, the MTW215G provides higher capacity and can be integrated with automatic feeding and storage systems.

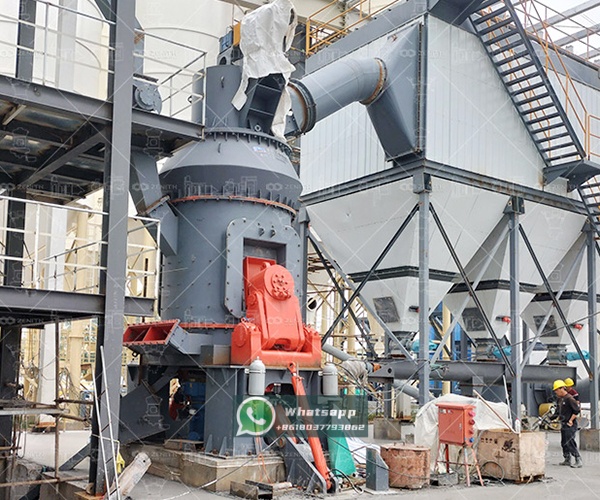

Recommended Product 2: LM Vertical Grinding Mill

For high-capacity basalt grinding, the LM Vertical Grinding Mill is another excellent solution from Shanghai Zenith Machinery. It integrates crushing, grinding, powder selection, drying, and material conveying into one system. The LM mill occupies a small area, produces a fine and uniform final powder, and is designed for eco-friendly production. It is ideal for large road material powder plants, quarry-based grinding stations, and industrial mineral processing projects.

The LM Vertical Grinding Mill is available in several series, including the vertical mineral mill, vertical coal mill, vertical slag mill, and vertical fine-powder mill. For basalt road material powder, the vertical mineral mill series is the most relevant. Models such as LM130K, LM190K, and LM280K can process basalt with a maximum feed size below 50 mm and produce output fineness from 170 to 40 μm. Capacity ranges from 10 to 170 t/h, making the LM mill suitable for large South African road and infrastructure programs.

For a medium-to-large basalt powder plant, the LM190K can deliver 23 to 68 t/h with a main motor of 500 kW. For very large projects, the LM280K can deliver 50 to 170 t/h with a main motor of 1250 kW. The LM mill uses wear-resistant rollers and liners, hydraulic operation, and advanced PLC control. Its negative-pressure grinding system and pulse dust collector help reduce dust emissions and improve the working environment.

LM Vertical Mineral Mill Parameters

Configuring a Complete Basalt Grinding Line in South Africa

A complete basalt grinding line usually includes a hopper, vibrating feeder, jaw crusher, cone crusher, vibrating screen, grinding mill, classifier, cyclone, pulse dust collector, screw conveyor, bucket elevator, storage silo, and packing or bulk loading system. The primary and secondary crushing stages reduce basalt to the feed size required by the mill. The grinding stage produces the final powder, while the classifier ensures the required particle size distribution.

In South Africa, project planning should consider power supply, water availability, transport logistics, spare parts, and local environmental regulations. A sealed material handling system and high-efficiency dust collector are important for mines and quarries near residential areas. Automated control systems can reduce labor requirements and improve product consistency. Shanghai Zenith Machinery can provide customized process design, equipment manufacturing, installation guidance, and after-sales service for South African customers.

Why Choose Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. Its main products include the MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. With rich experience in mineral processing and powder grinding, Shanghai Zenith can help South African customers select the right mill for basalt road material powder.

For small and medium capacity projects, the MTW Trapezium Grinding Mill offers flexible fineness and reliable performance. For large capacity projects, the LM Vertical Grinding Mill provides high throughput, low operating cost, and integrated drying and classification. Both options can be customized with wear-resistant materials, automatic control, and dust collection systems to meet the demands of basalt grinding in South Africa.

Conclusion

Basalt is a strategic material for road construction in South Africa. Its hardness and abrasiveness require a robust, efficient, and durable grinding mill. Whether you are producing asphalt mineral filler, concrete powder, or stabilized base material, the right equipment can improve product quality, reduce downtime, and increase profitability. Shanghai Zenith Machinery recommends the MTW Trapezium Grinding Mill for medium-scale basalt powder production and the LM Vertical Grinding Mill for high-capacity road material powder plants. With the right process design and equipment, South African quarry owners and road material suppliers can turn basalt resources into valuable powder products for the country’s growing infrastructure needs.
