Barite Grinding Mill for 400 Mesh Drilling Fluid in Qatar

Qatar’s oil and gas industry is expanding rapidly, especially with the North Field East and North Field South projects. As drilling activity increases, demand for high-quality drilling fluid materials also grows. Barite, or barium sulfate (BaSO4), is the most widely used weighting agent in drilling fluids. It increases mud density, controls formation pressure, and helps maintain wellbore stability. For many drilling programs in Qatar, operators require barite ground to 400 mesh to achieve better suspension, lower sag, and smoother rheology. This article explains why 400 mesh barite matters and how Shanghai Zenith Machinery Co., Ltd. can provide reliable grinding solutions for Qatar.

Why 400 Mesh Barite Is Important for Drilling Fluids

Drilling fluid, also called drilling mud, is a complex mixture of water, oil, clay, chemicals, and weighting agents. Barite is added to increase density up to 4.2-4.5 specific gravity. Particle size is critical. If the barite is too coarse, it can settle in the borehole, causing sag and density variation. If it is too fine, the surface area increases and viscosity may rise, requiring more chemical treatment. A 400 mesh specification is about 38 microns. This fineness provides a good balance between suspension stability and rheology. In Qatar’s high-temperature, high-pressure wells, stable mud properties are essential. Fine barite also helps reduce abrasion on pumps, drill pipes, and downhole tools. In addition, a controlled particle size distribution supports filter cake quality and reduces fluid loss.

Many international standards, such as API 13A and ISO 13500, define drilling-grade barite requirements. While 325 mesh is a common baseline, project specifications often call for 400 mesh or a custom PSD. For offshore and gas drilling in Qatar, 400 mesh barite can improve weighting performance and reduce the risk of barite sag during long horizontal and extended-reach wells.

Grinding Challenges for Barite in Qatar

Barite has a Mohs hardness of about 3 to 3.5. It is not extremely hard, but its high density and abrasive nature still create wear on grinding equipment. In Qatar, additional challenges include high ambient temperatures, dust, and the need for continuous operation. A barite grinding plant must deliver stable fineness, high capacity, low noise, and efficient dust collection. Moisture control is also important because raw barite may absorb humidity during storage and transport. A reliable grinding mill must combine robust mechanical design, advanced classification, and easy maintenance.

Recommended Solution 1: MTW Trapezium Grinding Mill

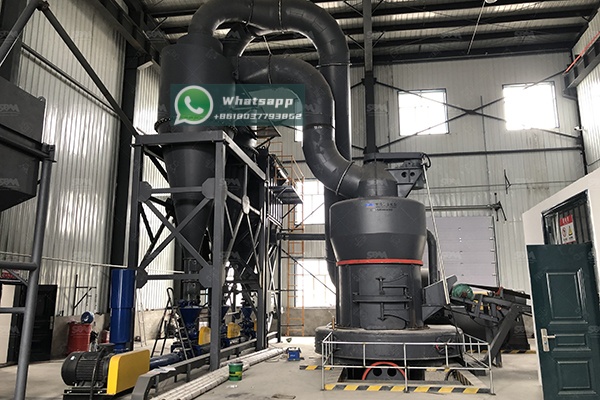

Shanghai Zenith Machinery Co., Ltd. recommends the MTW Trapezium Grinding Mill as the primary choice for 400 mesh barite production in Qatar. The MTW mill is a patented grinding equipment known for its compact structure, long service life, and eco-friendly design. It can process materials with a maximum feed size of 50 mm and produce a final product as fine as 0.038 mm, which matches the 400 mesh requirement. With an integrated classifier, the MTW mill can adjust product fineness efficiently. It also features low vibration, low noise, and a reliable lubrication system, making it suitable for hot and dusty environments.

For Qatar projects, models such as MTW138Z, MTW175G, and MTW215G are available. The MTW138Z offers 6-17 t/h, while the MTW175G can reach 9.5-25 t/h. These capacities can support medium to large drilling fluid barite supply. The MTW mill can be combined with a jaw crusher, bucket elevator, vibrating feeder, and dust collector to form a complete production line.

Recommended Solution 2: XZM Ultrafine Grinding Mill

For clients who need ultra-fine barite or a flexible production range, Shanghai Zenith also offers the XZM Ultrafine Grinding Mill. This mill is designed for superfine powder production and can achieve 325-2500 mesh. At 400 mesh, it provides excellent fineness control and a narrow particle size distribution. The XZM mill is suitable for soft to medium-hard materials with moisture below 6%. It is an ideal option for specialty drilling fluid formulations, laboratory-scale production, or smaller batch operations. The XZM221 model can produce 500-4500 kg/h, while the XZM268 model can reach 5000-25000 kg/h. Both models use advanced classifying technology and can be equipped with pulse dust collectors to meet strict environmental requirements.

Complete Barite Grinding Plant Configuration

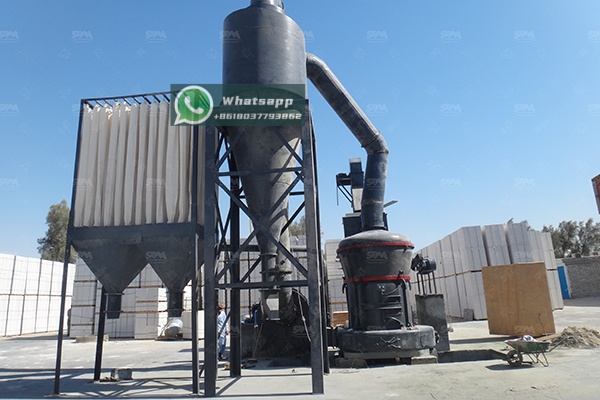

A complete 400 mesh barite grinding plant usually includes the following stages: raw material storage, crushing, grinding, classification, dust collection, and packing. The raw barite is first crushed by a jaw crusher to a size suitable for the mill. Then a bucket elevator and vibrating feeder feed the material evenly into the grinding mill. The ground powder enters a classifier, where coarse particles are returned for further grinding and fine particles go to a cyclone or dust collector. Finally, the finished 400 mesh barite is packed into bulk bags or trucks for delivery to drilling sites in Qatar.

Quality Control for Drilling Fluid Barite

Quality control is essential for drilling-grade barite. Producers should test specific gravity, particle size distribution, moisture content, and water-soluble alkaline earth metals. A laser particle size analyzer can verify the 400 mesh passing rate. Regular sampling at the mill outlet helps maintain consistent quality. The grinding system should be equipped with an efficient dust collector to prevent material loss and protect workers. In Qatar, where environmental regulations are strict, a closed grinding circuit with negative pressure operation is recommended.

Why Choose Shanghai Zenith Machinery

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in research, development, and production of industrial powder grinding equipment. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For Qatar customers, Zenith can provide customized solutions, technical support, spare parts, and training. The company focuses on reliable performance, energy efficiency, and environmental protection.

Conclusion

Barite grinding for 400 mesh drilling fluid in Qatar requires the right equipment, process design, and quality control. The MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill from Shanghai Zenith Machinery are strong solutions for this application. They offer adjustable fineness, stable capacity, and efficient dust collection. As Qatar continues to develop its oil and gas resources, a reliable barite grinding plant will help operators achieve better drilling performance, lower total cost, and safer operations. For more information, contact Shanghai Zenith Machinery Co., Ltd. for a customized barite grinding solution in Qatar.
