Barite milling line for Oman oilfield chemicals

Introduction

Barite (barium sulfate, BaSO₄) is an essential mineral in the oil and gas industry, primarily used as a weighting agent in drilling muds to control formation pressure and prevent blowouts. In the sultanate of Oman, where oilfield operations demand high-performance drilling fluids, the quality and consistency of barite powder are critical. A dedicated barite milling line must deliver a product with a specific gravity of at least 4.2 g/cm³, a fineness of 97% passing 200 mesh (or 325 mesh for special applications), and low moisture content. This article explores the design, equipment selection, and process optimization of a modern barite grinding plant tailored for Oman’s oilfield chemical sector, leveraging the advanced machinery from Shanghai Zenith Machinery Co., Ltd.

Barite Properties and Grinding Challenges

Barite is a soft to medium-hard mineral (Mohs hardness 3–3.5) with a high density. The key challenges in barite milling include achieving a narrow particle size distribution, minimizing iron contamination (which can degrade mud properties), and ensuring high capacity with energy efficiency. Traditional ball mills can handle barite but often suffer from high power consumption and wear. Modern vertical roller mills and trapezium mills offer superior performance. For Oman’s harsh desert environment, equipment must also resist dust, heat, and require minimal maintenance.

Process Flow of a Barite Milling Line

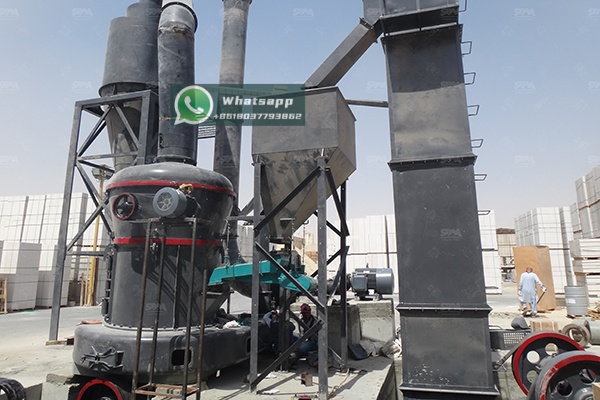

A typical barite milling line consists of: primary crushing (jaw crusher or hammer crusher), feeding system (vibrating feeder), grinding mill, air classifier, dust collector (bag filter or cyclone), product silo, and control system. The raw barite with a maximum size of 50 mm is fed into the grinding mill. For the oilfield grade, the mill must produce a fine powder with a fineness of D97 = 74 µm (200 mesh) or D97 = 45 µm (325 mesh). The following sections detail the core equipment.

Recommended Grinding Equipment from Shanghai Zenith

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with decades of experience in ultra-fine powder grinding. Their product portfolio includes the MTW Trapezium Grinding Mill, which is ideal for barite due to its compact structure, long service life, and eco-friendly design. The MTW series can process feed sizes up to 50 mm and produce a final product as fine as 0.038 mm (400 mesh). For higher capacity and finer requirements, the LUM Ultrafine Vertical Mill integrates grinding, classification, and drying in one unit, achieving fineness down to 5–30 µm.

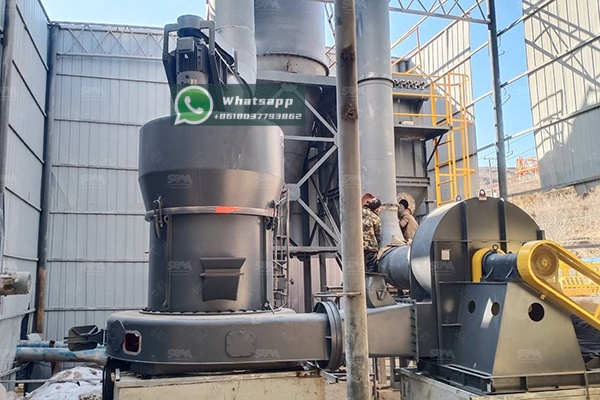

For a typical barite milling line in Oman (capacity 10–25 t/h, 200 mesh final product), we recommend the MTW175G Trapezium Grinding Mill. It has a main motor power of 160 kW, a fan motor of 200 kW, and can handle up to 40 mm feed, yielding 9.5–25 t/h at 1.6–0.045 mm fineness. This mill is equipped with multiple patents for high efficiency and low energy consumption. Alternatively, for a compact layout requiring less floor space, the LM190K Vertical Grinding Mill (capacity 23–68 t/h, 170–40 µm) is an excellent choice. Its integrated design reduces ancillary equipment and operational costs.

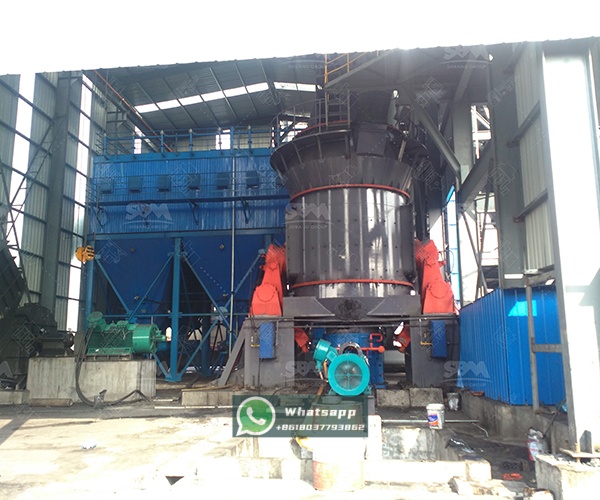

Another outstanding option is the LUM1836 Ultrafine Vertical Mill, which can produce ultra-fine barite powder (D97 = 5–30 µm) for specialized high-density drilling fluids. With a main motor power of 355–400 kW and capacity up to 15 t/h, it is perfect when the customer requires a 325 mesh or finer grade. The LUM series features intelligent control and automatic lubrication, reducing maintenance downtime.

Key Equipment Parameters Comparison

Below is a quick reference for selecting the right mill for a barite milling line in Oman:

These mills are manufactured by Shanghai Zenith, a company specialized in research, development, and production of industrial powder grinding equipment. Their machines are widely used in the Middle East for barite, bentonite, and other oilfield minerals.

Auxiliary Equipment and System Design

Besides the grinding mill, the barite milling line requires a reliable feeding system, efficient air classifier (dynamic classifier for high cut accuracy), pulse bag filter to meet environmental standards, and a screw conveyor or pneumatic system for product transport. Shanghai Zenith can supply complete turnkey solutions from primary crushing to final packaging. For example, a barite milling line with MTW175G can be paired with a ZSW vibrating feeder, a PC hammer crusher for pre-crushing, and a BLM series bag filter. The total system has a small occupational area and is easy to operate, which is crucial for remote oilfield locations in Oman.

Operational Benefits for Oman’s Oilfield Chemical Sector

Using the recommended mills offers several advantages: energy savings (the MTW series reduces power consumption by 30% compared to traditional ball mills), consistent product quality (the classifier ensures 97% passing 200 mesh), low maintenance (integral oil lubrication and wear-resistant materials prolong service life), and environmental compliance (negative pressure system eliminates dust leakage). Moreover, Shanghai Zenith provides local after-sales support in the GCC region, including spare parts and commissioning services.

Conclusion

For any oilfield chemical company in Oman seeking to establish or upgrade a barite grinding plant, the MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill from Shanghai Zenith Machinery Co., Ltd. represent the best balance of performance, reliability, and cost-efficiency. With capacities ranging from 10 to 70 t/h and fineness from 200 mesh to ultra-fine, these machines meet all API specifications for barite used in drilling fluids. Contact Shanghai Zenith for a customized barite milling line that will maximize your operational profitability.
