Petroleum coke grinding mill for Turkey 200 mesh kiln fuel

Introduction: The Growing Need for Petcoke Grinding in Turkey

Turkey’s cement industry has become one of the largest in Europe, and petroleum coke has emerged as a cost-effective alternative to natural gas and coal in rotary kilns. However, petcoke cannot be fired in large lumps. To achieve stable combustion, complete burn-out and efficient heat transfer, it must be finely ground to a target fineness of 200 mesh (75 microns). This article explains the key considerations for selecting a petroleum coke grinding mill for Turkish cement plants and recommends proven Zenith solutions.

Why 200 Mesh Fineness Is Critical for Kiln Fuel

When petcoke is injected into a cement kiln, its particle size has a direct influence on combustion:

• Combustion efficiency – At 200 mesh, the specific surface area is large enough to allow rapid ignition and complete burn-out, reducing unburned carbon in the clinker.
• Flame stability – Uniform fine particles help maintain a stable flame front, which is essential for clinker quality.
• Energy cost – Over-grinding wastes electricity, while under-grinding lowers thermal efficiency. The 75 micron target is the economic optimum for most petcoke kilns.
• Emissions control – Fine, complete combustion also reduces CO and volatile organic compound emissions.

Petcoke Grinding Challenges in Turkish Conditions

Petcoke differs from other solid fuels. It is hard, abrasive, and has a lower Hardgrove Grindability Index than coal, often between 40 and 60. It may also contain surface moisture from storage, and its dusty nature requires careful handling. Mill wear, power consumption and safety therefore become major concerns. Any grinding mill considered for this application must offer robust construction, high grinding force, adjustable classifier speed and a reliable inert operation environment.

Selecting the Right Petroleum Coke Grinding Mill

For a Turkish cement plant planning to fire petcoke at 200 mesh, the following criteria should be evaluated:

• Feed size: typically 20-50 mm after crushing.
• Fineness: 200 mesh (75 µm), with a controlled residue on 90 µm sieve.
• Moisture: ability to dry surface moisture up to 10-15% using hot gas.
• Capacity: must match kiln fuel demand, usually 10-50 t/h.
• Safety: inert gas protection, CO/O2 monitoring, and explosion relief.

Recommended Zenith Grinding Equipment

Shanghai Zenith Machinery Co., Ltd. is a leading manufacturer of ore grinding equipment in China. For petroleum coke used as kiln fuel in Turkey, Zenith offers the LM Vertical Coal Mill and the MTW Trapezium Mill. Both can be configured to produce 200 mesh powder with high efficiency and low operating cost.

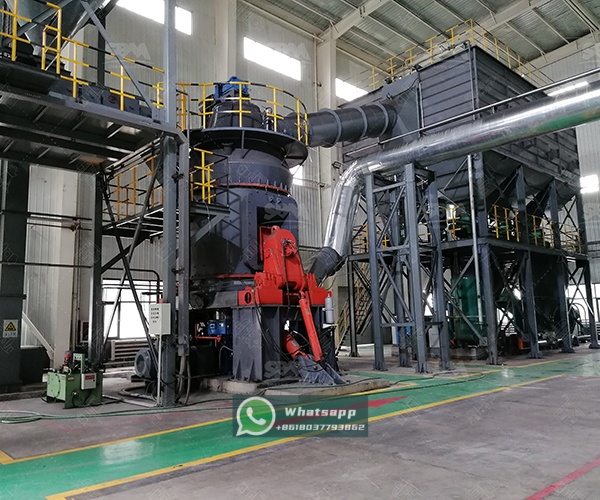

1. LM Vertical Coal Mill

The LM Vertical Grinding Mill integrates crushing, grinding, drying, powder selection and material conveying in one compact system. For fuel preparation, the Vertical Coal Mill series is particularly suitable for petcoke because of its high grinding pressure and built-in drying capability. The classifier can be adjusted to keep fineness around 200 mesh.

Relevant models include:

• LM130M – capacity 10-17 t/h, max feed <38 mm, main motor 185 kW.
• LM220M – capacity 35-50 t/h, max feed <50 mm, main motor 500 kW.
• LM280M – capacity 60-90 t/h, max feed <50 mm, main motor 900 kW.

These mills are also designed with a vertical arrangement that saves floor space and allow hot gas to dry moist petcoke inside the mill. Because the grinding and classification are fully integrated, the final product quality is stable, which is a crucial advantage for kiln fuel feeding.

2. MTW Trapezium Grinding Mill

For plants with lower fuel demand or where a horizontal mill layout is preferred, the MTW Trapezium Grinding Mill provides an economical solution. It is a multi-patented mill with compact structure, long service life and eco-friendly operation. It can accept feed sizes up to 50 mm and grind down to 0.045 mm, which includes the 200 mesh target. Key models are:

• MTW175G – capacity 9.5-25 t/h, max feed <40 mm, main motor 160 kW, fan motor 200 kW.
• MTW215G – capacity 15-45 t/h, max feed <50 mm, main motor 280 kW, fan motor 315 kW.

The trapezium grinding ring and roller design increases contact area, improves efficiency and lowers energy consumption. For petcoke with high abrasion, the wear parts are made of high quality alloy steel, ensuring longer service intervals.

Why Zenith Is the Right Partner for Turkish Cement Producers

Shanghai Zenith Machinery has decades of experience in powder grinding technology, from Raymond mills to ultrafine vertical mills. The company specialises in industrial grinding equipment and has installed many mills in quarries, cement plants and mineral processing lines around the world. With mature technology, responsive technical support and complete after-sales service, Zenith helps customers in Turkey achieve reliable petcoke preparation at 200 mesh for kiln fuel.

Conclusion

Petroleum coke will continue to play a major role in Turkish cement kiln fuel. Grinding it to 200 mesh is a technical requirement that affects combustion, clinker quality and operating cost. The LM Vertical Coal Mill and MTW Trapezium Mill from Shanghai Zenith offer two proven paths: high-capacity integrated drying and grinding for large cement lines, or flexible horizontal grinding for lower throughput applications. Both are able to deliver the required fineness and are supported by Zenith’s strong manufacturing and engineering capability.
