Petroleum coke grinding mill for Pakistan boilers

Introduction: The Growing Role of Petroleum Coke in Pakistan’s Energy Mix

Pakistan is increasingly using petroleum coke, or petcoke, as a cost-effective fuel in cement plants, power stations, and industrial boilers. Natural gas shortages and the high price of imported furnace oil have pushed many plant operators to switch to petcoke. Petcoke offers a high calorific value and low ash content, which makes it attractive for combustion. However, petcoke is also difficult to grind. Its low volatile matter, high hardness, and abrasive particles create serious challenges for conventional grinding equipment. A dedicated petroleum coke grinding mill is therefore essential for stable boiler operation, complete combustion, and lower operating costs.

Why Dedicated Petcoke Grinding Is Critical

In a pulverized fuel boiler, petcoke must be ground into a fine powder before it is injected through the burners. The particle size and size distribution determine flame stability, carbon burnout, and emission levels. Because petcoke has a low Hardgrove Grindability Index (HGI) compared with coal, it does not break down easily. A mill designed for soft coal will experience reduced capacity, excessive power consumption, and premature wear when used for petcoke.

Petcoke also contains high levels of sulphur and sometimes vanadium. These elements can cause corrosion and fouling in the boiler and in the mill internals. Therefore, the grinding machine must be built with robust materials and designed for easy inspection and maintenance. Moisture is another factor. Imported petcoke can contain up to 10 percent moisture, and the grinding mill must be able to dry the material while grinding. The integration of drying, grinding, and classifying in one machine is a major advantage.

Key Requirements for a Petroleum Coke Grinding Mill in Pakistan Boilers

• Fineness: The mill must produce a uniform powder with 80 percent passing 200 mesh, or about 0.075 mm.
• Capacity: Boiler plants need stable throughput from 10 to 90 tons per hour depending on boiler size.
• Drying ability: Hot air must be accepted to remove surface and internal moisture.
• Wear resistance: Grinding rollers and table must be made of high-chrome or special alloys.
• Energy efficiency: Low specific power consumption helps to reduce the cost per ton of fuel.
• Reliability: Continuous operation is necessary to avoid boiler shutdowns and production losses.

Shanghai Zenith Machinery: A Trusted Manufacturer of Grinding Equipment

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and other related devices. Its main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For petroleum coke grinding in Pakistan, two Zenith products stand out: the LM Vertical Grinding Mill and the MTW Trapezium Grinding Mill.

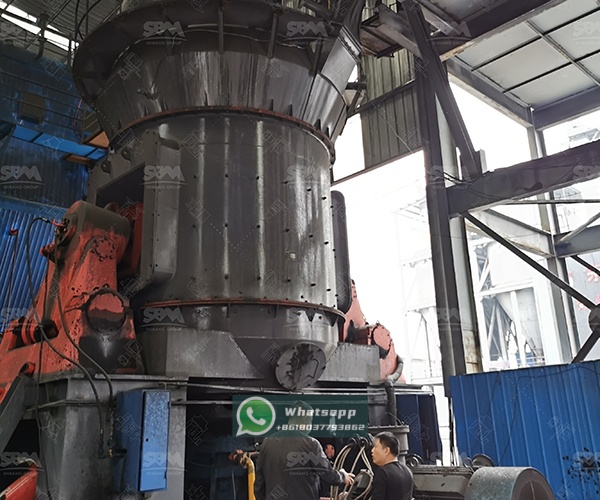

Recommended Product 1: LM Vertical Grinding Mill

The LM Vertical Grinding Mill is the ideal primary selection for medium- and large-scale petcoke grinding applications. It integrates five functions—crushing, grinding, powder selection, drying, and material conveying—into one machine. This compact design reduces the occupied area and simplifies the process layout. The LM vertical coal mill series is specifically engineered for coal and petroleum coke. It uses a hydraulic system to apply high pressure to the material bed, which is necessary for breaking hard petcoke particles. A dynamic separator adjusts the fineness to meet boiler requirements.

The following table shows the main parameters of the Zenith LM vertical coal mill series:

For a typical Pakistani cement plant or captive power unit, the LM220M provides an ideal balance of capacity and efficiency. With hot air injected into the mill, the LM series can dry high-moisture petcoke while producing a stable, fine fuel for the boiler.

Recommended Product 2: MTW Trapezium Grinding Mill

For smaller boiler systems, or for plants that need flexibility to grind different fuels, the MTW Trapezium Grinding Mill is a reliable and economical choice. The MTW mill holds multiple patents and is known for its compact structure, long service life, and eco-friendly design. It can accept feed sizes up to 50 mm and produce a final product adjustable down to 0.045 mm. The internal impeller classifier and curved air duct improve classification efficiency and reduce energy consumption.

The main parameters of the MTW series are shown below:

The MTW series is especially suitable for customers who require moderate capacity and lower initial investment. It can grind petcoke and coal, making it a versatile solution for Pakistan boilers that switch between fuels according to market availability.

Selecting the Right Mill for Your Pakistan Boiler Plant

The selection of a petroleum coke grinding mill depends on several factors: required throughput, available power, moisture content of the petcoke, target fineness, and site space. For large utility boilers with high fuel consumption, the LM Vertical Grinding Mill is the best option due to its high capacity and integrated drying system. For medium or small industrial boilers, the MTW Trapezium Grinding Mill offers flexibility and lower capital cost. Both machines are backed by Shanghai Zenith’s extensive experience in grinding technology. Zenith can provide a complete grinding system including raw material feeding, hot gas generation, dust collection, and automatic control.

Conclusion

Petroleum coke is likely to remain an important fuel for Pakistan boilers because of its cost advantage and high energy content. However, the success of any petcoke-fired boiler depends on the performance of its fuel grinding system. Shanghai Zenith Machinery Co., Ltd. supplies advanced petroleum coke grinding mills that deliver the required fineness, high capacity, energy efficiency, and long service life. By selecting the LM Vertical Grinding Mill or the MTW Trapezium Grinding Mill, plant operators in Pakistan can improve boiler reliability, reduce fuel costs, and maintain steady steam and power generation. Contact Zenith today to receive a tailored solution for your petcoke grinding project.
