Marble milling line for Bangladesh paint fillers

Introduction

Bangladesh’s paint industry has been growing steadily over the past decade, driven by rapid urbanization, infrastructure development, and a rising middle class. Paint manufacturers constantly seek high-quality fillers to improve opacity, durability, and cost-efficiency. Among various mineral fillers, ground marble (calcium carbonate) stands out due to its whiteness, chemical inertness, and excellent dispersion properties. To meet the increasing demand for fine and ultra-fine marble powders used in paints, a reliable and efficient marble milling line is essential. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding, offering advanced solutions tailored for the Bangladeshi market.

Characteristics of Marble for Paint Fillers

Marble, a metamorphic rock composed mainly of calcite (CaCO₃), is widely used as a filler in water-based and solvent-based paints. The key requirements for paint-grade marble powder include:

• High brightness (whiteness > 92%)
• Narrow particle size distribution (typically 5–100 μm for fillers, or even 2–10 μm for ultra-fine grades)
• Low moisture content (< 0.5%)
• Low abrasiveness to protect processing equipment

The hardness of marble (Mohs 3–4) makes it relatively easy to grind, but achieving consistent fineness and high throughput demands specialized milling equipment. Additionally, energy efficiency and low operating costs are critical for Bangladeshi producers to remain competitive.

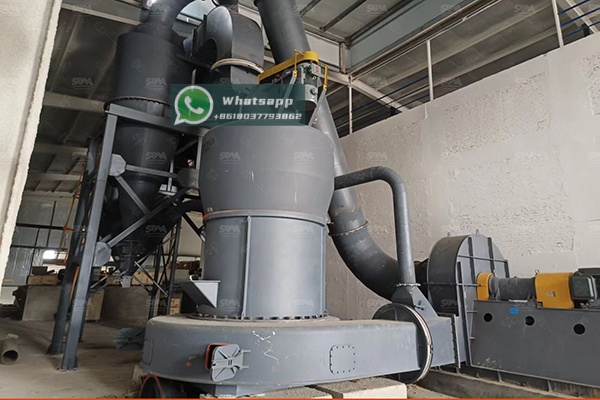

Complete Marble Milling Process

A typical marble milling line for paint fillers consists of three main stages: primary crushing, grinding & classification, and product collection & packaging. Below is a step-by-step description of the process.

1. Primary Crushing

Run-of-mine marble boulders (up to 500 mm) are first reduced to 20–50 mm using a jaw crusher or hammer crusher. The crushed material is then conveyed to a surge bin for intermediate storage. For this stage, Zenith’s Hammer Mill (e.g., HM4008-75) can efficiently handle marble with a maximum feed size of 30 mm, producing discharge sizes of 0–3 mm at a capacity of 8–15 t/h. However, for larger primary crushing, a jaw crusher is usually paired with the grinding mill.

2. Grinding and Classification

The core of the milling line is the grinding mill. For marble powder intended for paint fillers, fineness requirements typically range from 200 mesh (74 μm) to 800 mesh (15 μm) or even finer. Two types of mills from Zenith are particularly suitable:

• MTW Trapezium Grinding Mill – Ideal for medium to fine powder (1.6–0.045 mm) with capacities up to 45 t/h. Its compact structure, long service life, and eco-friendly design make it a popular choice for marble processing in Bangladesh.
• LUM Ultrafine Vertical Mill – Designed for ultra-fine powder production (5–30 μm D97) with capacities up to 15 t/h. The LUM series integrates grinding, drying, classifying, and transport, occupying minimal floor space while delivering high end-fines content.

After grinding, the material is classified by a high-efficiency separator. Oversized particles are returned to the grinding zone for further size reduction, while qualified fine powder is collected by a bag filter or cyclone collector.

Recommended Products for Bangladesh Paint Fillers

Based on extensive experience in calcium carbonate processing, we recommend two flagship products that perfectly balance performance, energy consumption, and final product quality:

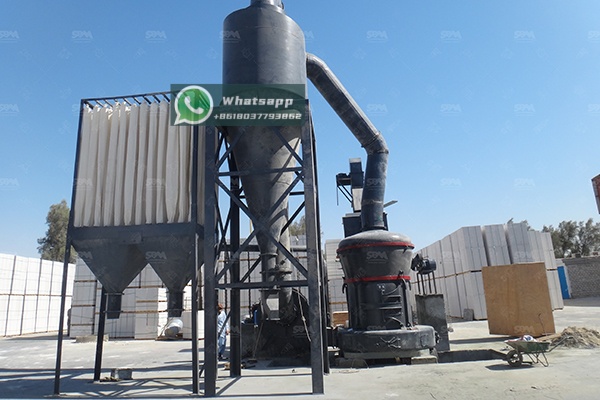

MTW Trapezium Grinding Mill

The MTW series (models MTW110, MTW138Z, MTW175G, MTW215G) is engineered for high-efficiency grinding of marble and other non-metallic minerals. Key advantages for Bangladeshi paint filler producers:

• Adjustable fineness from 1.6 mm down to 0.038 mm (400 mesh) – covers most filler requirements
• Capacities from 3 t/h to 45 t/h – scalable for small workshops to large factories
• Integrated classifier ensures uniform particle size distribution, critical for paint rheology
• Patented internal structure reduces vibration and noise, complying with local environmental norms

For a typical medium-sized paint filler plant in Bangladesh, the MTW138Z (max feed 35 mm, capacity 6–17 t/h, motor 90 kW) offers an excellent balance of investment and output.

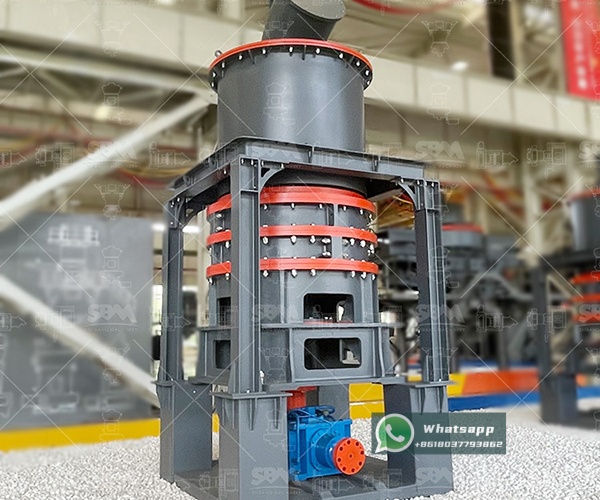

LUM Ultrafine Vertical Mill

When the market demands high-value ultra-fine marble powder (e.g., 800–2500 mesh for premium paints), the LUM series is the optimal solution. Models such as LUM1525, LUM1632, and LUM1836 can produce powders with D97 between 5 and 30 μm. Benefits include:

• Low energy consumption per ton of product – up to 30% less than ball mills
• Small footprint – ideal for plants with limited space
• Automatic control system simplifies operation and maintenance
• High whiteness retention because of minimal metal contamination

For Bangladesh, the LUM1632 (main motor 280–315 kW, capacity 2.0–13.5 t/h, fineness 5–30 μm) is recommended for producing premium paint fillers.

Process Advantages of Zenith’s Marble Milling Line

Choosing Shanghai Zenith as your equipment partner brings several operational benefits:

• High Efficiency: The combination of a pre-classifier and optimized grinding roller pressure ensures that energy is used effectively, reducing electricity costs by 15–25% compared to conventional Raymond mills.
• Product Consistency: Closed-loop classification guarantees that the final powder meets strict particle size specifications, essential for paint formulation.
• Low Maintenance: Wear parts are made of high-chrome alloy, extending service life. The MTW and LUM mills feature automatic lubrication systems that reduce downtime.
• Environmental Compliance: The entire line is equipped with pulse bag dust collectors and noise dampeners, satisfying Bangladesh’s evolving environmental regulations.
• Turnkey Solutions: Zenith provides complete engineering, from site survey to installation and commissioning, along with spare parts support through local distributors in Bangladesh.

Case Study: Typical 10 t/h Marble Filler Plant

To illustrate, a paint manufacturer in Dhaka recently set up a marble milling line using a Zenith MTW138Z mill. The plant processes marble feed of 10–30 mm to produce 400 mesh (38 μm) powder at 8 t/h. The complete system includes:

• Hopper + vibrating feeder
• Hammer crusher (HM4008-75) for secondary crushing
• Bucket elevator and screw conveyor
• MTW138Z grinding mill with built-in classifier
• Bag filter + induced draft fan
• Control panel and electrical system

The result: consistent whiteness of 94%, moisture below 0.3%, and energy consumption of only 28 kWh per ton. The customer reported a payback period of less than 18 months thanks to lower operational costs and premium product pricing.

Conclusion

Marble milling for paint fillers in Bangladesh presents a lucrative opportunity, but success depends on selecting the right grinding technology. Shanghai Zenith’s MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill have proven track records in calcium carbonate processing worldwide. With versatile capacities, precise fineness control, and robust after-sales service, these machines empower Bangladeshi producers to compete in both domestic and export markets. Whether you need standard 200-mesh filler or ultra-fine 1250-mesh grades, Zenith’s marble milling line delivers reliability and profitability. Contact us today to customize your solution.
