Granite grinding mill for Saudi Arabia stone plants

Introduction: Saudi Arabia’s Growing Stone Industry

Saudi Arabia has emerged as a major hub for the natural stone industry, driven by massive infrastructure projects under Vision 2030. The country is rich in granite deposits, particularly in regions such as the Arabian Shield, where high-quality granites with excellent durability and aesthetic appeal are quarried. Stone plants across the kingdom process these raw blocks into slabs, tiles, and aggregates for construction, cladding, and decorative uses. A critical step in the value chain is the grinding and milling of granite scraps, dust, and smaller fractions into fine powders that can be utilized in artificial stone, ceramics, fillers, and even ultra-fine applications like microcement or industrial coatings. Selecting the right grinding mill is therefore paramount for efficiency, product quality, and profitability.

Granite is an extremely hard, abrasive, and silica-rich igneous rock. It typically has a Mohs hardness of 6-7 and contains significant quartz, feldspar, and mica. Conventional crushers can reduce granite to a certain size, but for fine and ultra-fine powder production, specialized grinding equipment is required. The choice depends on the desired final fineness, capacity, energy consumption, and maintenance requirements. Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, offers a comprehensive range of mills specifically engineered to handle tough materials like granite. With decades of innovation and thousands of installations worldwide, Zenith’s solutions are well-suited for Saudi Arabia’s demanding stone plants.

This article provides an in-depth analysis of granite grinding requirements in Saudi Arabia and presents the most suitable Zenith mill models, backed by technical parameters and on-site case references.

The Challenges of Grinding Granite in Saudi Arabia

Before diving into equipment selection, it is important to understand the specific challenges faced by Saudi stone plants:

• High abrasiveness: Granite causes rapid wear on grinding components. Mills must have wear-resistant liners, grinding rollers, and rings made of high-chrome alloy or ceramic inserts.
• Moisture content: While granite is generally dry, quarry fines may contain some moisture from washing. Mills with integrated drying capability (e.g., vertical roller mills) can handle slight moisture without pre-drying.
• Capacity requirements: Large stone plants generate significant quantities of waste material (up to 30% of the block). Efficient milling with high throughput is essential to turn waste into profit.
• Fineness flexibility: Different end‑uses require different mesh sizes. For example, roofing granules may need 16-30 mesh, while filler for artificial stone often requires 200-400 mesh, and ultra-fine powders for coatings can go down to 1250 mesh (D97 10 microns).
• Energy costs: Saudi Arabia has relatively low electricity tariffs, but grinding is energy-intensive. Energy-efficient mills reduce operating expenses.

Zenith’s product portfolio addresses all these points. The company’s mills are known for their compact footprint, advanced powder classification, and intelligent automation, which are beneficial for stone plants seeking to modernize.

Recommended Grinding Mills for Saudi Granite Plants

Based on the typical feed sizes, target fineness, and capacity requirements of Saudi stone plants, two Zenith models stand out as ideal choices:

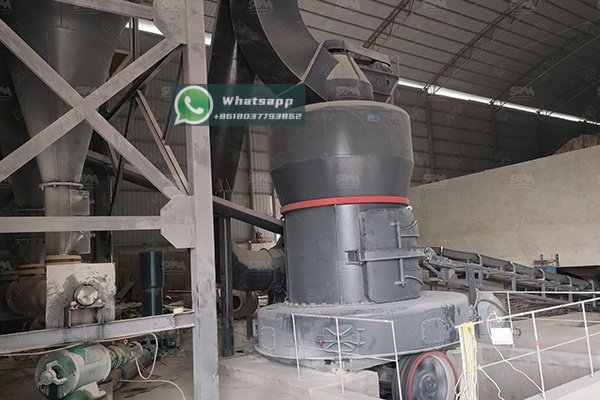

1. MTW Trapezium Grinding Mill

The MTW series is a patented trapezium grinding mill that excels in processing medium-hard to hard materials such as granite. Its innovative design uses a bevel gear transmission and a curved air duct for higher throughput and lower energy consumption. The grinding rollers and ring are forged from special alloy steel, ensuring long service life even when grinding abrasive granite. Key advantages include:

• Compact structure that saves floor space
• High‑efficiency centrifugal powder classifier producing a final fineness of 1.6 mm down to 0.038 mm (400 mesh)
• Adjustable speed and louver ring for precise particle size control
• Environmentally friendly design with dust‑tight sealing and low noise

The following table shows relevant MTW models suitable for typical granite grinding in stone plants (feed size ≤50 mm, final product fineness 0.045-0.6 mm):

For a medium‑sized stone plant producing 10-20 tons per hour of fine granite powder, the MTW138Z or MTW175G would be an excellent investment. They deliver consistent product quality and have proven performance in hard rock applications across the Middle East.

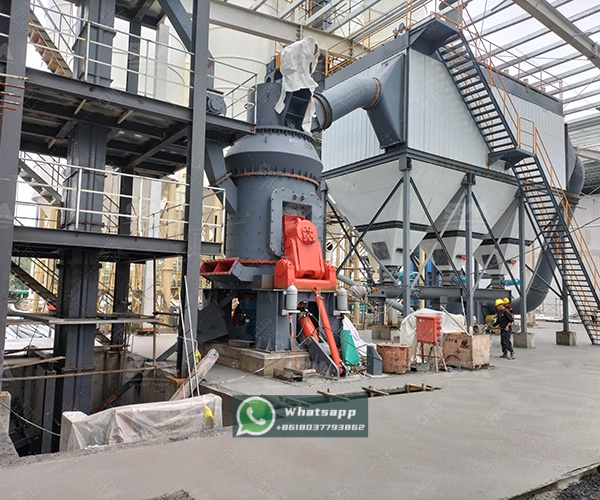

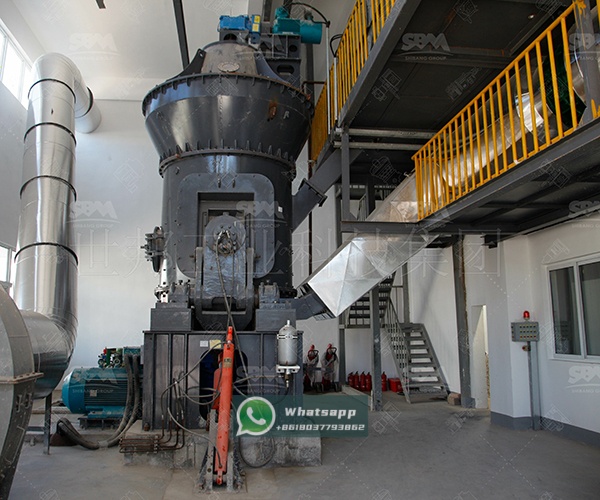

2. LM Vertical Grinding Mill

When the target is ultra‑fine powder (e.g., 325-600 mesh for high‑grade filler) or when integrated drying is needed, the LM Vertical Grinding Mill is the superior choice. This mill combines crushing, grinding, drying, and classifying in one unit, drastically simplifying the process flow. Its vertical roller design applies controlled pressure to the material bed, achieving high efficiency with lower vibration and noise. For granite grinding, the LM series offers the following benefits:

• High grinding efficiency due to the unique grinding roller shape and hydraulic tensioning system
• Wide fineness range: from 170 μm to 40 μm (80-400 mesh) in standard models, and up to 600 mesh in the fine‑powder series (LMX‑GX)
• Built-in hot air system for drying surface moisture up to 15%
• Low power consumption – typically 30-50% less than ball mills for the same fineness
• Small footprint and easy installation

For granite plants that require both fine and ultra‑fine outputs, the LM130X-GX vertical fine‑powder mill (325-600 mesh, capacity 4-12 t/h) is an outstanding option. The following vertical mill models are applicable:

Both the MTW and LM series are manufactured by Shanghai Zenith Machinery, a company with a strong track record in the Middle East. Spare parts availability and after‑sales service in Saudi Arabia are supported by regional distributors and direct technical support from the factory.

Case Study: Successful Granite Grinding in the Middle East

Zenith has supplied numerous grinding mills to stone plants in the Gulf region. For instance, a large granite processing facility in Dammam installed an MTW175G mill to grind their crushed granite screenings (0-10 mm) into 200-mesh powder used for artificial stone production. The mill operates 20 hours per day, producing 15 tons per hour with a fineness of D97 ≤ 75 μm (200 mesh). The customer reported a 30% reduction in specific energy consumption compared to their previous ball mill, along with lower wear part costs. Similarly, a plant in Jeddah uses an LM130X-GX vertical mill to produce 500-mesh granite powder for high-end architectural coatings. The integrated classifier ensures sharp particle size distribution, which is critical for the coating application.

Conclusion: Optimize Your Granite Grinding with Zenith

Saudi Arabia’s stone industry is poised for continued growth, and efficient milling is a key competitive differentiator. Whether your plant requires a robust trapezium mill for standard fine grinding or a sophisticated vertical roller mill for ultra-fine powders, Shanghai Zenith Machinery offers proven solutions. The MTW and LM series are designed to handle granite’s abrasiveness while delivering high capacity, low energy consumption, and precise fineness control. By investing in the right grinding equipment, stone plants can transform waste into valuable products, reduce operating costs, and improve sustainability.

Contact Zenith’s team for a tailored feasibility study and equipment recommendation based on your specific granite feed characteristics and target specifications.
