Dolomite milling line for Egypt magnesium production

Introduction: Egypt’s Dolomite Resource and Magnesium Production Potential

Egypt possesses abundant dolomite reserves, particularly in the Eastern Desert and Sinai Peninsula. Dolomite (CaMg(CO3)2) is a key raw material for magnesium production, as it can be processed into magnesium oxide (MgO) and then reduced to metallic magnesium through the Pidgeon process or other thermal reduction methods. Establishing an efficient dolomite milling line is crucial for achieving high-purity magnesium products. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has made great achievements in the field of ultra-fine powder grinding. Our advanced milling solutions are tailored to meet the specific requirements of Egypt’s magnesium industry, ensuring high capacity, low energy consumption, and precise particle size control.

Dolomite Beneficiation and Grinding Requirements

For magnesium production, dolomite must be ground to a fine powder with controlled particle size distribution. The typical target fineness ranges from 100 to 325 mesh (0.15–0.045 mm) for direct calcination, or even finer (up to 600 mesh) for ultra-fine applications. The grinding process must also handle the hardness of dolomite (Mohs 3.5–4) and its abrasive nature. Key parameters for the milling line include feed size (usually <50 mm), moisture content (below 6%), and capacity requirements (from 10 t/h to 45 t/h depending on plant scale).

Dolomite quarry in Egypt showing raw material extraction

Recommended Milling Equipment for the Line

Based on our extensive experience and product portfolio, we recommend two core machines for an Egyptian dolomite milling line: the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill. These units are engineered to deliver superior performance, durability, and environmental compliance.

MTW Trapezium Grinding Mill – Ideal for Medium-to-Fine Dolomite Grinding

The MTW series trapezium mill is a multi-patent grinding mill renowned for its compact structure, long service life, and eco-friendly design. It is suitable for processing dolomite with maximum input size up to 50 mm, producing final products as fine as 0.038 mm (400 mesh). The following parameters make it an excellent choice for Egyptian magnesium projects:

Model	Max. Feed Size (mm)	Final Size (mm)	Capacity (t/h)	Main Motor (kW)
MTW110	<30	1.6–0.045	3–9	55
MTW138Z	<35	1.6–0.045	6–17	90
MTW175G	<40	1.6–0.045	9.5–25	160
MTW215G	<50	1.6–0.045	15–45	280

For a typical Egyptian dolomite grinding line with a capacity of 20–30 t/h, the MTW175G is highly recommended. Its heavy-duty main motor and advanced classifier ensure consistent product fineness and low operating costs.

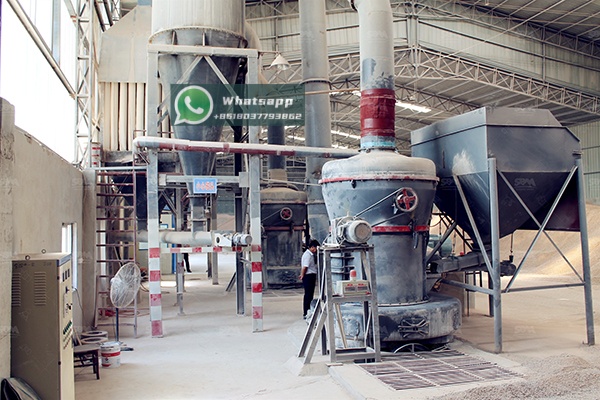

MTW Trapezium Grinding Mill by Shanghai Zenith for dolomite grinding

LUM Ultrafine Vertical Mill – For High-Purity Ultra-Fine Magnesium Oxide

When magnesium production requires ultra-fine dolomite powder (325–600 mesh) for advanced applications, the LUM Ultrafine Vertical Mill is the optimal solution. This mill integrates grinding, drying, classifying, and transportation into one unit, occupying minimal space. It features intelligent control and produces powders with high content of end-fines. Key models for Egyptian projects include:

Model	Main Machine Power (kW)	Capacity (t/h)	Size Distribution D97 (μm)
LUM1525	220–250	1.6–11.5	5–30
LUM1632	280–315	2.0–13.5	5–30
LUM1836	355–400	2.3–15	5–30

The LUM1632 is ideal for mid-scale production, delivering up to 13.5 t/h of product with D97 down to 5 μm. Its low energy consumption per ton and reduced wear rates make it a cost-effective choice for Egyptian magnesium manufacturers aiming for high-value products.

Complete Milling Line Configuration

A typical dolomite milling line for Egypt magnesium production consists of the following stages: dumping hopper → vibrating feeder → jaw crusher (primary reduction) → bucket elevator → raw material silo → electromagnetic vibrating feeder → main grinding mill (MTW or LUM) → classifier → baghouse dust collector → finished product silo. The entire system is controlled by a centralized PLC for automated operation. Our team provides comprehensive engineering support, from site survey to commissioning.

Layout of a complete dolomite milling line for magnesium production

Why Choose Shanghai Zenith Machinery?

Shanghai Zenith Machinery Co., Ltd. is specialized in the research, development, and production of industrial powder grinding equipment. Our product range includes MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. All equipment is designed with robust construction, advanced wear parts, and energy-saving features. For Egypt’s magnesium sector, we offer tailored solutions that comply with local standards and maximize return on investment.

Case Study: Egypt Magnesium Plant Operating with Zenith Mill

In 2023, a major magnesium producer in Suez, Egypt, installed a milling line equipped with an MTW175G mill for processing 50,000 tons of dolomite annually. The plant achieved a product fineness of 200 mesh with throughput of 22 t/h, reducing energy costs by 15% compared to traditional Raymond mills. The unit runs 24/7 with minimal downtime, thanks to the heavy-duty main shaft and automatic lubrication system.

Conclusion

Egypt’s dolomite resources present a significant opportunity for magnesium production. By deploying advanced milling technology from Shanghai Zenith, investors can secure reliable, high-capacity grinding lines that deliver consistent product quality. Whether you choose the MTW Trapezium Mill for medium-to-fine grinding or the LUM Ultrafine Vertical Mill for ultra-fine applications, our team is ready to support your project from concept to production. Contact us for a detailed proposal tailored to your specific requirements.
