Carbon Black Grinding Mill for Masterbatch Plants in Vietnam

Vietnam has become one of Southeast Asia’s fastest-growing markets for plastic masterbatch, driven by expanding packaging, automotive, construction, and consumer goods manufacturing. Carbon black is one of the most important pigments and functional fillers used in black masterbatch. Its fine particle size, high tinting strength, and UV protection properties make it indispensable, but these same characteristics also make carbon black difficult to handle, grind, and disperse. For masterbatch plants in Vietnam, selecting the right carbon black grinding mill is therefore critical to product quality, production efficiency, and environmental compliance.

Shanghai Zenith Machinery Co., Ltd. is an experienced Chinese manufacturer of ore grinding equipment and has achieved significant results in ultra-fine powder grinding. With a product range that includes the MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Hammer Mill, and Ball Mill, Zenith can support Vietnamese masterbatch producers with reliable, high-performance grinding solutions.

Why Carbon Black Grinding Matters in Masterbatch Production

Carbon black is not a simple pigment. It consists of primary particles that form aggregates and agglomerates. In masterbatch production, these agglomerates must be broken down and uniformly distributed in the polymer carrier. If the grinding process is inadequate, the final masterbatch may show poor dispersion, visible black specks, inconsistent color strength, and reduced mechanical properties. In contrast, a well-controlled carbon black grinding mill delivers a narrow particle size distribution, high tinting strength, and smooth dispersion in downstream extrusion, injection molding, and film blowing processes.

In Vietnam, masterbatch producers often process carbon black with a moisture content below 6% and require final fineness ranging from several hundred mesh to more than 2000 mesh, depending on the application. Fine black masterbatch for thin films and fibers requires particularly strict control of coarse particles. Therefore, the grinding mill must combine fine grinding capability, stable classification, and reliable dust collection.

Key Requirements for a Carbon Black Grinding Mill in Vietnam

Fineness and Dispersion

The mill should be able to produce a consistent final product, typically in the range of 325-2500 mesh for fine masterbatch grades. For high-end applications, ultra-fine grinding down to D97 of 5-30 μm may be required. The grinding system should minimize over-grinding and avoid contamination from wear parts.

Capacity and Continuous Operation

Masterbatch plants in Vietnam often run continuous shifts. The grinding mill should offer stable capacity from several hundred kilograms per hour to more than 20 tons per hour, with low downtime and easy maintenance. Quick replacement of wear parts and simple adjustment of fineness are important for daily production.

Dust Control and Environmental Compliance

Carbon black is a light, fine powder that can easily become airborne. The grinding system must be equipped with efficient pulse-jet dust collectors, sealed conveying, and negative-pressure operation to protect workers and meet local environmental standards. This is especially important in Vietnam, where industrial safety and environmental regulations are becoming stricter.

Energy Efficiency and Maintenance

Grinding carbon black can consume significant energy. A modern mill with an integrated classifier, optimized airflow, and intelligent control can reduce power consumption and improve product consistency. The machine should also be easy to clean between batches to prevent color contamination in masterbatch production.

Recommended Zenith Equipment for Vietnamese Masterbatch Plants

For carbon black processing in Vietnam, Shanghai Zenith recommends two products that offer an excellent balance of fineness, capacity, and operational reliability: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill.

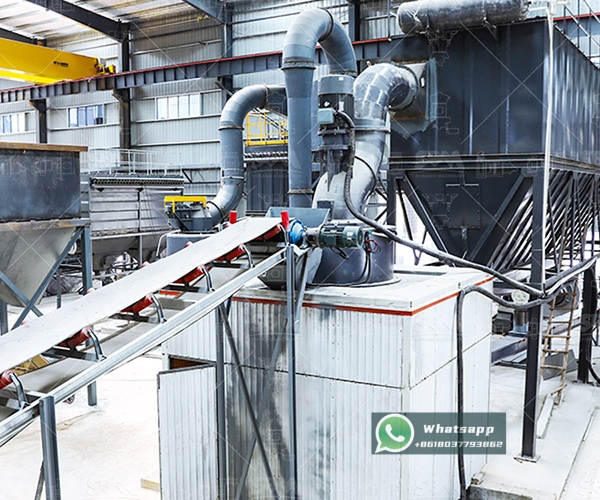

1. XZM Ultrafine Grinding Mill

The XZM Ultrafine Grinding Mill is widely used for superfine powder production. It is suitable for soft or medium-hard materials with moisture content below 6%, which makes it a practical choice for carbon black. The mill can achieve an output fineness of 325-2500 mesh and is available in models such as XZM221 and XZM268. The XZM221 has a working diameter of Φ800 mm, maximum feed size of ≤20 mm, output of 500-4500 kg/h, and main motor power of 75 kW. The larger XZM268 has a working diameter of Φ1680 mm, maximum feed size of ≤20 mm, output of 5000-25000 kg/h, and main motor power of 315 kW.

For Vietnamese masterbatch plants producing fine black masterbatch, the XZM mill offers high fineness, stable classification, and a compact footprint. It is particularly suitable for small to medium production lines or for dedicated fine-grade carbon black processing.

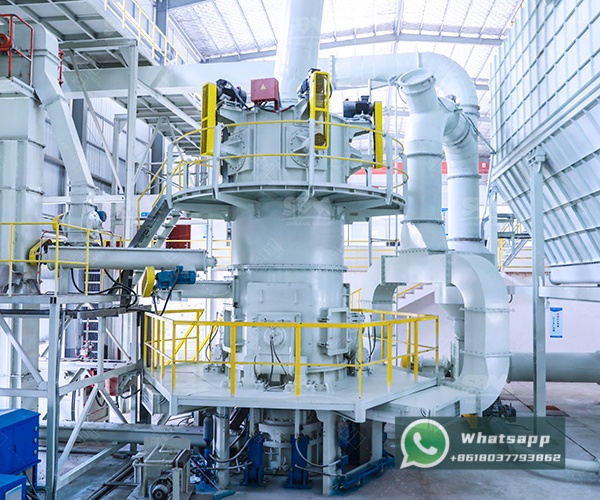

2. LUM Ultrafine Vertical Mill

The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and transportation in one compact machine. It is designed to produce a high content of end-fines and features intelligent control for easier maintenance. The size distribution D97 can be controlled in the range of 5-30 μm. Typical models include LUM1525 with main machine power of 220-250 kW and capacity of 1.6-11.5 t/h, LUM1632 with 280-315 kW and 2.0-13.5 t/h, and LUM1836 with 355-400 kW and 2.3-15 t/h.

For larger masterbatch plants or lines requiring high output and very fine carbon black, the LUM Ultrafine Vertical Mill is an excellent choice. Its vertical design saves floor space, reduces material handling, and supports continuous production with stable product quality.

Process Integration and Production Benefits

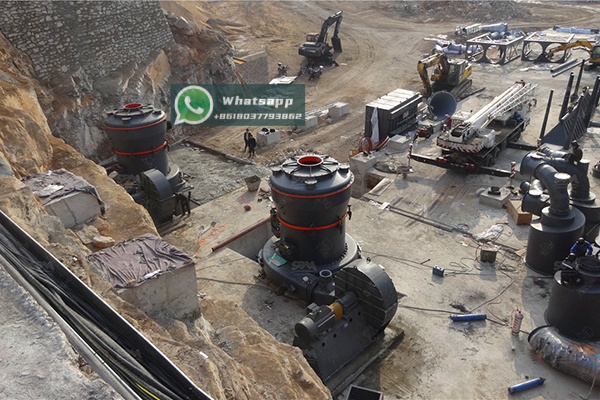

A carbon black grinding mill should not be selected in isolation. It must be integrated with feeding, conveying, dust collection, storage, and weighing systems. For masterbatch plants in Vietnam, a typical carbon black grinding circuit includes a hopper, vibration feeder, grinding mill, classifier, pulse-jet dust collector, screw conveyor, and storage silo. The system should be designed with explosion-proof considerations where required and with easy access for cleaning and maintenance.

Grinding Circuit Design

For fine grades, the XZM Ultrafine Grinding Mill can be configured with a high-efficiency classifier to ensure that coarse particles are returned for further grinding. For high-capacity production, the LUM Ultrafine Vertical Mill can reduce the number of auxiliary machines and simplify the process flow. In both cases, the grinding system should be operated under negative pressure to prevent dust emission.

Quality Control

Regular sampling and particle size analysis are essential. Masterbatch producers should monitor fineness, particle size distribution, moisture content, and contamination. Zenith can support customers with process layout, equipment selection, and technical training to help Vietnamese plants achieve consistent quality.

Why Choose Shanghai Zenith Machinery for Vietnam Masterbatch Projects

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development, and production of industrial powder grinding equipment. The company’s product portfolio covers a wide range of capacities and fineness levels, allowing Vietnamese masterbatch plants to select the most suitable solution for their specific raw materials and product requirements. Zenith equipment is known for robust construction, stable performance, and low maintenance requirements. With experience in ultra-fine powder grinding and a commitment to customer service, Zenith can provide reliable support for projects in Vietnam.

• Professional equipment selection and process design
• Wide range of grinding mills for different capacities and fineness targets
• Efficient dust collection and environmental protection
• Durable wear parts and easy maintenance
• Technical support for installation, commissioning, and operation

Conclusion

Carbon black is a critical raw material for black masterbatch, and its grinding quality directly affects the performance of the final product. For masterbatch plants in Vietnam, choosing the right grinding mill is a strategic decision. The XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill from Shanghai Zenith Machinery offer reliable solutions for fine and ultra-fine carbon black processing, with flexible capacities and consistent product quality. By integrating the correct grinding system with proper dust control and quality management, Vietnamese masterbatch producers can improve dispersion, reduce production costs, and strengthen their competitiveness in both domestic and export markets.
