Calcite milling line for Indonesia plastics industry

Introduction to Calcite in the Plastics Industry

Calcite (calcium carbonate) is one of the most widely used mineral fillers in the plastics industry, especially in Indonesia where the demand for cost-effective and high-performance plastic products continues to grow. As a functional filler, calcite improves stiffness, impact resistance, and dimensional stability of plastics while reducing production costs. In applications such as PVC pipes, profiles, films, and masterbatch, a fine and consistent particle size distribution is critical to ensure uniform dispersion and optimal mechanical properties. Therefore, selecting the right milling line for calcite processing is a strategic decision for Indonesian plastics manufacturers.

Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, has extensive experience in designing and supplying ultra-fine powder grinding solutions. Our technology has been successfully deployed in Indonesia, helping local producers achieve high-quality calcite powders with controlled fineness and high throughput. This article presents a comprehensive milling line for calcite tailored to the Indonesian plastics industry, highlighting key equipment, process flows, and product recommendations.

Process Overview of a Calcite Milling Line

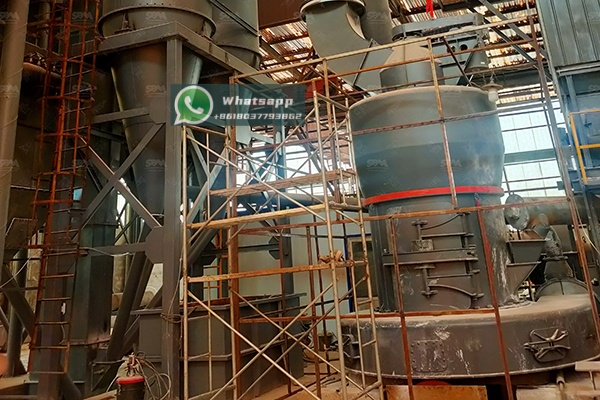

A typical calcite milling line consists of several stages: crushing, grinding, classifying, and collecting. The raw calcite ore (typically with a size of 100–300 mm) is first crushed by a jaw crusher or hammer crusher to below 20–50 mm. The crushed material is then fed into a grinding mill for fine and ultra-fine pulverization. After grinding, the powder is classified by a classifier to ensure the final product meets the required particle size (e.g., 800–2500 mesh for plastics). Oversized particles are returned to the mill for regrinding. The finished powder is collected by a bag filter or cyclone collector and packed.

The choice of grinding mill depends on the desired fineness, capacity, and energy efficiency. For the Indonesian plastics industry, which often requires powders with a fineness of D97 = 10–45 μm (325–1250 mesh), both roller mills and vertical mills are common solutions. Zenith offers a comprehensive range of mills suitable for this application.

Recommended Grinding Equipment for Calcite

Based on decades of experience in powder processing, Zenith has developed several mill models that excel in calcite grinding. Among them, the MTW Trapezium Grinding Mill and the LUM Ultrafine Vertical Mill are particularly well-suited for producing high-quality calcite fillers for plastics.

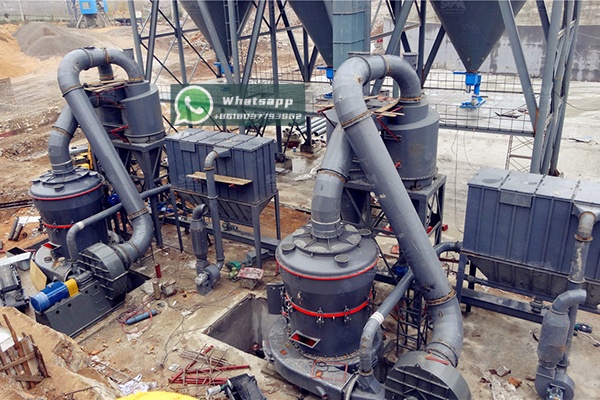

The MTW Trapezium Grinding Mill is a patented mill with a compact structure, long service life, and eco-friendly operation. It can handle feed sizes up to 50 mm and produce final powders as fine as 0.038 mm (400 mesh). With multiple patent innovations such as bevel gear integral transmission, curved shovel, and independent powder collector, the MTW mill ensures high capacity and low energy consumption. For a typical calcite milling line in Indonesia, a model like MTW175G can achieve a capacity of 9.5–25 t/h at a fineness of 1.6–0.045 mm, making it ideal for medium to large-scale production.

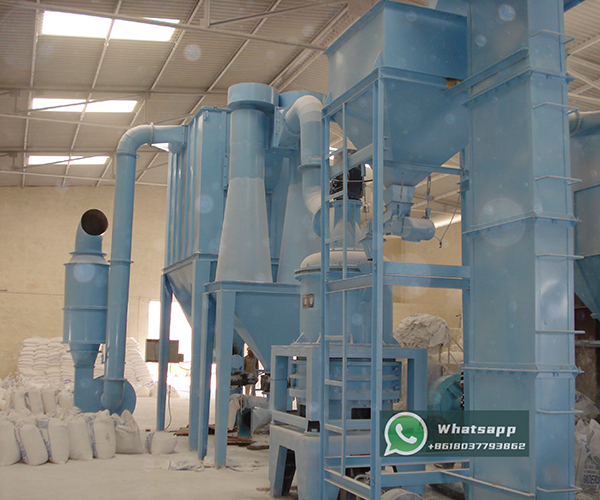

For applications requiring ultra-fine powder (e.g., 1250–2500 mesh for masterbatch or high-gloss plastics), the LUM Ultrafine Vertical Mill is the top choice. It integrates grinding, drying, classifying, and conveying into one unit, occupying minimal floor space. The LUM mill uses a roller and grinding table mechanism with a dynamic classifier to produce powders with a tight particle size distribution. Model LUM1632, for example, has a main motor power of 280–315 kW and a capacity of 2.0–13.5 t/h for a size distribution D97 of 5–30 μm. This mill is especially popular among Indonesian compounders who require consistent quality and high whiteness.

Both mills are manufactured with high-chromium wear parts and intelligent control systems, ensuring stable operation and easy maintenance. Zenith also provides complete turnkey solutions including feeders, conveyors, dust collectors, and packing machines.

Product Recommendation: MTW175G & LUM1632

For Indonesian plastics producers, we recommend the MTW175G Trapezium Grinding Mill if the target fineness is between 80–400 mesh (typical for PVC pipe and profile fillers). Its robust design and capacity of up to 25 t/h can easily support continuous production. For ultra-fine applications, the LUM1632 Ultrafine Vertical Mill is the ideal choice, producing powders with D97 down to 5 μm, which is perfect for high-end masterbatch and thin-film applications.

To illustrate a typical line configuration, consider the following parameters:

• Raw material: Calcite with Mohs hardness 3, feed size < 40 mm
• Target fineness: D97 = 45 μm (325 mesh) for MTW175G or D97 = 10 μm (1250 mesh) for LUM1632
• Capacity: 10–15 t/h (adjustable via classifier speed)
• Moisture content: < 3% (drying not required)

With proper pre-crushing using a hammer mill (such as Zenith’s HM4015-132), the whole line can be optimized for energy efficiency. The hammer mill reduces run-of-mine calcite to < 20 mm before feeding the main grinder.

Key Advantages of Zenith Calcite Milling Solutions

Zenith’s equipment has been widely adopted in Indonesia due to the following advantages:

• High Efficiency: Advanced grinding principles reduce energy consumption by 30–50% compared to traditional ball mills.
• Stable Product Quality: Dynamic classifiers ensure narrow particle size distribution, meeting strict plastic industry standards.
• Easy Maintenance: All major wear parts are designed for quick replacement, minimizing downtime.
• Environmental Protection: Pulse bag filters and noise reduction technologies comply with Indonesian environmental regulations.
• Local Support: Zenith has a service network in Indonesia providing spare parts and technical assistance.

Conclusion

The Indonesian plastics industry is rapidly evolving, with increasing demand for high-quality calcite fillers. A well-designed milling line using advanced grinding mills from Shanghai Zenith Machinery can significantly enhance product quality and production efficiency. Whether you need a standard 325-mesh powder for PVC or an ultra-fine 1250-mesh for masterbatch, the MTW Trapezium Grinding Mill and LUM Ultrafine Vertical Mill offer proven performance. Contact Zenith to discuss your specific requirements and receive a customized solution for your calcite milling line.
