Bentonite milling line for Zambia drilling fluids

Optimizing Drilling Fluid Performance in Zambia with Advanced Bentonite Grinding Solutions

Zambia, a key player in Africa’s mining sector, has seen a steady increase in exploration and drilling activities, particularly in copper and cobalt extraction. The efficiency of drilling operations heavily relies on the quality of drilling fluids, where bentonite serves as a primary rheological additive. Bentonite’s ability to provide viscosity, fluid loss control, and borehole stability makes it indispensable for water-based mud systems. However, achieving the precise particle size distribution required for optimal drilling fluid performance demands advanced milling technology. This article explores the technical requirements for bentonite processing in Zambia’s drilling industry and presents state-of-the-art grinding solutions from Shanghai Zenith Machinery Co., Ltd., a leading manufacturer of ore grinding equipment in China.

The Role of Bentonite in Drilling Fluids

Bentonite, a clay mineral predominantly composed of montmorillonite, swells when hydrated and forms a thixotropic gel. In drilling fluids, it performs several critical functions: it increases viscosity to suspend cuttings, reduces filtration loss by forming a low-permeability filter cake on the borehole wall, and provides lubrication to the drill string. For these properties to be effective, bentonite must be ground to a fine, consistent particle size—typically 200–325 mesh (74–44 microns) or even finer for specialized applications. In Zambia, where drilling conditions can vary from soft sedimentary formations to hard rock, a reliable bentonite milling line is essential to ensure consistent mud quality and reduce operational downtime.

Technical Challenges in Bentonite Processing

Raw bentonite often contains impurities such as quartz, feldspar, and calcite, which must be removed or reduced through beneficiation before grinding. The moisture content also needs careful control, as excessive moisture can cause clogging in mills. Furthermore, the grinding process must generate minimal heat to avoid damaging the clay’s crystalline structure and swelling capacity. Therefore, selecting the right milling equipment is crucial for achieving high throughput, fine fineness, and energy efficiency—all while maintaining the bentonite’s inherent rheological properties.

Shanghai Zenith’s Milling Solutions for Bentonite

Shanghai Zenith Machinery Co., Ltd. has over 30 years of experience in industrial powder grinding and offers a comprehensive range of mills suitable for bentonite processing. For Zambia’s drilling fluids market, two standout products are the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both are engineered to handle the demanding requirements of bentonite milling, delivering high capacity, precise classification, and low operating costs.

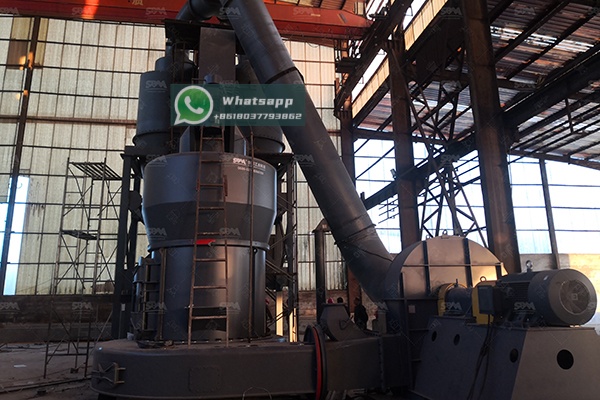

Recommended Product: MTW138Z Trapezium Grinding Mill

The MTW series is a proven workhorse for bentonite grinding, featuring multiple patented technologies that ensure compact structure, long service life, and environmental friendliness. The model MTW138Z is particularly well-suited for mid-scale production in Zambia. With a maximum feed size of 35 mm and a final product fineness adjustable from 1.6 mm down to 0.045 mm (325 mesh), it can produce the fine bentonite powder required for drilling fluids. Its capacity ranges from 6 to 17 tons per hour, powered by a 90 kW main motor and a 110 kW fan motor. The trapezoid-shaped grinding roller and ring increase grinding efficiency by 30% compared to traditional Raymond mills, while the innovative air circulation system reduces energy consumption. Additionally, the MTW mill’s integrated classifier ensures a narrow particle size distribution, directly benefiting the viscosity and filtration control of the drilling mud.

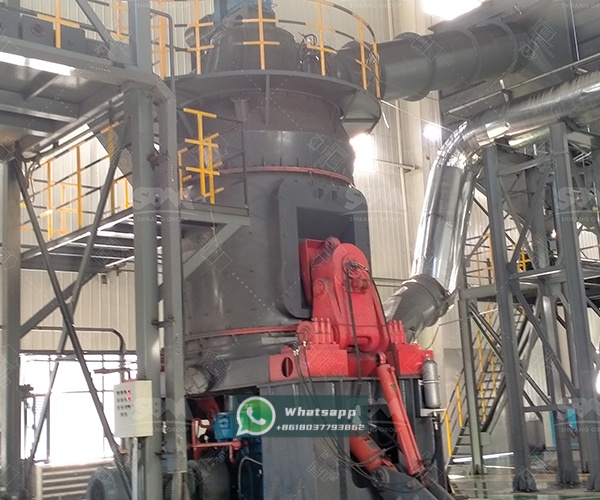

Recommended Product: LM130K Vertical Grinding Mill

For larger-scale bentonite operations, the LM130K Vertical Grinding Mill offers unparalleled integration and efficiency. This mill combines crushing, grinding, drying, classifying, and material conveying into a single unit, dramatically reducing the plant’s footprint. The LM130K has a grinding table diameter of 1300 mm and can handle feed sizes up to 38 mm. Its output fineness ranges from 170 to 40 microns (80–400 mesh), perfectly matching the requirements for high-quality drilling fluid bentonite. The capacity is 10–28 tons per hour with a main motor power of 200 kW. The vertical mill’s roller and grinding disc design minimizes vibration and noise, while the built-in classifier ensures a uniform product. Moreover, the LM series can process materials with up to 15% moisture, which is advantageous for Zambian bentonite that may have variable moisture content. The vertical mill also excels in energy savings—consuming 40–50% less power than ball mills for the same fineness—making it a cost-effective choice for long-term operations.

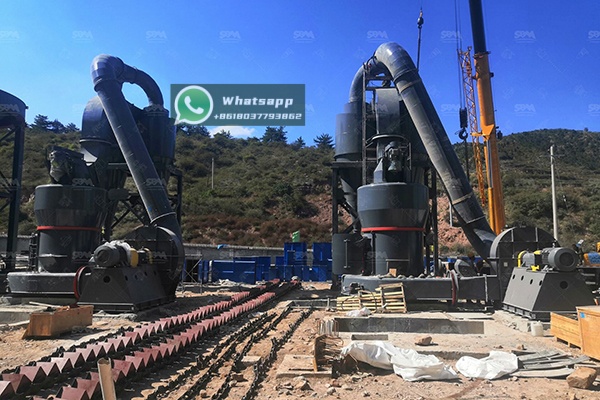

Complete Bentonite Milling Line Configuration for Zambia

A typical bentonite milling line from Shanghai Zenith includes a jaw crusher for primary size reduction, a bucket elevator, a vibrating feeder, the main grinding mill (MTW or LM series), a dust collector, a bag filter, a fan, and a control cabinet. The process begins with raw bentonite being crushed to below 30–40 mm, then conveyed to the mill for fine grinding. The classified product is collected by a cyclone collector and bag filter, ensuring a clean, dust-free operation. For Zambia’s drilling fluid applications, the final powder is typically packed in 25–50 kg bags or stored in silos. The entire line can be customized based on the client’s capacity requirements—from small workshops producing 5 tons per hour to large industrial plants exceeding 50 tons per hour.

Why Choose Shanghai Zenith for Your Bentonite Milling Project in Zambia?

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with extensive experience in the ultrafine powder grinding field. The company’s specialized research, development, and production of industrial grinding mills guarantee reliable performance and after-sales support. For Zambia’s drilling fluid industry, the MTW Trapezium Mill and LM Vertical Mill offer distinct advantages: precise particle size control, high throughput, low energy consumption, and robust construction suitable for Africa’s challenging operating environments. Whether you need a single mill or a turnkey bentonite processing plant, Zenith’s team can provide tailored solutions, including feasibility studies, equipment selection, installation supervision, and training.

Conclusion

As Zambia continues to expand its mineral exploration and extraction activities, the demand for high-quality drilling fluids will only grow. Investing in a reliable bentonite milling line equipped with advanced grinding technology from Shanghai Zenith ensures that drilling operators can maintain consistent mud properties, reduce non-productive time, and lower overall well costs. The MTW138Z Trapezium Grinding Mill and the LM130K Vertical Grinding Mill are both excellent choices, each offering distinct benefits depending on the scale and specific process requirements. With Zenith’s proven track record and commitment to innovation, Zambian drilling fluid producers can achieve world-class bentonite quality that meets international API standards.

For more information on how Shanghai Zenith can help you design the optimal bentonite milling line for Zambia’s drilling fluids, please refer to our product catalogs and technical datasheets. Our engineers are ready to support your project from concept to commissioning.
