Barite milling line for Pakistan oil service companies

Introduction

Pakistan’s oil and gas industry is a cornerstone of the national economy, with drilling operations concentrated in regions such as Sindh, Balochistan, and Punjab. For oil service companies, the quality of drilling fluids directly impacts operational efficiency, wellbore stability, and overall project costs. Barite (barium sulfate, BaSO₄) is the most widely used weighting agent in water-based and oil-based drilling muds, thanks to its high specific gravity (typically 4.2–4.5 g/cm³), chemical inertness, and low cost. However, raw barite ore must be processed into a fine powder (usually 200 mesh or 325 mesh, with a residue of less than 3% on a 200-mesh sieve) to meet API 13A specifications. This article provides a comprehensive guide to designing a barite milling line tailored for Pakistan oil service companies, highlighting key equipment choices and operational benefits.

Why Barite Grinding Matters for Pakistan’s Drilling Operations

In Pakistan, drilling depths often exceed 4,000 meters, demanding high-density mud to counter formation pressures. Inadequate barite quality or improper particle size distribution can lead to settling, poor rheology, and even blowout risks. A dedicated barite milling line ensures consistent product fineness, stable density control, and cost-effective production. With Shanghai Zenith Machinery Co., Ltd., a leading Chinese manufacturer of ore grinding equipment, oil service companies can achieve precise specifications while reducing energy consumption and maintenance downtime.

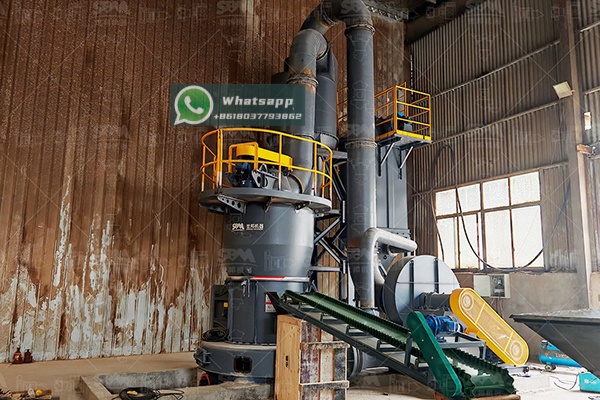

Core Components of a Barite Milling Line

A complete barite milling line typically includes: primary crusher, feeding conveyor, grinding mill, classifier, dust collector, storage silo, and bagging system. The grinding mill is the heart of the line, and its selection depends on capacity requirements, feed size, and target fineness. For Pakistan oil service companies, two types of mills from Shanghai Zenith stand out: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both offer robust performance in barite processing.

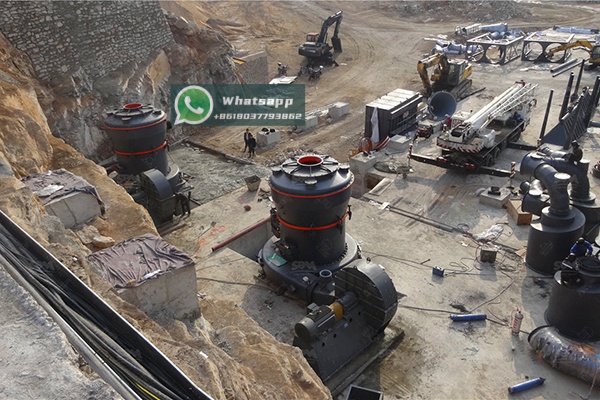

Recommended Product: MTW Trapezium Grinding Mill

The MTW series is a multi-patented mill known for its compact structure, long service life, and eco-friendly operation. It can handle barite ore with a maximum feed size of 50 mm and produce final products as fine as 0.038 mm (400 mesh). Its trapezoidal grinding ring and roller design improve grinding efficiency by 20–30% compared to traditional Raymond mills. For mid-scale operations in Pakistan (e.g., 10–20 tons per hour), the MTW138Z or MTW175G models are ideal choices.

These parameters demonstrate the flexibility of the MTW mill to match typical barite milling requirements of Pakistan oil service companies. The dust collector system ensures compliance with local environmental regulations, a critical factor in Pakistan’s increasingly stringent industrial standards.

Recommended Product: LM Vertical Grinding Mill

For larger capacity or when space is limited, the LM Vertical Grinding Mill offers a unique integrated solution that combines crushing, grinding, drying, classifying, and conveying in one unit. Its floor area is only 50% of a ball mill system of the same capacity. The LM series achieves a product fineness of 170–40 μm (80–400 mesh) and is well-suited for barite with moisture content up to 6%. The LM130K and LM190K models are popular for barite lines in Pakistan, with capacities ranging from 10 to 68 t/h.

The LM mill’s intelligent control system allows automatic adjustment of grinding pressure and classifier speed, ensuring consistent product quality even when barite ore properties vary. Its low noise and vibration levels make it suitable for installations near residential areas or within existing oil service yards.

Case Study: MTW vs. LM for Pakistan Barite Lines

An oil service company in Karachi recently installed an MTW175G mill to produce 12 t/h of API-grade barite powder. The mill operated at 85% load, achieving a fineness of D97 ≤ 45 μm with power consumption of 18 kWh/t. In contrast, a competitor using a ball mill required 29 kWh/t for the same output. The MTW mill’s wear parts (roller and ring) lasted over 6,000 hours, reducing downtime by 40%. For a larger operation in Punjab, an LM190K vertical mill was chosen to supply multiple drilling sites. The line’s compact footprint saved 200 m² of land, and the integrated drying capability eliminated the need for a separate dryer, even when processing barite with 5% moisture.

Advantages of Shanghai Zenith Barite Milling Solutions

Shanghai Zenith Machinery Co., Ltd. has more than 30 years of experience in ore grinding, with thousands of installations worldwide. For Pakistan oil service companies, the key benefits include:

• High Efficiency: The MTW trapezium design and LM vertical roller design reduce energy consumption by 30–50% compared to traditional mills.
• Excellent Fineness Control: Both mills can produce powder from 80 mesh to 600 mesh, meeting API 13A standard (residue ≤ 3% on a 200-mesh sieve).
• Easy Maintenance: Quick-access doors, replaceable wear parts, and automatic lubrication systems minimize downtime.
• Environmental Compliance: The pulse bag dust collector ensures emission levels below 20 mg/Nm³, aligning with Pakistan’s National Environmental Quality Standards (NEQS).
• Customizable Layout: Zenith’s engineers design the entire milling line based on site conditions, from crushing to bagging.

Conclusion

As Pakistan’s oil and gas exploration continues to expand, the demand for high-quality barite powder will rise accordingly. By investing in a reliable milling line equipped with either the MTW Trapezium Grinding Mill or the LM Vertical Grinding Mill, oil service companies can secure a consistent supply of premium drilling fluid additives. Shanghai Zenith Machinery Co., Ltd. offers complete solutions—from equipment supply to after-sales support—ensuring that your barite milling operation runs smoothly, efficiently, and profitably. Contact Zenith today for a tailored quotation and project proposal.
