Quartz mill for ultra fine silica powder in Saudi Arabia

Introduction: The Growing Demand for Ultra Fine Silica Powder in Saudi Arabia

Saudi Arabia is accelerating industrial diversification under Vision 2030, and industrial minerals are becoming an increasingly important part of the national economy. High-purity quartz and silica sand are among the most versatile raw materials in the Kingdom, supporting glass, ceramics, sanitaryware, paints and coatings, plastics, rubber, foundry, water filtration, oil and gas, and solar-related industries. As downstream manufacturers demand finer particle size, higher purity, and more consistent quality, the production of ultra fine silica powder has become a strategic opportunity for Saudi mineral processors.

Turning quartz lumps or silica sand into high-value ultra fine powder is not simply a matter of choosing any grinding mill. Quartz is hard, abrasive, and sensitive to contamination, while ultra fine products require tightly controlled particle size distribution, efficient classification, reliable dust collection, and stable continuous operation. Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. With a product portfolio that includes MTW Trapezium Grinding Mill, MTM Medium-Speed Grinding Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, Raymond Mill, Hammer Mill, and Ball Mill, Shanghai Zenith can support Saudi projects from process design to equipment selection, installation, and commissioning.

Why Ultra Fine Silica Powder Requires Specialized Quartz Milling

Ultra fine silica powder is generally defined by a controlled top size and a narrow particle size distribution. Depending on the application, producers may target 325-2500 mesh or a D97 range of approximately 5-30 μm. These specifications are difficult to achieve with conventional coarse grinding alone. The mill must combine effective grinding force, efficient air classification, and reliable product collection. Otherwise, the final powder may contain excessive coarse particles, suffer from inconsistent fineness, or lose yield through over-grinding.

Quartz presents additional challenges because of its high hardness and abrasive nature. Grinding elements, liners, and classification components must be selected carefully to reduce wear and maintain product quality. Contamination control is also important for applications such as electronic fillers, high-end coatings, and specialty ceramics. In Saudi Arabia, dry processing is often preferred because water resources are limited and many downstream users require dry powder. A closed-loop dry grinding system with negative pressure, high-efficiency bag filters, and reliable air classification is therefore a practical configuration for many silica powder plants.

Key Milling Challenges in Saudi Arabian Conditions

Saudi Arabia’s hot climate, dusty environment, and remote project locations place additional demands on grinding equipment. Motors, bearings, and lubrication systems must be selected for high ambient temperatures. Dust control must be robust enough to protect workers and the environment while minimizing product loss. Energy efficiency is also critical because grinding is a power-intensive stage. Plant layout should reduce material handling, avoid unnecessary conveyors, and allow safe access for maintenance.

For quartz ultra fine powder production, a successful system should integrate feeding, grinding, classification, dust collection, storage, and packing in a controlled flowsheet. The grinding mill should operate under stable negative pressure to prevent dust emission. Wear parts should be easy to inspect and replace, and the control system should provide clear monitoring of motor load, air flow, product fineness, and system pressure. These factors are especially important for Saudi operators who need high availability and low unplanned downtime.

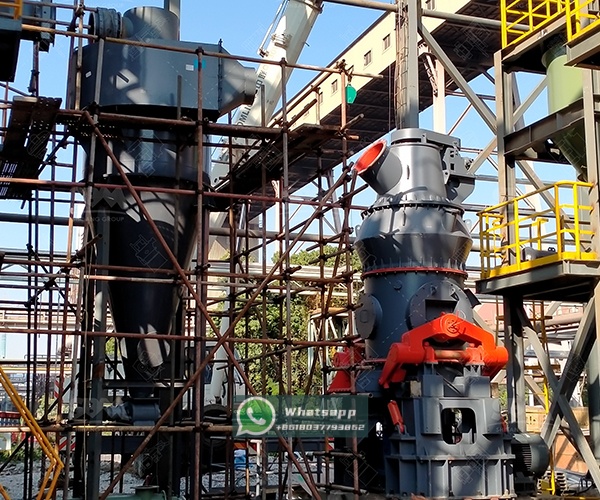

Recommended Solution 1: LUM Ultrafine Vertical Mill

For Saudi projects targeting high-quality ultra fine silica powder with integrated grinding, drying, classifying, and transportation, Shanghai Zenith recommends the LUM Ultrafine Vertical Mill. This equipment is designed to produce products with a high content of end-fines while occupying minimal space. It features intelligent control for easier maintenance and stable operation, making it suitable for modern dry-process silica powder plants.

The LUM series offers several models for different capacity requirements. The LUM1525 uses a 220-250 kW main machine and delivers 1.6-11.5 t/h with D97 size distribution of 5-30 μm. The LUM1632 uses 280-315 kW and delivers 2.0-13.5 t/h. The LUM1836 uses 355-400 kW and delivers 2.3-15 t/h. For a Saudi quartz processing line, the LUM mill can be positioned after crushing and screening to produce consistent ultra fine silica powder for coatings, plastics, rubber, foundry, and specialty ceramic applications. Its vertical design and integrated classification help reduce auxiliary equipment and plant footprint, which is advantageous in industrial cities where land and infrastructure planning are important.

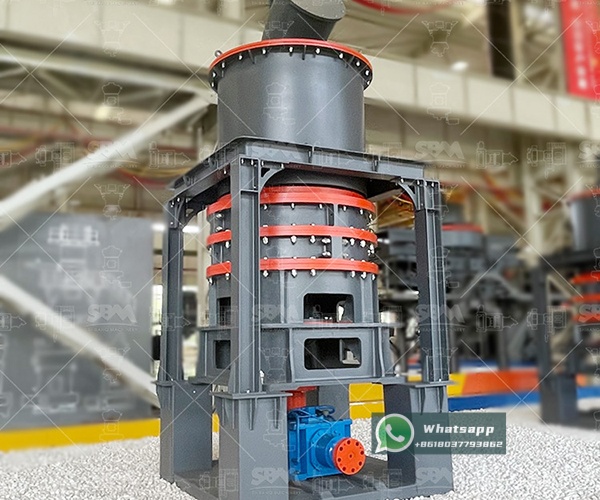

Recommended Solution 2: XZM Ultrafine Grinding Mill

For customers requiring flexible superfine production and a wide fineness range, Shanghai Zenith also recommends the XZM Ultrafine Grinding Mill. The XZM is widely used for superfine powder production and is suitable for grinding soft or medium-hard materials with moisture content below 6%. It can achieve an output fineness of 325-2500 mesh, providing excellent flexibility for silica powder products used in paints, coatings, plastics, sealants, ceramics, and other value-added applications.

The XZM221 has a working diameter of Φ800 mm, accepts feed size up to 20 mm, produces 325-2500 mesh powder, and offers an output of 500-4500 kg/h with a 75 kW main motor. The larger XZM268 has a working diameter of Φ1680 mm, also accepts feed up to 20 mm, produces 325-2500 mesh powder, and delivers 5000-25000 kg/h with a 315 kW main motor. The XZM is an attractive option for Saudi producers who need multiple product grades or who plan to enter the ultrafine silica market with a relatively compact and flexible grinding system.

Process Configuration for a Quartz Ultra Fine Powder Plant

A typical quartz ultra fine silica powder plant includes primary crushing, screening, feed storage, controlled feeding, grinding, air classification, dust collection, product storage, and packing. If the raw quartz is already reduced to below 30 mm or 50 mm, a Hammer Mill such as HM4008-75 or HM4015-132 can be considered for coarse preparation, depending on the required feed size and capacity. The grinding stage should then be matched to the target fineness, moisture, and production rate. For integrated ultrafine vertical grinding, the LUM series is recommended. For flexible 325-2500 mesh production, the XZM series is recommended.

Selection Criteria: Matching the Mill to Saudi Project Requirements

Equipment selection should begin with the final product specification. Important questions include the target D97 or mesh size, the required tonnage per hour, the maximum feed size, the feed moisture, the acceptable contamination level, and the intended end use. A plant producing filler for plastics may require different particle size control from a plant supplying ceramics or glass-related applications. Power supply, available floor space, automation level, and spare parts strategy should also be reviewed at an early stage.

Quality Control, Environmental Compliance, and Local Support

Ultra fine silica powder plants should include routine quality control for particle size distribution, moisture, bulk density, and contamination. Laser particle size analysis helps verify D97 and D50 values, while regular inspection of wear parts helps prevent unexpected iron contamination and maintain stable output. The grinding system should be designed with closed material flow, negative pressure operation, and high-efficiency dust collection. This protects the working environment and reduces product loss.

Shanghai Zenith Machinery Co., Ltd. specializes in the research, development, and production of industrial powder grinding equipment and related devices. For Saudi projects, the company can provide process consultation, equipment selection, layout support, installation guidance, commissioning assistance, and spare parts planning. By combining the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill with proper crushing, classification, and dust collection, Saudi mineral processors can build a reliable and competitive ultra fine silica powder business.

Conclusion: Building a Competitive Silica Powder Business in Saudi Arabia

Saudi Arabia’s industrial diversification and growing demand for high-performance mineral fillers create strong opportunities for ultra fine silica powder production. Success depends on selecting a quartz mill that can handle abrasive material, achieve consistent fineness, control dust, and operate efficiently in local conditions. Shanghai Zenith’s LUM Ultrafine Vertical Mill is recommended for integrated ultrafine grinding with compact layout and stable performance, while the XZM Ultrafine Grinding Mill is recommended for flexible 325-2500 mesh production and varied product grades. With the right process design and equipment configuration, Saudi producers can convert local quartz resources into high-value ultra fine silica powder for domestic and regional markets.
