Diatomite milling line for Nigeria industrial materials

Introduction to Diatomite Processing in Nigeria

Nigeria is endowed with vast natural resources, and diatomite (diatomaceous earth) is one of the promising industrial minerals with significant applications in filtration, construction, agriculture, and chemical industries. However, to unlock its full economic value, raw diatomite must be processed through efficient milling lines to achieve the required fineness and purity. A well-designed diatomite milling line not only enhances product quality but also reduces energy consumption and operational costs. As a leading manufacturer of ore grinding equipment in China, Shanghai Zenith Machinery Co., Ltd. offers state-of-the-art solutions tailored for Nigeria’s industrial materials sector.

Diatomite quarry in Nigeria showing raw mineral deposits

Understanding Diatomite and Its Grinding Requirements

Diatomite is a soft, siliceous sedimentary rock composed of fossilized diatoms. It is typically light in weight, highly porous, and has a low abrasion index. For industrial applications, diatomite is often ground to a fine powder (200 mesh to 1250 mesh or even finer). The grinding process must preserve the porous structure while achieving uniform particle size. Key considerations include low moisture content (below 6%) and avoidance of excessive heat that could damage the amorphous silica structure.

Key Equipment for a Diatomite Milling Line

Based on the characteristics of diatomite and the capacity needs of Nigerian industrial projects, Shanghai Zenith Machinery recommends a combination of primary crushing and fine grinding equipment. The typical flow includes a jaw crusher for size reduction, a bucket elevator for material transport, a hopper with feeder, and a grinding mill as the core unit. For diatomite, the following mills are particularly effective:

1. LUM Ultrafine Vertical Mill – Ideal for Superfine Diatomite Powder

The LUM Ultrafine Vertical Mill integrates grinding, drying, classifying, and conveying in one compact system. It is designed to produce powders with a high content of end-fines, typically D97 5-30 μm (equivalent to 600-2500 mesh). For diatomite, this mill preserves the delicate diatom structure while achieving ultra-high fineness. Its intelligent control system ensures stable operation and easy maintenance. The main machine power ranges from 220 kW to 400 kW, with capacities from 1.6 t/h to 15 t/h depending on the model.

LUM Ultrafine Vertical Mill by Shanghai Zenith for superfine diatomite grinding

LUM Ultrafine Vertical Mill Key Parameters
Model	Main Motor Power (kW)	Capacity (t/h)	D97 Fineness (μm)
LUM1525	220-250	1.6-11.5	5-30
LUM1632	280-315	2.0-13.5	5-30
LUM1836	355-400	2.3-15	5-30

2. XZM Ultrafine Grinding Mill – Versatile Solution for Medium to Fine Grinding

For projects requiring a fineness range of 325-2500 mesh (45-5 μm), the XZM Ultrafine Grinding Mill is a proven choice. It is suitable for soft or medium-hard materials like diatomite with moisture below 6%. The mill features a multi-head classifier for precise particle size control and a large air volume system for efficient material transport. Available models XZM221 and XZM268 offer capacities from 500 kg/h up to 25 t/h, making them suitable for both small-scale and large-scale Nigerian operations.

XZM Ultrafine Grinding Mill Key Parameters
Model	Max Feed Size (mm)	Final Size (mesh)	Output (kg/h)	Main Motor Power (kW)
XZM221	≤20	325-2500	500-4500	75
XZM268	≤20	325-2500	5000-25000	315

Recommended Equipment Configuration for Nigeria

For a typical diatomite milling line in Nigeria with a capacity of 5-10 t/h final product (fineness D97 10-20 μm), we recommend the following configuration:

Primary Jaw Crusher (e.g., PE-400×600) to reduce run-of-mine diatomite to <20 mm.
Bucket Elevator and Vibrating Feeder for controlled feeding.
LUM1632 Ultrafine Vertical Mill as the core grinding unit (capacity 2-13.5 t/h, motor 280-315 kW).
Pulse Dust Collector to ensure environmentally friendly operation.
Product Silo and Packing Machine for final output.

For applications where a coarser product (e.g., 100-400 mesh) is acceptable, the MTW Trapezium Grinding Mill can also be considered due to its high capacity and low energy consumption. The MTW175G model, for instance, processes up to 25 t/h at 1.6-0.045 mm fineness.

Why Choose Shanghai Zenith Machinery?

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with extensive experience in diatomite milling projects across Africa. We specialize in research, development, and production of industrial powder grinding equipment. Our machines feature:

Robust construction with wear-resistant materials, ensuring long service life even for abrasive diatomite.
Intelligent control for automated operation and reduced labor costs.
Eco-friendly design with low noise and dust emissions.
Customized solutions based on local material properties and capacity requirements.

Our after-sales service includes on-site installation supervision, training, and spare parts support. We have delivered numerous grinding lines in Nigeria and understand the local power supply, logistics, and regulatory environment.

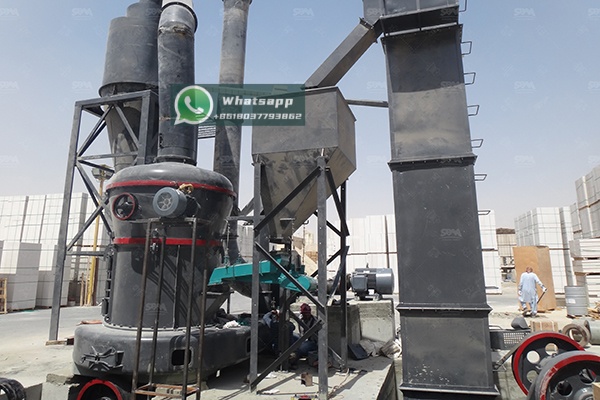

Diatomite grinding plant in Nigeria using Zenith equipment

Conclusion

Nigeria’s diatomite industry has great potential to supply both domestic and export markets. Establishing an efficient milling line is the key to turning raw mineral into high-value industrial powder. By leveraging advanced equipment like the LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill from Shanghai Zenith Machinery, Nigerian processors can achieve superior product quality, operational efficiency, and sustainable growth. Contact our team today to discuss your specific project requirements and receive a tailored quotation.
