Introduction
Bangladesh has a fast-growing construction and building-materials sector, and waterproofing systems are becoming increasingly important in residential, commercial, and infrastructure projects. Among the many mineral additives used in dry-mix waterproof coating powders, bentonite plays a valuable role because of its swelling capacity, thixotropic behavior, adsorption properties, and ability to improve viscosity and suspension stability. To turn raw bentonite into a consistent, high-quality powder for waterproof coatings, producers need reliable grinding equipment that can deliver stable fineness, low contamination, good dust control, and economical operation. This article discusses the application of bentonite in waterproof coating powder in Bangladesh and introduces suitable bentonite mill solutions from Shanghai Zenith Machinery Co., Ltd.
Why Bentonite Matters in Waterproof Coating Powder
Bentonite is a clay mineral composed mainly of montmorillonite. When properly processed and activated, it can absorb water and swell, forming a gel-like structure that improves the rheology of waterproof coating powders. In dry-mix formulations, bentonite can help control sagging, improve workability, increase water retention, and stabilize the fresh coating before curing. It can also contribute to crack resistance and reduce segregation in the powder system. For these reasons, bentonite is widely used in waterproof mortars, cement-based waterproof coatings, tile adhesives, joint fillers, and related construction chemicals.
The performance of bentonite in a waterproof coating powder depends heavily on particle size distribution, moisture content, activation method, and consistency of the final powder. In many construction-chemical applications, a fineness around 325 mesh, approximately 45 microns, is a common target for good dispersion and reactivity. For premium or specialty waterproof coating products, ultra-fine bentonite powder can provide better suspension, smoother texture, and improved film-forming behavior. Therefore, selecting the right bentonite mill is a key decision for producers in Bangladesh who want to supply reliable products to local and regional markets.
Grinding Challenges in Bangladesh
Bentonite processing in Bangladesh faces several practical challenges. First, raw bentonite may vary in moisture, purity, swelling capacity, and hardness depending on the source. Variations in feed material require a grinding system with stable operation and adjustable output fineness. Second, humidity and seasonal rainfall can affect storage and handling, so raw material should be covered, pre-dried when necessary, and fed consistently to the mill. Third, electricity availability and production cost are important concerns for many local manufacturers, which makes energy-efficient grinding equipment highly desirable. Fourth, dust control is essential for worker safety and environmental compliance, especially in urban and industrial areas. Finally, maintenance access and spare-parts planning should be considered so that the production line can operate with minimal downtime.
A well-designed bentonite grinding line typically includes raw ore storage, crushing, drying or natural air-drying, grinding, classification, dust collection, and packing. For waterproof coating powder production, the mill should be able to produce a consistent fine powder with low residue and stable particle size. Equipment with compact structure, reliable classification, and efficient dust collection is particularly suitable for Bangladesh’s growing building-materials industry.
Recommended Zenith Solutions for Bentonite Powder
Shanghai Zenith Machinery Co., Ltd. is an experienced manufacturer of ore grinding equipment in China and has made great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment. For bentonite processing in Bangladesh, two Zenith mills are especially suitable for waterproof coating powder production: the MTW Trapezium Grinding Mill and the XZM Ultrafine Grinding Mill.

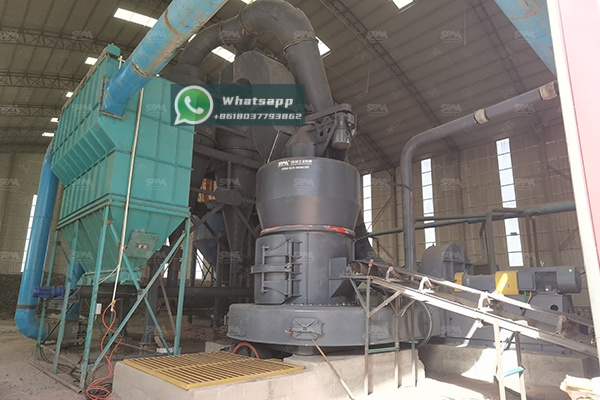

MTW Trapezium Grinding Mill: a reliable workhorse for 45-micron bentonite powder
The MTW Trapezium Grinding Mill is a multiple-patent grinding mill known for its compact structure, long service life, and eco-friendly design. It is suitable for processing materials with a maximum input size of 50 mm and can produce a final product as fine as 0.038 mm. This makes it an excellent choice for producing bentonite powder for cement-based waterproof coatings, waterproof mortars, and other construction-chemical applications. The MTW mill offers stable capacity, convenient maintenance, and good compatibility with dust-collection systems, which is important for powder plants in Bangladesh.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 | 55 |
| MTW110Z | <30 | 1.6-0.045 | 3-10 | 55 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 | 110 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 | 200 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 | 315 |
For a medium-scale bentonite powder plant in Bangladesh, models such as the MTW138Z and MTW175G can be considered according to target capacity and product fineness. For larger production requirements, the MTW215G provides higher output while maintaining the advantages of the MTW series. A typical installation can be configured with a jaw crusher, bucket elevator, feeder, MTW mill, classifier, pulse-jet dust collector, and packing system.
XZM Ultrafine Grinding Mill: for high-performance ultra-fine bentonite powder
For premium waterproof coating powders that require ultra-fine bentonite, the XZM Ultrafine Grinding Mill is an excellent option. It is widely used for superfine powder production and is suitable for grinding soft or medium-hard materials with moisture content below 6 percent. The XZM mill can achieve an output fineness of 325 to 2500 mesh, allowing producers to manufacture high-quality bentonite powders with a high content of fine particles. In waterproof coating formulations, ultra-fine bentonite can improve dispersion, suspension stability, and the smoothness of the final product.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM221 is suitable for pilot plants, small-scale production, or specialty product development, while the XZM268 is designed for larger-scale production of ultra-fine bentonite powder. When using the XZM series, the bentonite feed should be dry and consistent, and the grinding line should be equipped with effective dust collection and product collection systems to maintain a clean working environment.
How to Configure a Bentonite Grinding Line
A complete bentonite grinding line for waterproof coating powder usually starts with raw ore storage and crushing. The crushed material is then dried or air-dried to a suitable moisture level before being fed into the mill. For standard 325-mesh waterproof coating powder, the MTW Trapezium Grinding Mill offers a practical balance of capacity, fineness, and energy consumption. For ultra-fine products, the XZM Ultrafine Grinding Mill can be used to produce powder up to 2500 mesh. The ground powder is then classified, collected by a dust collector, and packed into moisture-proof bags for storage and shipment.
Quality control should include regular testing of fineness, moisture, swelling capacity, viscosity, and residue. These properties directly affect the performance of the final waterproof coating powder. Producers in Bangladesh should also pay attention to raw material storage, because bentonite can absorb moisture from the air and become difficult to grind or feed. A covered storage area and a consistent drying strategy are therefore recommended.
Why Choose Shanghai Zenith Machinery
Shanghai Zenith Machinery Co., Ltd. offers a wide range of industrial powder grinding equipment, including MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. The company’s equipment can be configured for different capacities and fineness requirements, making it suitable for bentonite processors serving the Bangladesh construction-chemical market. With a focus on research, development, and manufacturing, Zenith can help customers select appropriate equipment, design a practical grinding process, and improve the efficiency of their powder production lines.
Conclusion
Bentonite is an important functional additive in waterproof coating powders, and its performance depends on proper grinding and consistent particle size. For Bangladesh-based manufacturers, the MTW Trapezium Grinding Mill is a reliable choice for standard 45-micron bentonite powder, while the XZM Ultrafine Grinding Mill is ideal for high-performance ultra-fine products. By combining suitable grinding equipment with careful raw-material preparation, dust control, and quality testing, producers can supply competitive bentonite powders for the growing waterproof coating market in Bangladesh and beyond.
