Bentonite Grinding Mill for Waterproofing Materials in Kenya
Kenya’s fast-growing construction, infrastructure, and environmental protection sectors are driving strong demand for reliable waterproofing materials. From residential basements and commercial roofs to dams, reservoirs, landfills, and geosynthetic clay liners, bentonite is one of the most versatile natural minerals used to control water movement. When processed to the right fineness, sodium bentonite can swell many times its dry volume and form a low-permeability barrier that blocks moisture. For Kenyan manufacturers and project suppliers, selecting an efficient bentonite grinding mill is therefore a critical step in producing high-performance waterproofing products.
Why Bentonite Is Important for Waterproofing
Bentonite is a clay mineral dominated by montmorillonite. Sodium bentonite has exceptional swelling and gel-forming properties. When exposed to water, it absorbs moisture into its layered crystal structure and expands, creating a dense, impermeable mass. This behavior makes it valuable in:
- Geosynthetic clay liners for landfills, ponds, and canals
- Waterproofing membranes and coatings for roofs, basements, and tunnels
- Sealants, grouts, and joint fillers for concrete structures
- Drilling mud and soil stabilization, supporting water-tight construction works
- Environmental liners for waste containment and water reservoirs
In Kenya, where water scarcity and soil erosion are serious concerns, bentonite-based waterproofing helps protect valuable water resources and extend the service life of infrastructure. However, raw bentonite cannot be used directly in most advanced waterproofing formulations. It must be crushed, dried, ground, and classified to a consistent particle size.
Grinding Requirements for Bentonite in Waterproofing Applications
The performance of bentonite in waterproofing depends heavily on particle size distribution, purity, moisture content, and activation. For many waterproofing materials in Kenya, manufacturers require fine powders between 200 mesh and 325 mesh, while high-performance coatings and specialty sealants may need 800 mesh to 1250 mesh or finer. A good bentonite grinding mill must achieve:
- Stable output fineness with adjustable settings
- High capacity per unit of energy consumed
- Effective drying or compatibility with pre-dried feed
- Low dust emission and environmental compliance
- Reliable wear parts and easy maintenance
- Consistent product quality for batch-to-batch formulation
Because bentonite can be sticky and abrasive depending on moisture and impurities, the grinding system must be robust. Shanghai Zenith Machinery Co., Ltd. has extensive experience in industrial powder grinding and offers several mills suitable for bentonite processing in Kenya.
Recommended Product 1: MTW Trapezium Grinding Mill
For medium to large-scale bentonite powder production, the MTW Trapezium Grinding Mill is an excellent choice. It combines patented technology, a compact structure, long service life, and eco-friendly operation. The mill can process feed sizes up to 50 mm and produce final products as fine as 0.038 mm, which corresponds to approximately 400 mesh. This fineness range is ideal for many waterproofing additives, bentonite-based coatings, and geosynthetic clay liner powders.
Key models include:
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
For a Kenyan bentonite processing plant serving the waterproofing market, the MTW175G or MTW215G can provide strong capacity and stable fineness. The system can be equipped with an elevator, feeder, classifier, dust collector, and packaging unit to create a complete production line. Its low noise and dust control features are important for operations near urban construction markets.

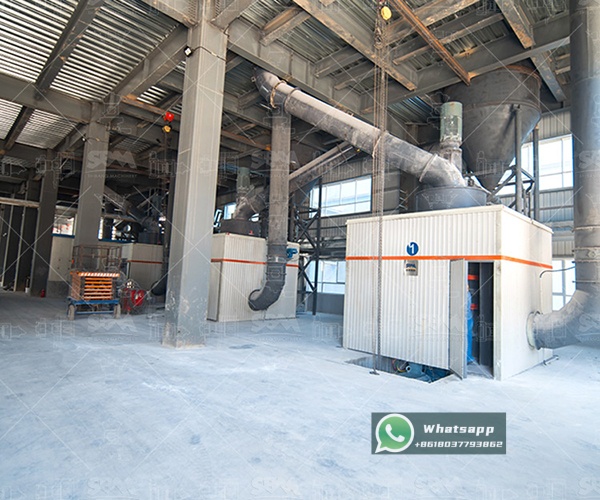

Recommended Product 2: XZM Ultrafine Grinding Mill
When the waterproofing application demands ultrafine bentonite powder, such as advanced sealants, high-performance waterproof coatings, or specialty geosynthetic products, the XZM Ultrafine Grinding Mill is a strong solution. It is designed for superfine powder production and can grind soft or medium-hard materials with moisture content below 6%. The XZM series achieves an output fineness of 325 to 2500 mesh, giving manufacturers precise control over particle size.
| Model | Working Diameter (mm) | Max Feed Size (mm) | Final Size (mesh) | Output (kg/h) | Main Motor (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM221 is suitable for small to medium Kenyan enterprises entering the waterproofing additives market, while the XZM268 supports larger production targets. With ultrafine bentonite, manufacturers can improve dispersion, reactivity, and film-forming quality in waterproofing formulations.

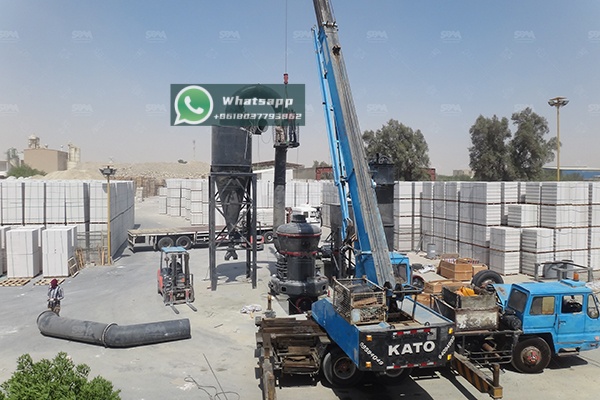

Complete Bentonite Grinding Solution for Kenya
Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China and has made great achievements in ultra-fine powder grinding. We specialize in research, development, and production of industrial powder grinding equipment, including MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For bentonite waterproofing materials in Kenya, we can configure a complete line from crushing and drying to grinding, classification, dust collection, and packing.
Kenyan processors also benefit from our global service network, remote technical support, spare parts planning, and training. Whether you are setting up a new bentonite powder plant near Nairobi, Mombasa, or another industrial hub, or upgrading an existing line, our engineers can recommend the right model based on feed size, moisture, target fineness, capacity, and budget.
Choosing the Right Mill for Your Kenya Project
To select the best bentonite grinding mill, consider the following:
- Target fineness: 200-325 mesh for general waterproofing fillers; 800-2500 mesh for advanced coatings and sealants.
- Capacity: Small projects may use MTW110 or XZM221; large plants can use MTW175G, MTW215G, or XZM268.
- Moisture: Ensure feed moisture is controlled. XZM works best below 6% moisture; MTW can be integrated with drying when needed.
- Dust and environmental rules: Choose enclosed systems with pulse dust collectors to meet Kenyan workplace and environmental standards.
- After-sales support: Prioritize a supplier with proven grinding experience and available spare parts.
Conclusion
Bentonite is a key material for waterproofing in Kenya’s construction, water management, and environmental protection projects. Producing the right powder requires a reliable, efficient, and fineness-adjustable grinding mill. Shanghai Zenith Machinery Co., Ltd. offers the MTW Trapezium Grinding Mill and XZM Ultrafine Grinding Mill as two proven solutions for bentonite processing. With suitable capacity, precise classification, and strong service support, these mills can help Kenyan manufacturers produce high-quality waterproofing materials and seize the growing market opportunities.
